The fifth generation mobile communication technology (English: 5th generation mobile networks or 5th generation wireless systems, 5th generation, referred to as 5G or 5G Technology) is the latest generation of cellular mobile communication technology, which is also the extension of 4G (LTE-A, WiMAX), 3G (UMTS, LTE) and 2G (GSM) systems. 5G's performance objectives are high data rate, reduced latency, energy saving, cost reduction, increased system capacity and large-scale device connectivity. The first phase of the 5G specification in release-15 was to accommodate early commercial deployments. The second phase of release-16 will be completed in April 2020 and submitted to the International Telecommunication Union (ITU) as a candidate for imt-2020 technology. ITU imt-2020 requires a speed of up to 20 Gbit / s, which can realize wide channel bandwidth and large capacity MIMO.
With a long-term investment in the research and development of optical transmission products, the new generation OTN-2800 series of large bandwidth optical intelligent transmission platform emerged after the previous generation of DWDM XYT-1600 series transmission products.
Figure 1 OTN-2800 series product chassis
OTN-2800 series products carry NMS-3000 network element management software. Based on the B/S architecture, the software can create the topology of subnets, network elements and fiber cables, configure the network element data, check or modify the board parameters, and then manage the subnets, network elements or cables through NMS-3000.

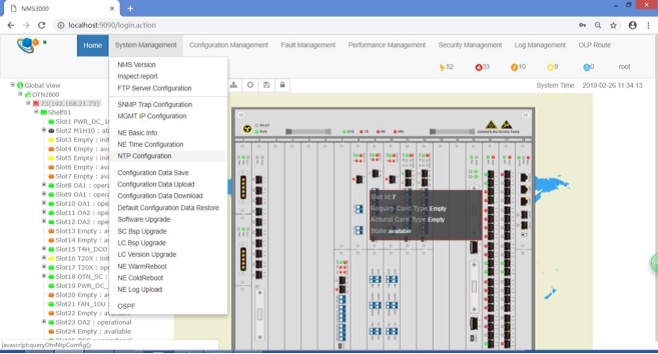

Figure 2 otn-2800-NMS-3000 network management interface
The network element management software of SharetopNMS-3000 has four functions: performance management, fault management, configuration management and security management. It also adopts graphical user interface, which is flexible in operation and perfect in function. Through NMS-3000 network management system, network service quality can be improved, maintenance cost can be reduced, and reasonable use of network resources can be guaranteed.

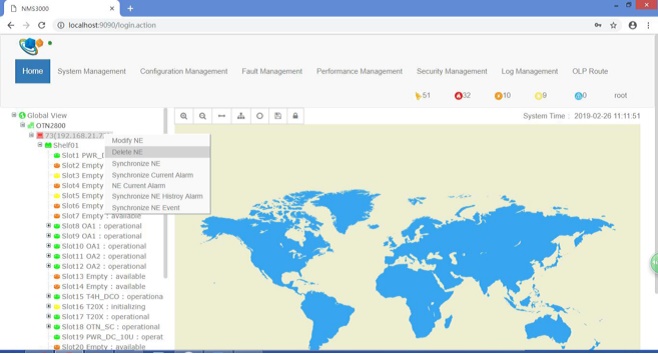

Figure 3 OTN-2800-NMS-3000 network management interface
With the popularity of 5G terminal services, large-scale data traffic demand is increasingly widespread, 5G bearing network construction is imperative, Sharetop OTN-2800 intelligent optical transmission platform integrates with DWDM technology, innovative development of ROADM 9-d optical cross, business board card complete electrical cross, line side single channel can support 1G / 10G / 100G / 200G / 600G and other multi-channel cross multiplexing, business side card supports SDH (synchronous digital hierarchy) service, SONET (synchronous optical network) service, Ethernet service, San (storage area network) storage service, OTN (optical transport network) service and other access service types.
|
Service type |
Service type |
Service rate |
|
SDH service POS service ATM service SONET service |
STM-1/ OC-3 |
155.52 Mbit/s |
|
STM-4/ OC-12 |
622.08 Mbit/s |
|
|
STM-16/ OC-48 |
2.5 Gbit/s |
|
|
STM-64/ OC-192 |
9.95 Gbit/s |
|
|
Ethernet service |
FE |
100 Mbit/s |
|
GE |
1.25 Gbit/s |
|
|
10G WAN |
9.95 Gbit/s |
|
|
10G LAN |
10.31 Gbit/s |
|
|
40GE |
41.25 Gbit/s |
|
|
100GE |
103.125 Gbit/s |
|
|
SAN service |
FC8G |
8.5 Gbit/s |
|
OTN service |
OTU1 |
2.67 Gbit/s |
|
OTU2 |
10.71 Gbit/s |
|
|
OTU2e |
11.10 Gbit/s |
|
|
OTU3 |
43.02 Gbit/s |
|
|
OTU4 |
111.81 Gbit/s |
Table 1 list of business types
Table 2 shows the maximum service access capacity corresponding to the Sharetop OTN-2800 service board and the frame.
|
Service type |
Maximum number of access services |
|||
|
（OTN-2800-I） |
（OTN-2800-II） |
（OTN-2800-V） |
（OTN-2800-X） |
|
|
STM-1/OC-3 |
16 |
32 |
80 |
256 |
|
STM-4/OC-12 |
16 |
32 |
80 |
256 |
|
STM-16/OC-48 |
8 |
16 |
40 |
128 |
|
STM-64/OC-192 |
20 |
40 |
100 |
320 |
|
GE |
10 |
20 |
50 |
160 |
|
10G LAN/WAN |
20 |
40 |
100 |
320 |
|
40GE |
4 |
8 |
20 |
64 |
|
100GE |
2 |
4 |
10 |
32 |
|
OTU2 |
20 |
40 |
100 |
320 |
|
OTU2e |
20 |
40 |
100 |
320 |
|
OTU3 |
4 |
8 |
20 |
64 |
|
OTU4 |
2 |
4 |
10 |
32 |
Table 2 service capacity access list
Sharetop OTN-2800 series supports the following multiple mapping methods, so that it can flexibly select the corresponding mapping methods when different manufacturers carry out business interconnection.
SharetopOTN-2800 series can provide equipment level, network level and transmission ring network protection, such as power board 1+1 protection, main control board 1+1 protection, optical channel wavelength 1+1 protection, optical channel route 1+1 protection, optical line 1+1 protection, optical reuse section 1+1 protection, ODUk SNC protection, ODUk ring network protection to keep 5G carrier network unimpeded.
In the 5G era, the massive bandwidth transmission capacity is expanded. The first choice is Sharetop OTN-2800, which can realize large capacity business transmission bandwidth, support flexible optical layer scheduling and electrical layer scheduling, and has the characteristics of high integration, high reliability and multi services, so that your work and life are free of worries! Adhering to the company's philosophy of "scientific and technological innovation, win-win cooperation, integrity and efficiency, first-class service", and adhering to the company's tenet of "scientific and technological innovation, service first", Sharetop has been forging ahead, exploring the unknown, seeking common development, and striving to become an outstanding fiber transmission equipment manufacturer in the world.
