Due to limit of fiber optic resources, WDM (wavelength division multiplexer) are widely used nowadays. Especially the data centers need to expand their network in accordance with increasing service demand,but the traditional WDM are often restricted by telecom carriers.
Integrated WDM equipment is specially designed for DCI optical transmission network,its advantage is: clear transmission, low latency,high capacity,low consumption,easy operation,reliability and stability. Maximum service 1.2T is supported. Data rates 10G/100G/200G,applicable to SDH,SAN,SONET,ETHERNET,OT,DCI etc. It is innovative solution to tight fiber resource and high dissipation optical route.

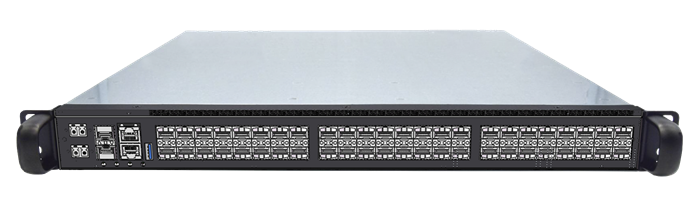

XYT-1700：series
integrated WDM equipment
u Support 10G *48CH or 100G*12CH converged fiber optic transmission.
u Ultra high integration, front and rear ventilation,1+1 protection, physical terminal isolation,clear transmission.
u Support multi inputs:8GFC/10GE/100G Base-SR4/CWDM4/LR4/PSM4/OTU4
u Support SNMP unified network management platform,CLIã€Webã€NetRiver.
u Support CDR,optimize output, DDM, Automatica switch off without signal.
u Support shut down terminal by software
|
Description |
Specification |
|
|
Max capacity |
12*100G bilateral 48*10G bilateral |
|
|
Wavelength |
DWDM：C-Band（100GHZ or 50GHZ） |
|
|
Service type |
SDHã€SANã€SONETã€ETHERNETã€OTN |
|
|
Transmission reach |
10km,40km,80km optional |
|
|
Network protection |
1+1 protection |
|
|
Network management |
CDR(DDM),Automatic switch off without signal,unilateral or bilateral service, in-band and out-of-band network management |
|
|
network management type |
CLI ã€NetRiverã€Web |
|
|
Dimension |
482.6 （W）× 44（H）× 600（D）（mm） |
|
|
Ambient
|
Operating case temperature |
-10℃~+70℃ |
|
Storage temperature |
-40℃ ~ 80℃ |
|
|
Relative humidity |
5% ~ 95% non-frost |
|
|
Safety and EMC |
Compliant with FCCã€ULã€CEã€TUVã€CSA |
|
|
Power supply |
AC 90V~264V 50/60HZ DC -36V~60V |
|
|
Power consumption |
<200W |
|
Its layout is similar as optical switch,embedding multi interface cards,its operation is more convenient-only need to be connected to switch via generic optical transceivers (WDM transceivers not needed), waivering the complicated WDM connection procedures. It is very popular after the lauch.
