The SOA amplifier board is a semiconductor optical amplifier module designed and developed to solve the O-band optical signal amplification problem. It is compatible with different speeds of 100G/40G/10G service signals. The gain bandwidth ranges from 1230nm to 1360nm. At the same time, four-way service signal amplification can be realized, which can be used in various application scenarios such as an information security system or a data transmission system.
Figure 1 SOA fiber amplifier
Features:
Supports O-band optical amplification.
Support 100G/40G/10G speed.
Supports maximum saturated output power +10dB and minimum input power of -20dB.
Supports SNMP-based unified network management platform, network management mode TELNET, WEB, NetRiver (graphical interface).
Monitorable: pump drive current, pump output power, pump switch, pump temperature, input optical power, output optical power, module temperature.
Support can set the pump switch, the input and output optical power can be adjusted.
Product classic networking application
Fiber optic XYT1600 series optical amplifying equipment is widely used in data room interconnection, metropolitan area network, access network and other networks. The device is connected in series on the service line to efficiently re-amplify, re-time and re-shape the signal, completely transparent to the service, and supports multiple rates from 100Mbps to 100Gbps.
Multi-channel amplification is an optical amplifier device (EDFA) connected in series in a service line, which can uniformly amplify multiple wavelength service optical signals in a core fiber.
Figure 2 amplifier application diagram
Single-channel amplification is a relay amplification device (OEO) connected in series in a link, which is widely used in fiber-optic networks to amplify single-channel optical signals.

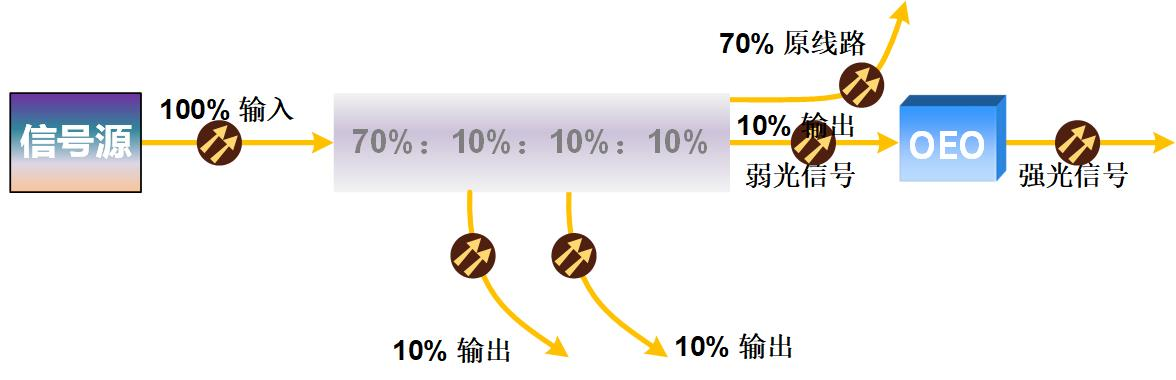

图3 OEO放大应用图
