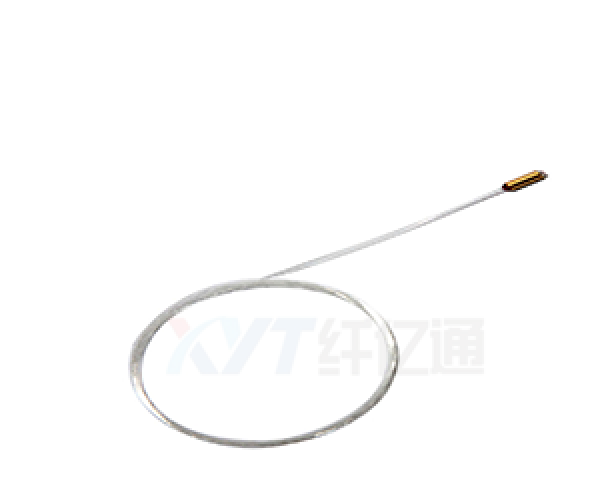

Optical fiber collimator
- Product Features -
Wide bandwidth
Low insertion loss
High channel isolation
Exceptional reliability and stability
- Product Specification -
Optical amplifiers
CATV
WDM system
CATV system
Specification (SM single fiber collimator)
unit | P Grade | |
nm | 1310/1550 | |
≤0.2 | ||
Max.Insertion Loss(λc at 23℃) at 5mm | dB | ≤0.25 |
Return Loss(at 23℃) | dB | ＞60 |
Lens Type | - | C-Lens |
Working Distance(mm)(at 23℃) | mm | 5 or specify |
Beam diameter | mm | 0.35 |
Power Handling | mW | 500 |
Fiber Type | - | SM-28E |
Fiber length | M | 2.0 |
Bandwidth(nm) | - | ±30 |
Operation Temperature | -20 to +70 | |
Storage Temperature | ℃ | -40 to +85 |
Package Dimensions | mm | 3.20x10mm or 1.6x10mm gold plated SS tube 2.8 or 2.7 x8mm glass tube |
Note :IL is 0.15dB higher and RL is 5dB lower for each connector added
Specification(SM dual fiber collimator)
Parameters | unit | P Grade |
Center wavelength(λc ) | nm | 1310nm |
Typ.Insertion Loss(λc at 23℃) at 5mm | dB | ≤0.22 |
Max.Insertion Loss(λc at 23℃) at 5mm | dB | ≤0.25 |
Return Loss(at 23℃) | dB | ＞60 |
Lens Type | - | C-Lens |
Working Distance(mm)(at 23℃) | mm | 5 or specify |
Beam diameter | mm | 0.35 |
Power Handling | mW | 500 |
Fiber Type | - | SM-28E |
Fiber length | M | 2.0 |
Bandwidth(nm) | - | ±30 |
Operation Temperature | ℃ | -20 to +70 |
Storage Temperature | ℃ | -40 to +85 |
Package Dimensions | mm | 3.20x10mm or 1.6x10mm gold plated SS tube 2.8 or 2.7 x8mm glass tube |
Ordering Information(OC-1-1-15-P-1-1=0)
Product | Port | Package | Wavelength | Grade | Pigtail Jacket | Fiber Length | Connector |
Optic Collimator | 1=Single fiber 2=dual fiber | 1=Gold Plated 2=Glass Tube | 15=1550nm 13=1310nm Or other | P=P Grade A=A Grade | 1=250um bare fiber 2=900um | 1=0.5m 2=2m 3=3m | 0=None 1=FC/APC 2=FC/PC 3=SC/APC 4=SC/PC 5=LC/PC |
|
