- Products description -

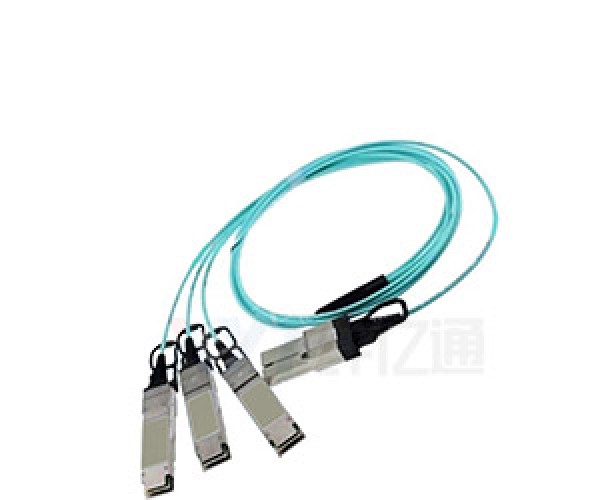

The SFP+cable assemblies are high performance,cost effective I/O solutions for 120Gb Ethernet and 120G fibre Channel applications.SFP+copper modules allow hardware manufactures to achieve high port density,configurability and utilization at a very low cast and reduced power budget.The high speed cable assemblies meet and exceed Gigabit Ethernet and Fibre Channel industry standard requirements for performance and reliability.
- Product Features -
1．Support for multi-gigabit data rates up to 120Gbps
2．Data rates backward compatible to 1Gbps
3．Support for 1x,2x,4x and 8x Fibre Channel data rates
4．Hot-pluggable SFP 20PIN footprint
5．I/O Connector designed for high speed differential signal applications
6．Improved Pluggable FormFactor(IPF)compliant for enhanced EMI/EMC performance
7．Low Power Consumption<0.5W
8．Power Supply:+3.3V
9．Compatible to SFP+MSA
10．Temperature Range:0~70 °C
11．RoHS Compatible
- Product Specification -
1．High capacity I/O in Storage Area Networks,Network Attached Storage,and Storage Servers
2．Switched fabric I/O such as ultra high bandwidth switches and routers
3．Data center cabling infrastructure
4．High density connections between networking equipment
Table 1-Optical and Electrical Characteristics
Parameter | Symbol | Min | Typical | Max | Unit |
Storage Ambient Temperature | -40 | +85 | °C | ||
Operating Case Temperature | Tc | 0 | +70 | °C | |
Power Supply Voltage | VCC3 | 3.14 | 3.3 | 3.47 | V |
Power Dissipation | PD | 1.5 | W |
Systems
Performance | 120 Gpbs(per channel)line speed,full duplex Bit error rate:better than 10E-12 |
Media | Hot-pluggable,industry-standard Small Form-Factor Pluggable(QSFP+)copper cable,available up to 10m |
Operating parameters | Supply voltage:3.3V Power consumption(per end):max 1.5W |
|
Products damaged due to human or non-use of other causes of improper,we promises one year warranty and lifetime maintenance,but the unauthorized disassembly equipment caused damage is not covered under warranty and returned within range. |
|
Under normal use,if there are product quality problems,or not work normally,we provide free repair or replacement service within one year;Within three years more than one year,we provide to collect the material cost,maintenance free. Repair warranty period of three years from the freight borne by each of the parties.After three years of warranty,the material cost,maintenance,freight(refers to the product of the two-way shipping to and from)shall be borne by the user. |
|
We promise that the product we provide can meet the performance requirements of users , and it is supplied by the user's sample request. |
