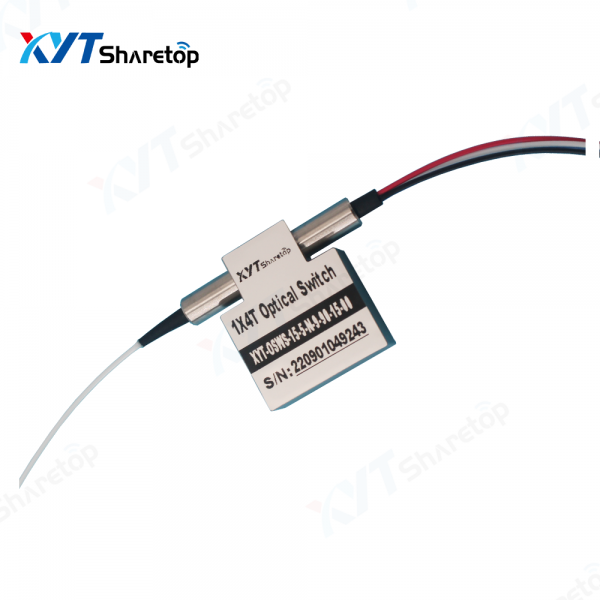

1x4 Micro Optic Switch

Category:XYT-OSW-1x4-55-5N-01-B-15-0
Code:Micro Switch

 - Products description -


    The optical switch of Shenzhen Sharetop Technology Co., Ltd. has one or more optional transmission ports An optical device whose function is to convert or logically operate optical signals in optical transmission lines or integrated optical paths Optical switch, optical amplifier and optical signal storage are all optical device materials. The optical switch can be operated in picoseconds (10 ^ - 12 seconds). At present, it is based on lithium niobate and gallium aluminum arsenic compounds, which are derived from the electronic industry. Some new materials, such as liquid crystal and polyacetylene, have better optical effects than lithium niobate.



 - Product Features -


1. Low insertion loss

2. Wide wavelength range

3. Low crosstalk

4. High stability and reliability

5. No epoxy optical path

6. Locking and non locking


 - Product Specification -


1. Laboratory research and development

2. System monitoring

3. Optical add drop multiplexer

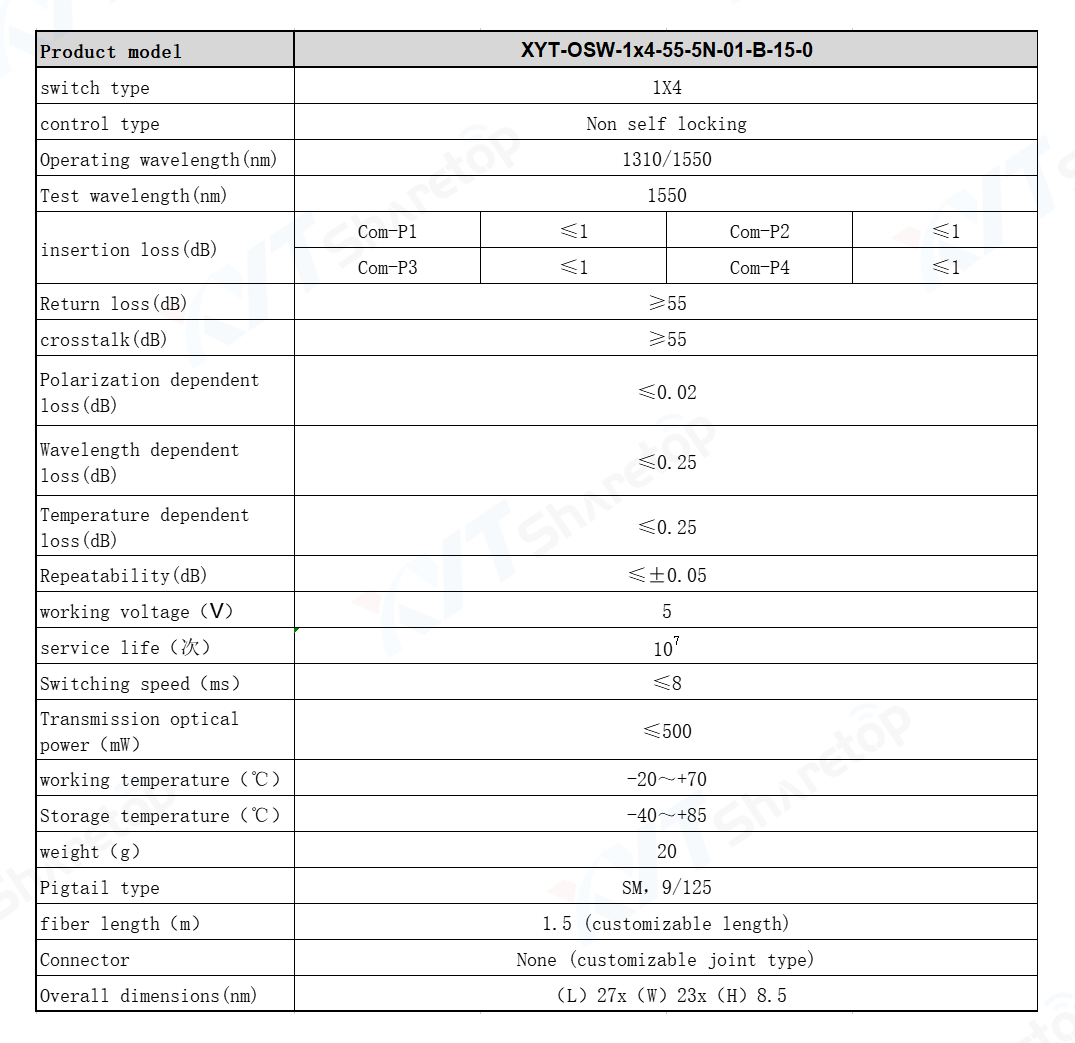

Specification

Sale service

Products damaged due to human or non-use of other causes of improper,we promises one year warranty and lifetime maintenance,but the unauthorized disassembly equipment caused damage is not covered under warranty and returned within range.
Under normal use,if there are product quality problems,or not work normally,we provide free repair or replacement service within one year;Within three years more than one year,we provide to collect the material cost,maintenance free.
Repair warranty period of three years from the freight borne by each of the parties.After three years of warranty,the material cost,maintenance,freight(refers to the product of the two-way shipping to and from)shall be borne by the user.
We promise that the product we provide can meet the performance requirements of users , and it is supplied by the user's sample request.
