- Products description -

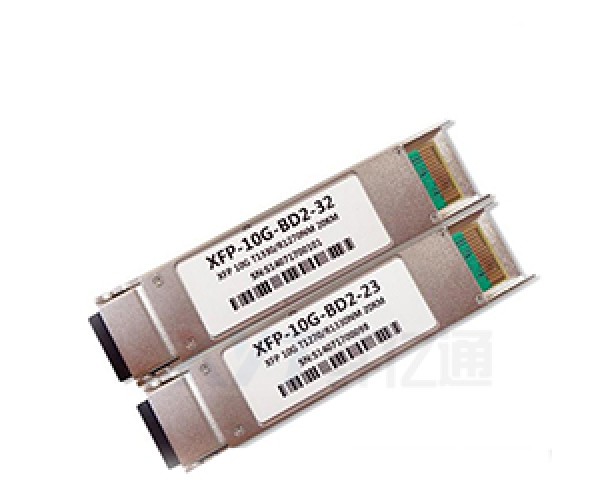

Small Form Factor 10Gb/s(XFP)transceivers are compliant with the current XFP Multi-Source Agreement(MSA)Specification.They comply with 10-Gigabit Ethernet 10GBASE-LR/LW per IEEE 802.3ae and 10G Fiber Channel.Digital diagnostics functions are availablevia a 2-wire serial interface,as specified in the XFP MSA.The transceiver is RoHS compliant and leads free per Directive 2002/95/EC3
- Product Features -
1.Hot-pluggable XFP footprint
2.Supports 9.95Gb/s to 11.3Gb/s
3.CWDM DFB Laser and PIN receiver
4.RoHS-6 Compliant(lead-free)
5.Power dissipation<2.0W
6.Temperature range:0°C to 70°C
7.Single power supply:3.3V
8.Maximum link length of 10km
9.Full Duplex LC connector
10.No Reference Clock required
11.Built-in digital diagnostic functions
12.Standard bail release mechanism
- Product Specification -
10GBASE-LR/LW 10G Ethernet
10G Fiber Channel
SONET OC-192 SR-1&SDH STM I-64.1
Table 1-Optical and Electrical Characteristics
Parameter | Symbol | Min | Typical | Max | Unit | Notes | ||
Transmitter | ||||||||
Centre Wavelength | λc | 1260 | 1310 | 1360 | nm | |||
Spectral Width(RMS) | ?λ | 4 | nm | |||||
Average Output Power | Pout | -9 | -3 | dBm | 1 | |||
Extinction Ratio | ER | 9 | dB | |||||
Optical Rise/Fall Time(20%~80%) | tr/tf | 0.26 | ns | |||||
Data Input Swing Differential | VIN | 400 | 1800 | mV | 2 | |||
Input Differential Impedance | ZIN | 90 | 100 | 110 | Ω | |||
TX Disable | Disable | 2 | Vcc | V | ||||
Enable | 0 | 0.8 | V | |||||
TX Fault | Fault | 2 | Vcc | V | ||||
Normal | 0 | 0.8 | V | |||||
Receiver | ||||||||
Centre Wavelength | λc | 1260 | 1580 | nm | ||||
Receiver Sensitivity | -23 | dBm | 3 | |||||
Receiver Overload | -3 | dBm | 3 | |||||
LOS De-Assert | LOSD | -24 | dBm | |||||
LOS Assert | LOSA | -35 | dBm | |||||
LOS Hysteresis | 1 | 4 | dB | |||||
Data Output Swing Differential | Vout | 400 | 1800 | mV | 4 | |||
LOS | High | 2 | Vcc | V | ||||
Low | 0.8 | V | ||||||
NOTE:
1.The optical power is launched into SMF.
2.PECL input,internally AC-coupled and terminated.
3.Measured with a PRBS 27-1 test pattern@1250Mbps,BER ≤1×10-12.
4.Internally AC-coupled.
Parameter
Type | Rate | Wavelength | Transmition distance | Transmitter power | Receiver sensitivity | Interface | Operating temperature |
SFP | 10G | 1270/1330nm | 10M | -1~-5 | ≤-14.4 | LC | 0-70℃ |
10G | 1270/1330nm | 40KM | 0~5 | ≤-15.8 | LC | 0-70℃ | |
10G | 1270/1330nm | 60KM | 0~5 | ≤-20 | LC | 0-70℃ |
|
