- Products description -

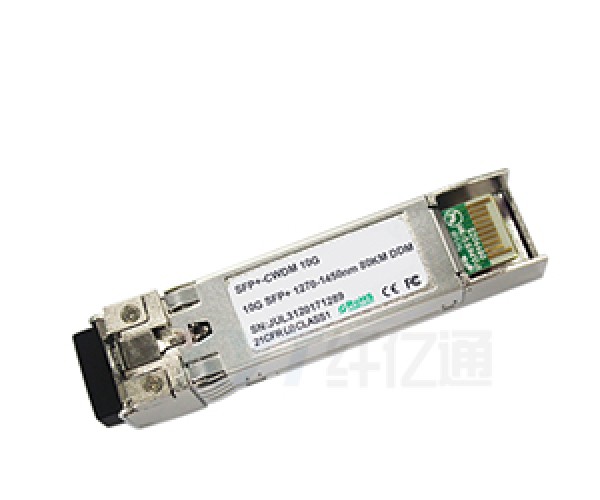

Description The SFP transceivers are high performance,cost effective modules supporting multi-rate of 10 Gbps and 40km transmission distance with SMF.The transceiver consists of three sections:a FP laser transmitter,a PIN photodiode integrated with a trans-impedance preamplifier(TIA)and MCU control unit.All modules satisfy class I laser safety requirements.The transceivers are compatible with SFP Multi-Source Agreement(MSA)and SFF-8472.For further information,please refer to SFP MSA.
- Product Features -
1.10Gb/s serial optical interface compliant to 802.3ae 10GBASE-ER
2.Uncooled CWDM DFB Laser:1270nm to 1450nm
3.Up to 40km transmission.
4.Metal enclosure,for lower EMI.
5.Electrical interface compliant to SFF-8431.
6.2-wire interface for management.
7.Specifications compliant with SFF-8472.
8.Single 3.3V power supply.
9.Case operating temperature range:-5°C to 70°C.
10.Class 1 Laser International Safety Standard IEC-60825.
- Product Specification -
Gigabit Ethernet
Fiber Channel
WDM Application
Switch to Switch interface
Switch backplane applications
ATM
SONT/SDH/PDH
FDDI
Other optical transmission system
Table 1-Optical and Electrical Characteristics
Parameter | Symbol | Min | Typical | Max | Unit | Notes | ||
Transmitter | ||||||||
Centre Wavelength | λc | 1260 | 1310 | 1360 | nm | |||
Spectral Width(RMS) | ?λ | 4 | nm | |||||
Average Output Power | Pout | -9 | -3 | dBm | 1 | |||
Extinction Ratio | ER | 9 | dB | |||||
Optical Rise/Fall Time(20%~80%) | tr/tf | 0.26 | ns | |||||
Data Input Swing Differential | VIN | 400 | 1800 | mV | 2 | |||
Input Differential Impedance | ZIN | 90 | 100 | 110 | Ω | |||
TX Disable | Disable | 2 | Vcc | V | ||||
Enable | 0 | 0.8 | V | |||||
TX Fault | Fault | 2 | Vcc | V | ||||
Normal | 0 | 0.8 | V | |||||
Receiver | ||||||||
Centre Wavelength | λc | 1260 | 1580 | nm | ||||
Receiver Sensitivity | -23 | dBm | 3 | |||||
Receiver Overload | -3 | dBm | 3 | |||||
LOS De-Assert | LOSD | -24 | dBm | |||||
LOS Assert | LOSA | -35 | dBm | |||||
LOS Hysteresis | 1 | 4 | dB | |||||
Data Output Swing Differential | Vout | 400 | 1800 | mV | 4 | |||
LOS | High | 2 | Vcc | V | ||||
Low | 0.8 | V | ||||||
NOTE:
1.The optical power is launched into SMF.
2.PECL input,internally AC-coupled and terminated.
3.Measured with a PRBS 27-1 test pattern@1250Mbps,BER ≤1×10-12.
4.Internally AC-coupled.
Ordering information
Type | Rate | Wavelength | Transmission Distance | Transmitter Power | Receiver sensitivity | Interface | Operating temperature |
CWDM SFP+ | 10G | 1270-1450nm | 10KM | -1~-5 | ≤-14.4 | LC | 0-70℃ |
10G | 1470-1610nm | 40KM | -1~-3 | ≤-15.8 | LC | 0-70℃ | |
10G | 1470-1610nm | 80KM | 0~-4 | ≤-23 | LC | 0-70℃ | |
10G | C20-C60 | 40KM | -1-3 | ≤-15.8 | LC | 0-70℃ | |
10G | C20-C60 | 80KM | 0-4 | ≤-23 | LC | 0-70℃ |
Ordering information
Part No. | Form Factor | Data Rate | Distance | Wavelength | Connector | DDM |
XYT-00854G-S5x(D) | SFP | 4.25G | 500m | 850nm | LC | Y |
XYT-00314G-L1xD | SFP | 4.25G | 10km | 1310nm | LC | Y |
XYT-00314G-L3xD | SFP | 4.25G | 30km | 1310nm | LC | Y |
XYT-00554G-L4XD | SFP | 4.25G | 40km | 1550nm | LC | Y |
XYT-003148-L2x(D) | SFP | 2.5G | 20km | 1310nm | LC | Y |
XYT-008548-S3x(D) | SFP | 2.5G | 300m | 850nm | LC | Y |
XYT-005548-L8x(D) | SFP | 2.5G | 80km | 1550nm | LC | Y |
XYT-003148-L4x(D) | SFP | 2.5G | 40km | 1310nm | LC | Y |
XYT-005548-12CD | SFP | 2.5G | 120km | 1550nm | LC | Y |
XYT-008524-S5x(D) | SFP | 1.25G | 550m | 850nm | LC | Y |
XYT-003124-L2x(D) | SFP | 1.25G | 20km | 1310nm | LC | Y |
XYT-005524-L8C(D) | SFP | 1.25G | 80km | 1550nm | LC | Y |
XYT-003124-L4x(D) | SFP | 1.25G | 40km | 1310nm | LC | Y |
XYT-005524-12C(D) | SFP | 1.25G | 120km | 1550nm | LC | Y |
XYT-003112-L2x(D) | SFP | 622M | 20km | 1310nm | LC | Y |
XYT-003112-L4x(D) | SFP | 622M | 40km | 1310nm | LC | Y |
XYT-008503-02C(D) | SFP | 155M | 2km | 850nm | LC | Y |
XYT-003112-L8x(D) | SFP | 622M | 80km | 1550nm | LC | Y |
XYT-005503-L8CD | SFP | 155M | 80km | 1310nm | LC | Y |
XYT-003103-L2C(D) | SFP | 155M | 20km | 1310nm | LC | Y |
XYT-003103-L4C(D) | SFP | 155M | 40km | 1310nm | LC | Y |
XYT-005503-12CD | SFP | 155M | 120km | 1550nm | LC | Y |
|
Products damaged due to human or non-use of other causes of improper,we promises one year warranty and lifetime maintenance,but the unauthorized disassembly equipment caused damage is not covered under warranty and returned within range. |
|
Under normal use,if there are product quality problems,or not work normally,we provide free repair or replacement service within one year;Within three years more than one year,we provide to collect the material cost,maintenance free. Repair warranty period of three years from the freight borne by each of the parties.After three years of warranty,the material cost,maintenance,freight(refers to the product of the two-way shipping to and from)shall be borne by the user. |
|
We promise that the product we provide can meet the performance requirements of users , and it is supplied by the user's sample request. |
