- Products description -

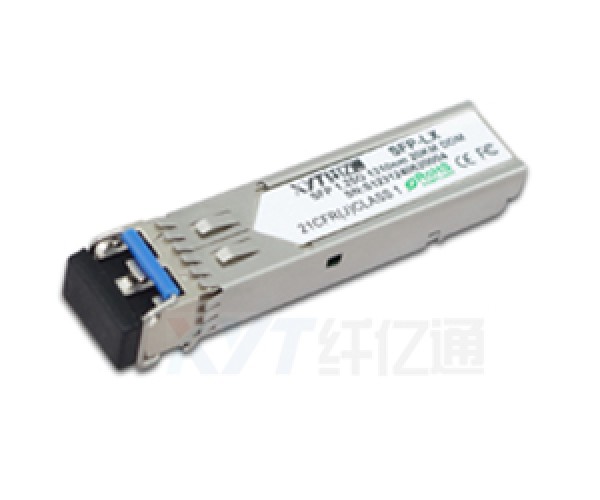

SFP-622M-1310nm-40km-MM-LC-DDM Small Form Factor Pluggable (SFP) transceivers are compatible with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA). The transceiver consists of four sections: the LD driver, the limiting amplifier, the VCSEL laser and the PIN photo-detector . The module data link up to 550m in 50/125um multi mode fiber.
The optical output can be disabled by a TTL logic high-level input of Tx Disable. Tx Fault is provided to indicate that degradation of the laser. Loss of signal (LOS) output is provided to indicate the loss of an input optical signal of receiver or the link status with partner.
- Product Features -
Up to 622M data links
VCSEL laser transmitter and PIN photo-detector
Up to 40km on 50/125µm MMF
Hot-pluggable SFP footprint
Duplex LC/UPC type pluggable optical interface
Low power dissipation
Metal enclosure, for lower EMI
RoHS compliant and lead-free
Single +3.3V power supply
Compliant with SFF-8472
Case operating temperature
Commercial:0°C to +70°C
Extended:-10°C to +80°C
Industrial:-40°C to +85°C
- Product Specification -
Switch to Switch Interface
Fast Ethernet
Switched Backplane Applications
Router/Server Interface
Other Optical Links
Specification of Transmitter
Parameter | Symbol | Min. | Typ. | Max. | Unit | Note |
Average Output Power | POUT | -9 | -3 | dBm | Note (1) | |
Extinction Ratio | ER | 8.2 | dB | |||
Center Wavelength | λC | 830 | 850 | 860 | nm | VCSEL Laser |
Spectrum Bandwidth(RMS) | σ | 1 | nm | |||
Transmitter OFF Output Power | POff | -45 | dBm | |||
Differential Line Input Impedance | RIN | 90 | 100 | 110 | Ohm | |
Output Eye Mask | Compliant with G.957(class 1 laser safety) | Note (2) | ||||
Note (1): Measure at 2^23-1 NRZ PRBS pattern
Note (2): Transmitter eye mask definition
Ordering information
Product part Number | Data Rate (Mbps) | Media | Wavelength (nm) | Transmission Distance(m) | Temperature Range（Tcase）（℃） | |
SFP-622M-850nm-550m-MM-LC-DDM | 622 | Multi mode fiber | 850 | 550 | 0~70 | commercial |
SFP-622M-850nm-550m-MM-LC-DDM | 622 | Multi mode fiber | 850 | 550 | -10~80 | extended |
SFP-622M-850nm-550m-MM-LC-DDM | 622 | Multi mode fiber | 850 | 550 | -40~85 | industrial |
|
