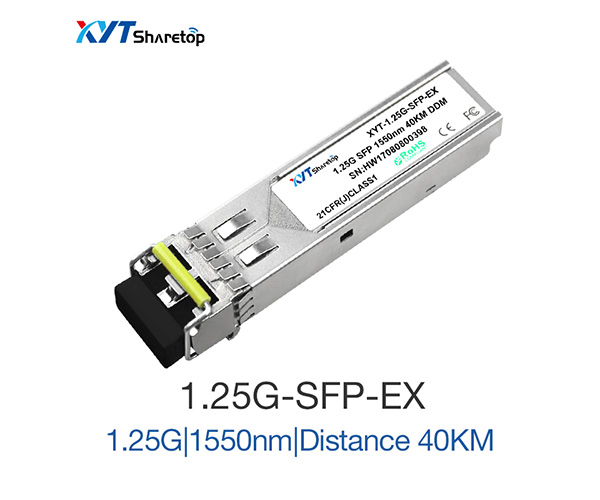

1.25G optic transceiver SFP 40KM

Category:XYT-SFP-40
Code:Dual Fiber Module

 - Products description -


    The XYT optic SFP transceivers are high performance,cost effective modules supporting multi-rate of 155Mbps~1.25Gbps and 40km transmission distance with SMF.The transceiver consists of three sections:a FP laser transmitter,a PIN photodiode integrated with a trans-impedance preamplifier(TIA)and MCU control unit.All modules satisfy class I laser safety requirements.The transceivers are compatible with SFP Multi-Source Agreement(MSA)and SFF-8472.For further information,please refer to SFP MSA.


 - Product Features -


1.Operating data rate up to 1.25Gbps

2.1310nm laser and PIN photodetector for 40 km transmission with SMF

3.PIN photodetector for 100m transmission with SMF

4.Meet SFP MSA and SFF-8472 with LC receptacle

5.Metal Enclosure for Lower EMI

6.Comply with SFP MSA

7.Operation Temperature Range 0~70℃ or-40~85℃ Optional

8.Single+3.3V Power Supply

9.RoHS-6 Compliant


 - Product Specification -


1.Gigabit Ethernet

2.Fiber Channel

3.WDM Application

4.Switch to Switch interface

5.Switch backplane applications

6.ATM

7.SONT/SDH/PDH

8.FDDI

9.Other optical transmission system

Specification

Table 1-Optical and Electrical Characteristics

Parameter

Symbol

Min

Typical

Max

Unit

Notes

Transmitter

Centre Wavelength

λc

1260

1310

1360

nm


Spectral Width(RMS)



4

nm


Average Output Power

Pout

-9


-3

dBm

1

Extinction Ratio

ER

9



dB


Optical Rise/Fall Time(20%~80%)

tr/tf



0.26

ns


Data Input Swing Differential

VIN

400


1800

mV

2

Input Differential Impedance

ZIN

90

100

110

Ω


TX Disable

Disable


2


Vcc

V


Enable


0


0.8

V


TX Fault

Fault


2


Vcc

V


Normal


0


0.8

V


Receiver

Centre Wavelength

λc

1260


1580

nm


Receiver Sensitivity




-23

dBm

3

Receiver Overload


-3



dBm

3

LOS De-Assert

LOSD



-24

dBm


LOS Assert

LOSA

-35



dBm


LOS Hysteresis


1


4

dB


Data Output Swing Differential

Vout

400


1800

mV

4

LOS

High

2


Vcc

V


Low



0.8

V


NOTE:

1.The optical power is launched into SMF.

2.PECL input,internally AC-coupled and terminated.

3.Measured with a PRBS 27-1 test pattern@1250Mbps,BER ≤1×10-12.

4.Internally AC-coupled.



Parameter


Product Type

Date Rate

Wavelength

Transmission Distance

Transmitter  Power

Receiver sensitivity

Interface

 Operating    temperature

SFP

1.25G

850nm

550M

-3~-8

≤-18

LC

0-70℃


1.25G

1310nm

10KM

-3~-9

≤-24

LC

0-70℃


1.25G

1310nm

40KM

0~-5

≤-24

LC

0-70℃


1.25G

1550nm

80KM

0-5

≤-26

LC

0-70℃


1.25G
