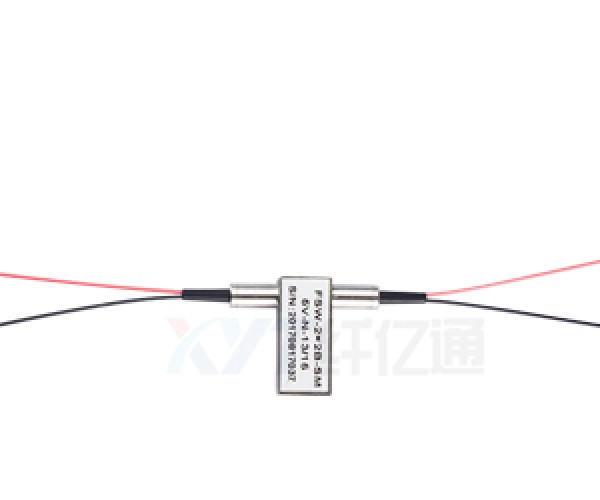

XYT-TECH Sharetop 2×2 Fully Optical Switch
- Product Features -
Low Insertion Loss
Wide Wavelength Range
Low Crosstalk
High Stability, High Reliability
Epoxy-free on Optical Path
Latching and Non-latching
- Product Specification -
R&D in Laboratory
System Monitoring
OADM
MAN
Parameters
| 2×2 | ||
WavelengthRange | nm | MM | SM |
Operating length | nm | 630/650/780/850/980/1064/1310 | 1310/1490/1550/1625/1650 |
Insertion Loss | dB | Typ:1.0, Max:1.3 | Typ:1.0, Max:1.2 |
Return Loss | dB | ≥30 | ≥50 |
Crosstalk | dB | ≥35 | ≥50 |
PDL | dB | ≤0.05 | |
WDL | dB | ≤0.25 | |
TDL | dB | ≤0.25 | |
Repeatability | dB | ≤±0.02 | |
Power Supply | v | 3.0 or 5.0 | |
Lifetime | cycle | ≥107 | |
Switch Time | ms | ≤8 | |
Transmission | mW | ≤500 | |
Operating perature | ℃ | -40~+85 | |
Storage Temperature | ℃ | -40~+85 | |
Weight | g | 16 | |
Dimension | mm | (L)28.5×(W)12.6×(H)8.5(±0.2) | |
Above specification are for device without connector
Electric
Specifications | Voltage | Current | Resistance |
5V latching | 4.5~5.5 | 36~44mA | 125Ω |
5V non-latching | 4.5~5.5 | 26~32mA | 175Ω |
3V latching | 2.7~3.3 | 54~66mA | 50Ω |
3V non-latching | 2.7~3.3 | 39~47mA | 70Ω |
Ordering Information
Mode | Wavelength | Voltage Type | Control Model | Fiber Type | Fiber Diameter | Fiber Length | Connector |
S:SM M:MM | 85=850nm 13=1310nm 14=1490nm 15=1550nm 62=1625nm 65=1650nm 13/15=1310/1550nm
| 3=3V 5=5V | L=Latching N=Non- Latching | 5=50/125 6=62.5/125 9=9/125
| 25=250um 90=900um 20=2.0mm
| 05=0.5m 10=1.0m 15=1.5m
| 0=None 1=FC/PC 3=FC/APC 4=SC/PC 5=SC/APC 6=ST/PC 7=ST/APC 8=LC/PC 9=LC/APC |
|
