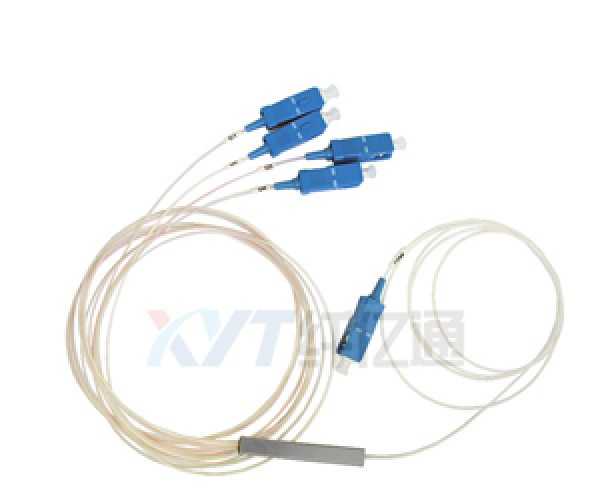

XYT-TECH Sharetop Planar lightwave circuit splitter (PLC Splitter) is a type of optical power management device that is fabricated using silica optical waveguide technology. It features small size, high reliability, wide operating wavelength range and good channel-to-channel uniformity, and is widely used in PON(EPON/GPON) networks to realize optical signal power splitting.
We provides whole series of 1xN and 2xN splitter products that are tailored for specific applications. All PLC Splitter products meet GR-1209-CORE and GR-1221-CORE requirements.
- Product Features -
Low insertion loss and low PDL
High channel counts
Exceptional reliability and stability
Wide operating wavelength
- Product Specification -
FTTX Systems
LAN, WAN and metro networks
Analog/Digital passive optical networks
CATV networks
Other applications in fiber optic systems
Parameters | 1×2 | 1×4 | 1×8 | 1×16 | 1×32 | 1×64 |
Operating Wavelength (nm) | 1260～1650 | |||||
Fiber Type | G657A1 or customer specified | |||||
Insertion Loss (dB)（P/S Grade | 3.8/4.0 | 7.1/7.3 | 10.2/10.5 | 13.5/13.7 | 16.5/16.9 | 20.5/21.0 |
Loss Uniformity (dB) | 0.4 | 0.6 | 0.8 | 1.2 | 1.5 | 2.0 |
Polarization Dependent Loss(dB) | 0.2 | 0.2 | 0.2 | 0.25 | 0.3 | 0.35 |
Return Loss (dB) | 55/50 | |||||
Directivity (dB) | 55 | |||||
| Wavelength Dependent Loss (dB) | 0.3 | 0.3 | 0.3 | 0.5 | 0.5 | 0.5 |
Temperature Stability (-40～85 ℃)(dB) | 0.4 | 0.4 | 0.4 | 0.5 | 0.5 | 0.5 |
Operating Temperature (℃) | -40～85 | |||||
| Steel tube Dimension (mm) | 60×7×4 | 60×12×4 | 80×20×6 | 100×40×6 | ||
1. Specified without connectors.
2. Add an additional 0.15dB loss per connector.
Ordering information(PLC-0102-0-0-0-0-0)
| Product | Port | Input Pigtall Style | Input Connector | Output Pigtall Style | Output Connector | Fiber Length |
| PLC | 0102=1x2 0104=1x4 0108=1x8 0116=1x16 0132=1x32 0164=1x64 1128=1x128 | 0=bare fiber 1=900um Loose tube 2=900umJacket 3=2.0mmcable 4=3.0mmcable | 0=none 1=SC/PC 2=SC/APC 3=FC/PC 4=FC/APC 5=ST 6=LC 7=LC/APC 8=E2000 S=Special | 0=bare fiber 1=900um Loose tube 2=900umJacket 3=2.0mmcable 4=3.0mmcable | 0=none 1=SC/PC 2=SC/APC 3=FC/PC 4=FC/APC 5=ST 6=LC 7=LC/APC 8=E2000 S=Special | 0=0.5m 1=1m 2=1.5m 3=2m 4=3m 5=4m S=special |
|
