- Products description -

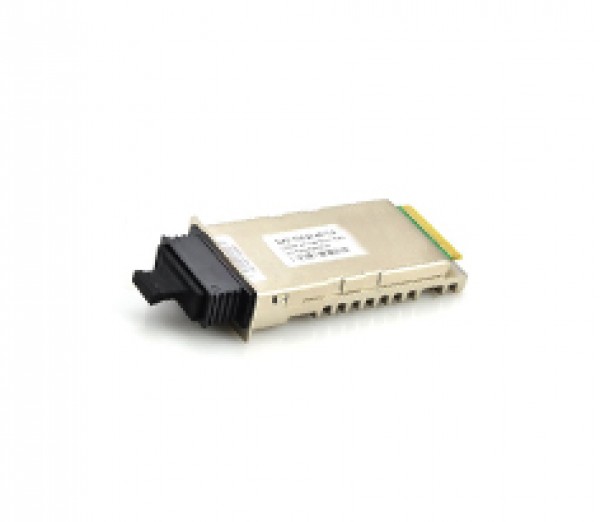

10Gb/s DWDM X2 ER Transponder is a hot pluggable in the Z-direction module
that is usable in typical router line card applications,Storage,IP network and LAN and compliant to X2 MSA.The XGX2-1396-10D is a fully integrated 10.3Gbit/s optical transceiver module that consists of a 10.3Gbit/s optical transmitter and receiver,XAUI interface,Mux and De-mux with clock and data recovery(CDR).This version of XGIGA Inc.transceiver line uses an uncooled 1310nm DML Laser Diode to achieve 40km over standard single mode fiber as 10GBASE-LR of the IEEE 802.3ae.
- Product Features -
1.X2 MSA Compliant
2.70-PIN connector
3.SC duplex receptacle package
4.XAUI 4x3.125Gb/s and TX/RX 10Gb/s data rate
5.Wavelength selectable to C-band ITU-T grid wavelengths
6.Cooled EA-DFB/PIN-PD
7.Power supply:+5.0 V,+3.3 V,APS:+1.2 V
8.Power Dissipation 4W Maximum
9.0℃ to 70℃ Operating Case Temperature
10.Digital Diagnostic Monitoring
11.Management and control with MDIO 2-wire bus
12.XAUI electrical interface 4 x 3.125Gb/s Ethernet
13.≤40km ER（Extended Range）10GBE
14.RoHS compliant and lead free
- Product Specification -
10 Gb/s Ethernet transmission systems
Absolute Maximum Ratings
Table 1-Optical and Electrical Characteristics
Parameter | Symbol | Min. | Typ. | Max. | Unit | Note |
XAUI Date Rate | DR | 3.145 | Gb/s | |||
XAUI Baud Rate Tolerance | -100 | +100 | ppm | Relative Tolerance | ||
Differential Input Voltage Swing | 220 | 1600 | mv | 8B/10B Coded Input Signal | ||
Differential Output Voltage Swing | 800 | 1600 | mVp-p | RLOAD=100?± 5% | ||
Differential Input Impedance | 80 | 100 | 140 | ? | ||
Total Output Jitter | TJXAUI | 0.35 | UI | no pre-equalization | ||
Total Deterministic Output Jitter | DJXAUI | 0.17 | UI | no pre-equalization |
C-band λc Wavelength Guide
ITU Channel | Frequency(THz) | Wavelength | ITU Channel | Frequency(THz) | Wavelength |
Product Code | Product Code | ||||
17 | 191.7 | 1563.86 | 40 | 194 | 1545.32 |
18 | 191.8 | 1563.05 | 41 | 194.1 | 1544.53 |
19 | 191.9 | 1562.23 | 42 | 194.2 | 1543.73 |
20 | 192 | 1561.42 | 43 | 194.3 | 1542.94 |
21 | 192.1 | 1560.61 | 44 | 194.4 | 1542.14 |
22 | 192.2 | 1559.79 | 45 | 194.5 | 1541.35 |
23 | 192.3 | 1558.98 | 46 | 194.6 | 1540.56 |
24 | 192.4 | 1558.17 | 47 | 194.7 | 1539.77 |
25 | 192.5 | 1557.36 | 48 | 194.8 | 1538.98 |
26 | 192.6 | 1556.55 | 49 | 194.9 | 1538.19 |
27 | 192.7 | 1555.75 | 50 | 195 | 1537.4 |
28 | 192.8 | 1554.94 | 51 | 195.1 | 1536.61 |
29 | 192.9 | 1554.13 | 52 | 195.2 | 1535.82 |
30 | 193 | 1553.33 | 53 | 195.3 | 1535.04 |
31 | 193.1 | 1552.52 | 54 | 195.4 | 1534.25 |
32 | 193.2 | 1551.72 | 55 | 195.5 | 1533.47 |
33 | 193.3 | 1550.92 | 56 | 195.6 | 1532.68 |
34 | 193.4 | 1550.14 | 57 | 195.7 | 1531.9 |
35 | 193.5 | 1549.32 | 58 | 195.8 | 1531.14 |
36 | 193.6 | 1548.51 | 59 | 195.9 | 1530.33 |
37 | 193.7 | 1547.72 | 60 | 196 | 1529.55 |
38 | 193.8 | 1546.92 | 61 | 196.1 | 1528.77 |
39 | 193.9 | 1546.14 | 62 | 196.2 | 1528.33 |
|
