- Products description -

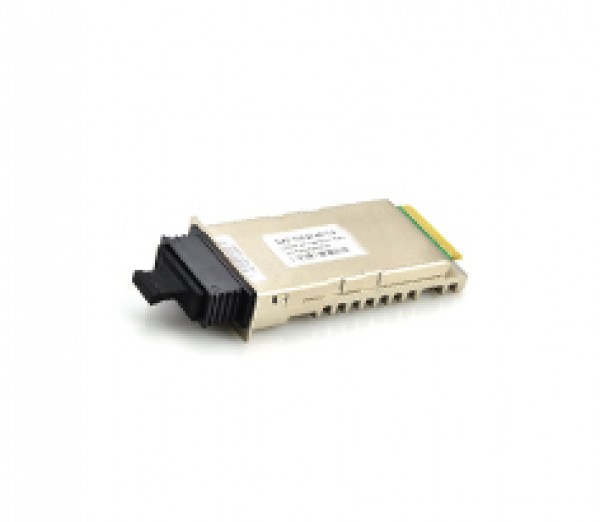

10 Gigabit X2 220m Reach Transceiver is a highly integrated、Serial optical transponder module for high-speed, 10Gbit/s data transmission applications.4×3.125Gbps Ethernet Signal Input by XAUI Interface.An integrated Coder/Decoder and multiplexer/demultiplexer(SERDES:Serializer/Deserializer).Designing for 220m Transmission. Digital diagnostics functions are available via a 2-wire serial interface,as specified in the XENPAK MSA 3.0.

- Product Features -

XAUI Electrical Interface:4 Lanes@3.125Gbit/s
Uncooled 1270nm DFB laser and PIN receiver
Hot Z-Pluggable
SC-Duplex Optical Receptacle
MDIO,DOM Support
Compliant to X2 MSA
Compliant to IEEE 802.3ae 10GBASE-LR Application
Case operating temperature:0 to 70 °C

- Product Specification -

10GE Ethernet switches and routers
10GE Core-routers
10GE Storage
Data Center Applications

Specification

Absolute Maximum Ratings

Table 1-Optical and Electrical Characteristics

Parameter	Symbol	Min.	Typ.	Max.	Unit	Note
XAUI Date Rate	DR		3.125		Gb/s
XAUI Baud Rate Tolerance		-100		+100	ppm	Relative Tolerance
Differential Input Voltage Swing		220		1600	mv	8B/10B Coded Input Signal
Differential Output Voltage Swing		800		1600	mVp-p	RLOAD=100?± 5%
Differential Input Impedance		80	100	120	?
Total Output Jitter	TJXAUI			0.35	UI	no pre-equalization
Total Deterministic Output Jitter	DJXAUI			0.17	UI	no pre-equalization

Ordering information

Part Number	Product Description
XYT-31192-LRC	1310nm,10.3125Gbps, 10Km, 0?C~+70?C

Sale service

	Products damaged due to human or non-use of other causes of improper,we promises one year warranty and lifetime maintenance,but the unauthorized disassembly equipment caused damage is not covered under warranty and returned within range.
	Under normal use,if there are product quality problems,or not work normally,we provide free repair or replacement service within one year;Within three years more than one year,we provide to collect the material cost,maintenance free. Repair warranty period of three years from the freight borne by each of the parties.After three years of warranty,the material cost,maintenance,freight(refers to the product of the two-way shipping to and from)shall be borne by the user.
	We promise that the product we provide can meet the performance requirements of users , and it is supplied by the user's sample request.
