- Products description -

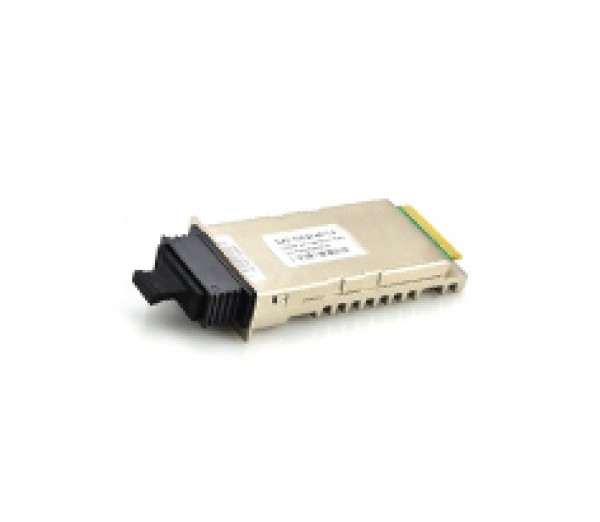

XGIGA’s 10Gb/s X2 transceiver module X2BS-332796-10D is a hot pluggable in the Z-direction module. that is usable in typical router line card applications,Storage,IP network and LAN and compliant to X2. MSA.The X2BS-332796-10D is a fully integrated 10.3Gbit/s optical transceiver module that consists of a 10.3Gbit/s optical transmitter and receiver,XAUI interface,Mux and Demux with clock and data recovery(CDR).This version of XGIGA Inc.transceiver line uses an uncooled 1330nm DML Laser Diode to achieve 40km over standard single mode fiber as 10GBASE-LR of the IEEE 802.3ae.
- Product Features -
1.XAUI Electrical Interface:4 Lanes@3.125Gbit/s
2.Uncooled 1330nm DFB laser and 1270nm PIN receiver
3.Hot Z-Pluggable
4.SC-Duplex Optical Receptacle
5.MDIO,DOM Support
6.Compliant to X2 MSA
7.Compliant to IEEE 802.3ae 10GBASE-LR Application
8.Case operating temperature:0 to 70 °C
- Product Specification -
IEEE 802.3ae as 10GBASE-LR,X2 MSA Release1.0B
Table 1-Optical and Electrical Characteristics
Parameter | Symbol | Min. | Typ. | Max. | Unit | Note |
XAUI Date Rate | DR | 3.125 | Gb/s | |||
XAUI Baud Rate Tolerance | -100 | 100 | ppm | Relative Tolerance | ||
Differential Input Voltage Swing | 220 | 1600 | mv | 8B/10B Coded Input Signal | ||
Differential Output Voltage Swing | 800 | 1600 | mVp-p | RLOAD=100?± 5% | ||
Differential Input Impedance | 80 | 100 | 120 | ? | ||
Total Output Jitter | TJXAUI | 0.35 | UI | no pre-equalization | ||
Total Deterministic Output Jitter | DJXAUI | 0.17 | UI | no pre-equalization |
Ordering information
Part Number | Product Description |
XYT-31192-LRC | 1310nm,10.3125Gbps, 10Km, 0?C~+70?C |
|
Products damaged due to human or non-use of other causes of improper,we promises one year warranty and lifetime maintenance,but the unauthorized disassembly equipment caused damage is not covered under warranty and returned within range. |
|
Under normal use,if there are product quality problems,or not work normally,we provide free repair or replacement service within one year;Within three years more than one year,we provide to collect the material cost,maintenance free. Repair warranty period of three years from the freight borne by each of the parties.After three years of warranty,the material cost,maintenance,freight(refers to the product of the two-way shipping to and from)shall be borne by the user. |
|
We promise that the product we provide can meet the performance requirements of users , and it is supplied by the user's sample request. |
