- Products description -

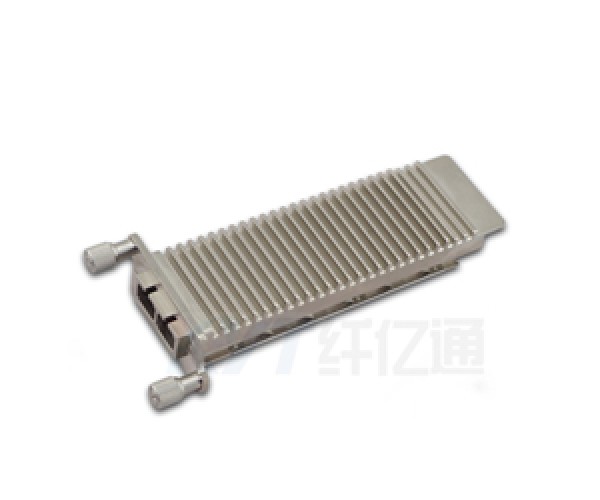

GIGALIGHT 10Gb/s DWDM XENPAK ZR Transponder ransponder is a highly integrated、Serial optical transponder module for high-speed,10Gbit/s data transmission applications.4×3.125Gbps Ethernet Signal Input by XAUI Interface.An integrated Coder/Decoder and multiplexer/demultiplexer(SERDES:Serializer/Deserializer).Designing for 10GBASE-LRM Transmission with an uncooled directly modulated 1310nm DFB Laser.The transponder operates within a wide case temperature range of 0°C to+70°C and offers optimum heat dissipation and excellent electromagnetic shielding which enables high port densities for 10 GbE systems.A 70 pin electrical connector and a duplex SC connector optical interface assure that connectivity is compliant to the XENPAK MSA Rev.3.0.
- Product Features -
1.XENPAK MSA Compliant
2.70-PIN connector
3.SC duplex receptacle package
4.XAUI 4x3.125Gb/s and TX/RX 10Gb/s data rate
5.Wavelength selectable to C-band ITU-T grid wavelengths
6.Cooled EA-DFB/APD
7.Power supply:+5.0 V,+3.3 V,APS:+1.2 V
8.Power Dissipation 4W Maximum
9.0℃ to 70℃ Operating Case Temperature
10.Digital Diagnostic Monitoring
11.Management and control with MDIO 2-wire bus
12.XAUI electrical interface 4 x 3.125Gb/s Ethernet
13.80km ZR 10GBE
14.RoHS compliant and lead free
- Product Specification -
GIGALIGHT 10Gb/s DWDM XENPAK ZR Transponder
Table 1-Optical and Electrical Characteristics
Parameter | Symbol | Min | Typical | Max | Unit |
Data Rate(TXLINE0-3) | RX-xaui | 3125 | Mbps | ||
Supply Voltage | VccRX | 3.13 | 3.3 | 3.47 | V |
Differential Output Amplitude | Vout P-P | 800 | - | 1600 | mV |
Rise/Fall Time | Tr/Tf | 50 | - | 90 | ps |
Differential Impedance of Zout | Zout | - | 100 | - | ohm |
Signal Specifications – Electrical
Parameter | Symbol | Min | Typ | Max | Units |
1.2 V CMOS | |||||
Input High Voltage | VIL(MAX) | - | - | 0.36 | V |
Input Low Voltage | VIH(MIN) | 0.84 | - | 1.25 | V |
Capacitance | - | - | 320 | pF | |
Pull Up Resistance | Rpull | 10k | - | 22k | ohm |
MDIO I/O | |||||
Output Low Voltage | VOL | -0.3 | - | 0.2 | V |
Output Low Current | IOL | - | - | 4 | mA |
Input High Voltage | VIH | 0.84 | - | 1.5 | V |
Input Low Voltage | VIL | -0.3 | - | 0.36 | V |
Pull-up Supply Voltage | VPULL | 1.14 | 1.2 | 1.26 | |
Input Capacitance | CIN | - | - | 10 | Pf |
Load Capacitance | CLOD | - | - | 470 | Pf |
External Pull-up Resistance | EPULL | 200 | - | - | Ohm |
|
