- Products description -

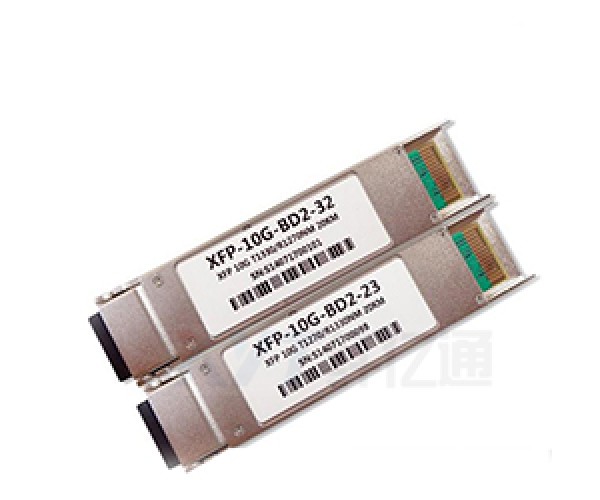

Small Form Factor 10Gb/s(XFP)transceivers are compliant with the current XFP Multi-Source Agreement(MSA)Specification.They comply with 10-Gigabit Ethernet 10GBASE-LR/LW per IEEE 802.3ae and 10G Fiber Channel.Digital diagnostics functions are availablevia a 2-wire serial interface,as specified in the XFP MSA.The transceiver is RoHS compliant and leads free per Directive 2002/95/EC3.
- Product Features -
1.Hot-pluggable XFP footprint
2.Supports 9.95Gb/s to 11.3Gb/s
3.CWDM DFB Laser and PIN receiver
4.RoHS-6 Compliant(lead-free)
5.Power dissipation<2.0W
6.Temperature range:0°C to 70°C
7.Single power supply:3.3V
8.Maximum link length of 10km
9.Full Duplex LC connector
10.No Reference Clock required
11.Built-in digital diagnostic functions
12.Standard bail release mechanism
- Product Specification -
10GBASE-LR/LW 10G Ethernet
10G Fiber Channel
SONET OC-192 SR-1&SDH STM I-64.1
Table 1-Optical and Electrical Characteristics
Parameter | Symbol | Min | Typical | Max | Unit | Notes | ||
Transmitter | ||||||||
Centre Wavelength | λc | 1260 | 1310 | 1360 | nm | |||
Spectral Width(RMS) | ?λ | 4 | nm | |||||
Average Output Power | Pout | -9 | -3 | dBm | 1 | |||
Extinction Ratio | ER | 9 | dB | |||||
Optical Rise/Fall Time(20%~80%) | tr/tf | 0.26 | ns | |||||
Data Input Swing Differential | VIN | 400 | 1800 | mV | 2 | |||
Input Differential Impedance | ZIN | 90 | 100 | 110 | Ω | |||
TX Disable | Disable | 2 | Vcc | V | ||||
Enable | 0 | 0.8 | V | |||||
TX Fault | Fault | 2 | Vcc | V | ||||
Normal | 0 | 0.8 | V | |||||
Receiver | ||||||||
Centre Wavelength | λc | 1260 | 1580 | nm | ||||
Receiver Sensitivity | -23 | dBm | 3 | |||||
Receiver Overload | -3 | dBm | 3 | |||||
LOS De-Assert | LOSD | -24 | dBm | |||||
LOS Assert | LOSA | -35 | dBm | |||||
LOS Hysteresis | 1 | 4 | dB | |||||
Data Output Swing Differential | Vout | 400 | 1800 | mV | 4 | |||
LOS | High | 2 | Vcc | V | ||||
Low | 0.8 | V | ||||||
NOTE:
1.The optical power is launched into SMF.
2.PECL input,internally AC-coupled and terminated.
3.Measured with a PRBS 27-1 test pattern@1250Mbps,BER ≤1×10-12.
4.Internally AC-coupled.
Parameter
Type | Rate | Wavelength | Transmition distance | Transmitter power | Receiver sensitivity | Interface | Operating temperature |
XFP | 10G | 1270/1330nm | 10M | -1~-5 | ≤-14.4 | LC | 0-70℃ |
10G | 1270/1330nm | 40KM | 0~5 | ≤-15.8 | LC | 0-70℃ | |
10G | 1270/1330nm | 60KM | 0~5 | ≤-20 | LC | 0-70℃ |
|
Products damaged due to human or non-use of other causes of improper,we promises one year warranty and lifetime maintenance,but the unauthorized disassembly equipment caused damage is not covered under warranty and returned within range. |
|
Under normal use,if there are product quality problems,or not work normally,we provide free repair or replacement service within one year;Within three years more than one year,we provide to collect the material cost,maintenance free. Repair warranty period of three years from the freight borne by each of the parties.After three years of warranty,the material cost,maintenance,freight(refers to the product of the two-way shipping to and from)shall be borne by the user. |
|
We promise that the product we provide can meet the performance requirements of users , and it is supplied by the user's sample request. |
