- Products description -

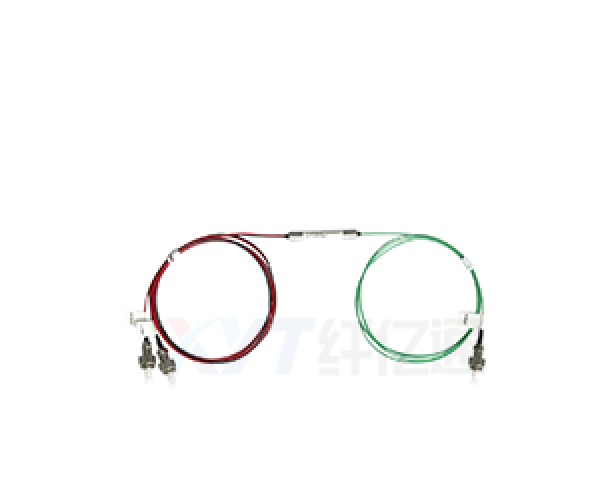

Sharetop(XYT-TECH) FWDM utilizes thin film coating technology and proprietary design of non-flux metal bonding micro optics packaging.It provides low insertion loss,high channel isolation,low temperature sensitivity and epoxy free optical path.
- Product Features -
1．Low Insertion Loss
2．Wide Wavelength Range
3．High Channel Isolation
5．Epoxy free optical path and excellent reliability.
- Product Specification -
1．Transmitters and fiber lasers
2．Telecommunication network system
4．Fiber optical lnstruments
5．Fiber Optical amplifier
6．System Monitoring
Parameter | T1550 R1310&1490 | |
Pass Band Wavelength Range(nm) | 1540~1560 | |
Reflection Band1 Wavelength Range(nm) | 1260~1360 | |
Reflection Band1 Wavelength Range(nm) | 1480~1500 | |
Insertion Loss(dB) | Reflect Channel | ≤0.6 |
Pass Channel | ≤0.8 | |
Pass Band Rippler(dB) | <0.3 | |
Isolation(dB) | Reflect Channel | >15 |
Pass Channel | >30 | |
Insertion Loss Temperature Sensitivity(dB/℃) | <0.005 | |
Polarization Dependent Loss(dB) | <0.1 | |
Polarization Mode Dispersion(ps) | <0.1 | |
Directivity(dB) | >50 | |
Return Loss(dB) | >50 | |
Maximum Power Handling(mW) | 500 | |
Operating Temperature(℃) | 0~+70 | |
Storage Temperature(℃) | -40~+85 | |
Package Dimension(mm) | 1.Φ5.5 x L35(bare fiber) | |
Above specification are for device without connector.
Order Information | ||||
Product | Wavelength | Fiber Type | Fiber Length | Connector |
FWDM | 3/45=1310pass/1490&1550reflect | 1=250um bare fiber | 1=1m | 0=None |
|
