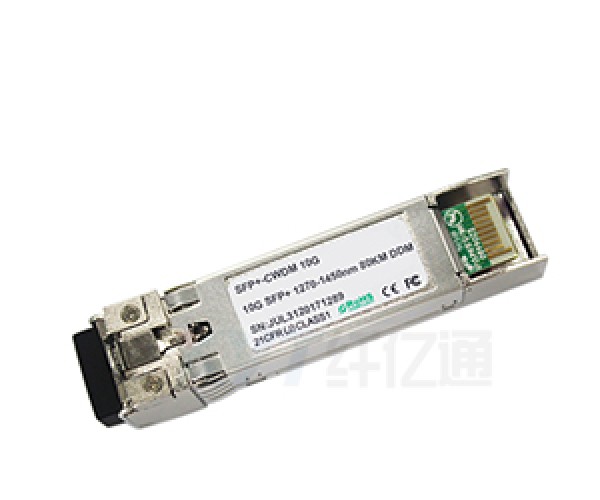

Sharetop's SFP transceivers are high performance,cost effective modules supporting multi-rate of 10 Gbps and 80km transmission distance with SMF.The transceiver consists of three sections:a FP laser transmitter,a PIN photodiode integrated with a trans-impedance preamplifier(TIA)and MCU control unit.All modules satisfy class I laser safety requirements.The transceivers are compatible with SFP Multi-Source Agreement(MSA)and SFF-8472.For further information,please refer to SFP MSA.
- Product Features -
Up to 11.1Gbps Data Links
Up to 80km transmission on SMF
Power dissipation < 1.5W
CWDM EML Laser and APD receiver
Metal enclosure, for lower EMI
2-wire interface with integrated Digital Diagnostic monitoring
Hot-pluggable SFP+ footprint
Specifications compliant with SFF 8472
Compliant with SFP+ MSA with LC connector
Single 3.3V power supply
Case operating temperature range:0°C to 70°C
- Product Specification -
10GBASE-ZR/ZW & 10G Ethernet
STANDARD
Compliant to 802.3ae 10GBASE-ZR/ZW
Compliant to SFF-8431
RoHS Compliant.
Table 1-Optical and Electrical Characteristics
Parameter | Symbol | Min | Typical | Max | Unit | Notes | ||
Transmitter | ||||||||
Centre Wavelength | λc | 1260 | 1310 | 1360 | nm | |||
Spectral Width(RMS) | ?λ | 4 | nm | |||||
Average Output Power | Pout | -9 | -3 | dBm | 1 | |||
Extinction Ratio | ER | 9 | dB | |||||
Optical Rise/Fall Time(20%~80%) | tr/tf | 0.26 | ns | |||||
Data Input Swing Differential | VIN | 400 | 1800 | mV | 2 | |||
Input Differential Impedance | ZIN | 90 | 100 | 110 | Ω | |||
TX Disable | Disable | 2 | Vcc | V | ||||
Enable | 0 | 0.8 | V | |||||
TX Fault | Fault | 2 | Vcc | V | ||||
Normal | 0 | 0.8 | V | |||||
Receiver | ||||||||
Centre Wavelength | λc | 1260 | 1580 | nm | ||||
Receiver Sensitivity | -23 | dBm | 3 | |||||
Receiver Overload | -3 | dBm | 3 | |||||
LOS De-Assert | LOSD | -24 | dBm | |||||
LOS Assert | LOSA | -35 | dBm | |||||
LOS Hysteresis | 1 | 4 | dB | |||||
Data Output Swing Differential | Vout | 400 | 1800 | mV | 4 | |||
LOS | High | 2 | Vcc | V | ||||
Low | 0.8 | V | ||||||
Ordering information
Type | Rate | Wavelength | Transmission Distance | Transmitter Power | Receiver sensitivity | Interface | Operating temperature |
CWDM SFP+ | 10G | 1270-1450nm | 10KM | -1~-5 | ≤-14.4 | LC | 0-70℃ |
10G | 1470-1610nm | 40KM | -1~-3 | ≤-15.8 | LC | 0-70℃ | |
10G | 1470-1610nm | 80KM | 0~-4 | ≤-23 | LC | 0-70℃ | |
10G | C20-C60 | 40KM | -1-3 | ≤-15.8 | LC | 0-70℃ | |
10G | C20-C60 | 80KM | 0-4 | ≤-23 | LC | 0-70℃ |
|
