- Products description -

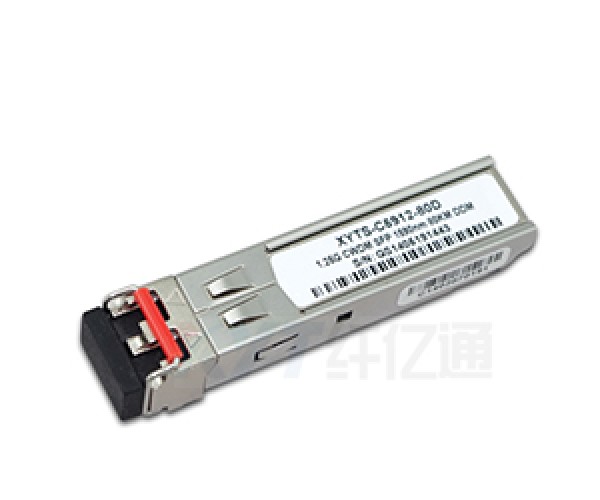

SFP-2.5G-DWDM-120km-LC-DDM Small Form Factor Pluggable (SFP) transceivers are compatible with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA) and SFF-8472. The transceiver consists of five sections: the LD driver, the limiting amplifier, the digital diagnostic monitor, the DFB laser and the APD .The module data link up to 120KM in 9/125um single mode fiber. It offers a simple and convenient way to interface PCBs to single mode fiber optic cables in Dense Wavelength Division Multiplexing (DWDM) applications. It is a high performance, cost effective module for serial optical data communication applications。
The optical output can be disabled by a TTL logic high-level input of Tx Disable, and the system also can disable the module via I2C. Tx Fault is provided to indicate that degradation of the laser. Loss of signal (LOS) output is provided to indicate the loss of an input optical signal of receiver or the link status with partner. The system can also get the LOS (or Link)/Disable/Fault information via I2C register access.
- Product Features -
Transceiver unit with independent
DWDM DFB Laser diode transmitter
APD photodiode receiver
Compliant with DWDM SFP MSA
Up to 2.7Gbp/s data links
SFF-8472 with duplex LC receptacle
Power dissipation < 1.2W
Metal enclosure for lower EMI
3.3V Single power supply
100GHz ITU Grid, C Band
Wavelength controlled within ± 0.1nm over life and temperature
Digital diagnostic monitoring
120 km with 9/125 µm single mode fiber (SMF) of maximum interconnect distances
Case operating temperature：0°C to +70°C
- Product Specification -
C Band DWDM networks
SONET/SDH networks
Fiber channel
Table 1-Optical and Electrical Characteristics
Parameter | Symbol | Min | Typical | Max | Unit | Notes | ||
Transmitter | ||||||||
Centre Wavelength | λc | 1260 | 1310 | 1360 | nm | |||
Spectral Width(RMS) | ?λ | 4 | nm | |||||
Average Output Power | Pout | -9 | -3 | dBm | 1 | |||
Extinction Ratio | ER | 9 | dB | |||||
Optical Rise/Fall Time(20%~80%) | tr/tf | 0.26 | ns | |||||
Data Input Swing Differential | VIN | 400 | 1800 | mV | 2 | |||
Input Differential Impedance | ZIN | 90 | 100 | 110 | Ω | |||
TX Disable | Disable | 2 | Vcc | V | ||||
Enable | 0 | 0.8 | V | |||||
TX Fault | Fault | 2 | Vcc | V | ||||
Normal | 0 | 0.8 | V | |||||
Receiver | ||||||||
Centre Wavelength | λc | 1260 | 1580 | nm | ||||
Receiver Sensitivity | -23 | dBm | 3 | |||||
Receiver Overload | -3 | dBm | 3 | |||||
LOS De-Assert | LOSD | -24 | dBm | |||||
LOS Assert | LOSA | -35 | dBm | |||||
LOS Hysteresis | 1 | 4 | dB | |||||
Data Output Swing Differential | Vout | 400 | 1800 | mV | 4 | |||
LOS | High | 2 | Vcc | V | ||||
Low | 0.8 | V | ||||||
NOTE:
1.The optical power is launched into SMF.
2.PECL input,internally AC-coupled and terminated.
3.Measured with a PRBS 27-1 test pattern@1250Mbps,BER ≤1×10-12.
4.Internally AC-coupled.
Parameters
Type | Rate | Wavelength | Transmission Distance | Transmitter power | Receiver sensitivity | Interface | Operating temperature | |
WDM SFP | 2.5G | **nm | 80KM | 0~5 | ≤-28 | LC | 0-70℃ | |
2.5G | C21-C60 | 120KM | 0~5 | ≤-30 | LC | 0-70℃ | ||
Ordering information
Part No. | Form Factor | Data Rate | Distance | Wavelength | Connector | DDM |
XYT-00854G-S5x(D) | SFP | 4.25G | 500m | 850nm | LC | Y |
XYT-00314G-L1xD | SFP | 4.25G | 10km | 1310nm | LC | Y |
XYT-00314G-L3xD | SFP | 4.25G | 30km | 1310nm | LC | Y |
XYT-00554G-L4XD | SFP | 4.25G | 40km | 1550nm | LC | Y |
XYT-003148-L2x(D) | SFP | 2.5G | 20km | 1310nm | LC | Y |
XYT-008548-S3x(D) | SFP | 2.5G | 300m | 850nm | LC | Y |
XYT-005548-L8x(D) | SFP | 2.5G | 80km | 1550nm | LC | Y |
XYT-003148-L4x(D) | SFP | 2.5G | 40km | 1310nm | LC | Y |
XYT-005548-12CD | SFP | 2.5G | 120km | 1550nm | LC | Y |
XYT-008524-S5x(D) | SFP | 1.25G | 550m | 850nm | LC | Y |
XYT-003124-L2x(D) | SFP | 1.25G | 20km | 1310nm | LC | Y |
XYT-005524-L8C(D) | SFP | 1.25G | 80km | 1550nm | LC | Y |
XYT-003124-L4x(D) | SFP | 1.25G | 40km | 1310nm | LC | Y |
XYT-005524-12C(D) | SFP | 1.25G | 120km | 1550nm | LC | Y |
XYT-003112-L2x(D) | SFP | 622M | 20km | 1310nm | LC | Y |
XYT-003112-L4x(D) | SFP | 622M | 40km | 1310nm | LC | Y |
XYT-008503-02C(D) | SFP | 155M | 2km | 850nm | LC | Y |
XYT-003112-L8x(D) | SFP | 622M | 80km | 1550nm | LC | Y |
XYT-005503-L8CD | SFP | 155M | 80km | 1310nm | LC | Y |
XYT-003103-L2C(D) | SFP | 155M | 20km | 1310nm | LC | Y |
XYT-003103-L4C(D) | SFP | 155M | 40km | 1310nm | LC | Y |
XYT-005503-12CD | SFP | 155M | 120km | 1550nm | LC | Y |
|
