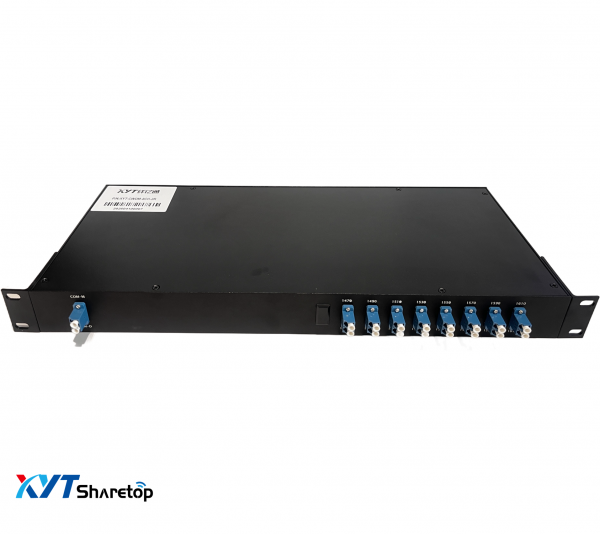

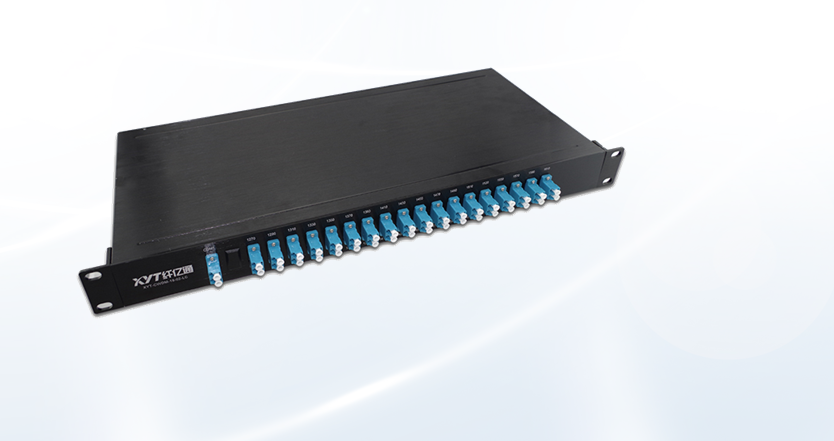

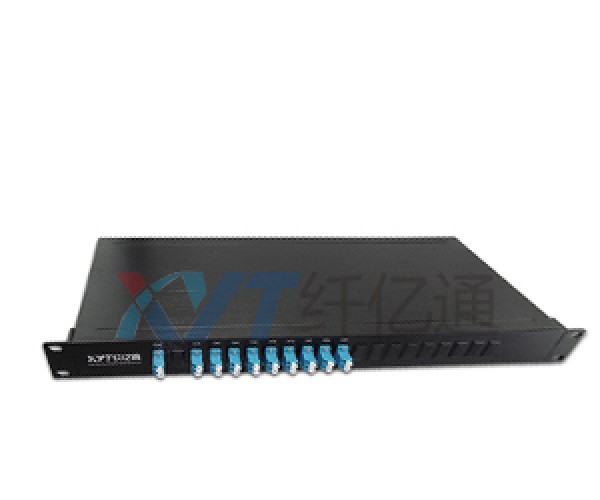

XYT-CWDM-MUX/DEMUX-1U
【NO.】CWDM-TFF1U-26Nv05
CWDM 1Urack-mounted（1270~1610nm）
Product features
l Low insertion loss l Center wavelength: 1270~1610nm
l High stability and high reliability l SMF-28e fiber
l Compact structure l Optional rack and joint types
l Center wavelength selectable, load l Power selectable
l Multiple customizable features

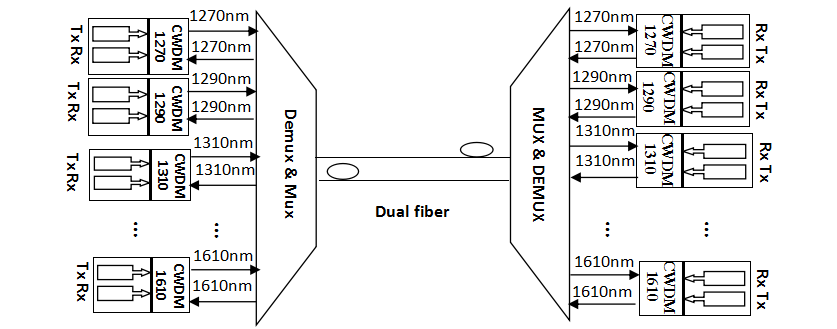

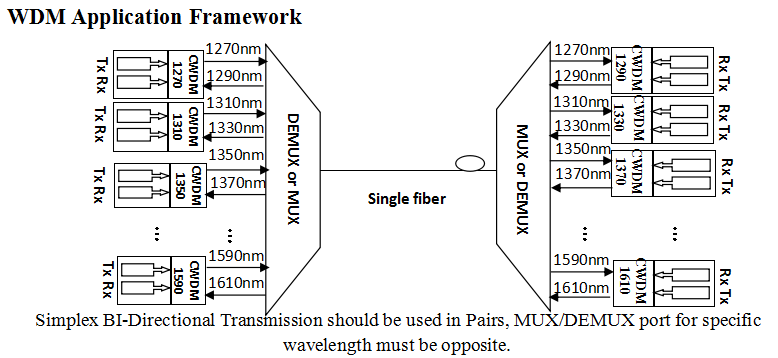

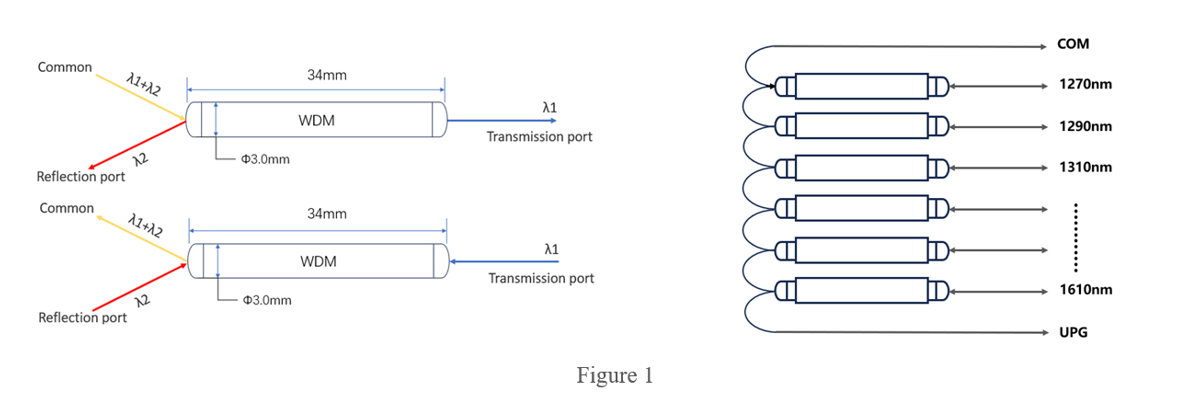

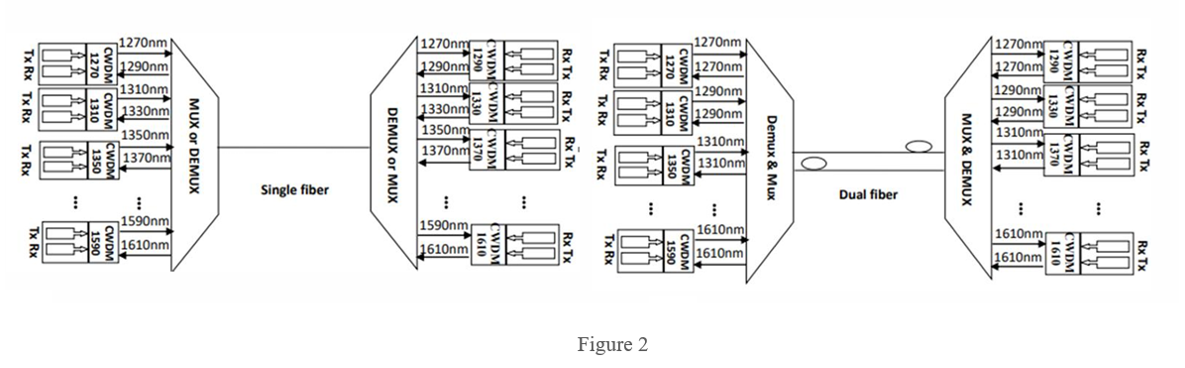

A wavelength division multiplexer is a device that can couple two or more different wavelength optical models into a single optical fiber for transmission. Conversely, it can separate and demultidense two or more optical signals of different wavelengths within a single optical fiber. As shown in the diagram, two different beams of light are input from the common terminal. The WDM device allows one beam of a specific wavelength to pass through and output at the transmitted end, while the remaining wavelength is coupled back to the reflecting end for output—this is the process of wavelength splitting. Similarly, the optical path of WDM devices is reversible.
The coarse wavelength division multiplexer CWDM module uses TFF (Thin Film Filter) technology, complying with the ITU-T G.694.2 standard, with one channel every 20 nm in the 1270-1610 nm range. It can carry 2-18 CWDM wavelengths through a single fiber fiber, with each wavelength not affecting the other, so the signal does not interfere with the other. Each channel is usually transparent about data speed and type, so any combination of transmission service types can be transmitted simultaneously via a single fiber or a pair of fibers
Insertion loss calculation: the ratio of optical power to input and output ports
Parameter | 4 Channel | ||||||||
Mux | Demux | ||||||||
Channel Wavelength(nm) | 1270~1610;1271~1611 | ||||||||
Center wavelength Accuracy(nm) | ±0.5 | ||||||||
Channel Spacing(nm) | 20 | ||||||||
Channel Passband(@-0.5dB bandwidth(nm) | >13 | ||||||||
Insertion Loss(dB) | ≤1.6 | ||||||||
Channel Uniformity(dB) | ≤0.6 | ||||||||
Channel Ripple(dB) | 0.3 | ||||||||
Isolation(dB) | Adjacent | N/A | >30 | ||||||
Non-adjacent | N/A | >40 | |||||||
Inertion Loss(dB) | <0.005 | ||||||||
Wavelength Temperature Shifting(nm/℃) | <0.002 | ||||||||
Polarization Dependent Loss(dB) | <0.1 | ||||||||
Polarization Mode Dispersion(PS) | <0.1 | ||||||||
Directivity(dB) | >50 | ||||||||
Return Loss（dB） | >45 | ||||||||
Maximum Power Handling(mW) | 300 | ||||||||
Opterating Temperature(℃) | -5~+75 | ||||||||
Storage Temperature(℃) | -40~85 | ||||||||
Package dimension(mm) | ABS module | ||||||||
1U rack | |||||||||
* Specification without connector, test data indicates 25°C.
* For devices with connectors, insertion loss is 0.3dB higher and return loss is 5dB lower.
* For different power parameters, products use different package sizes.

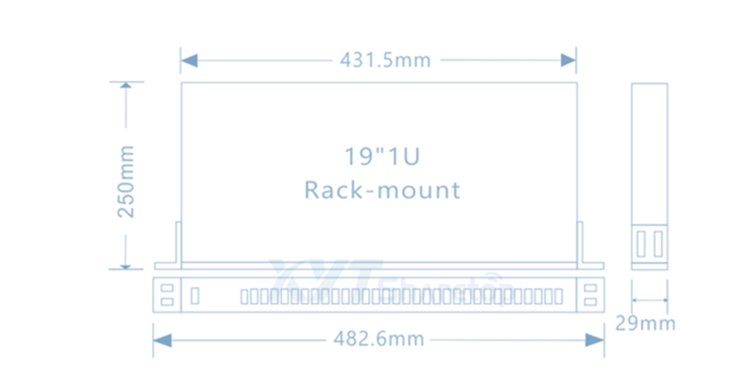

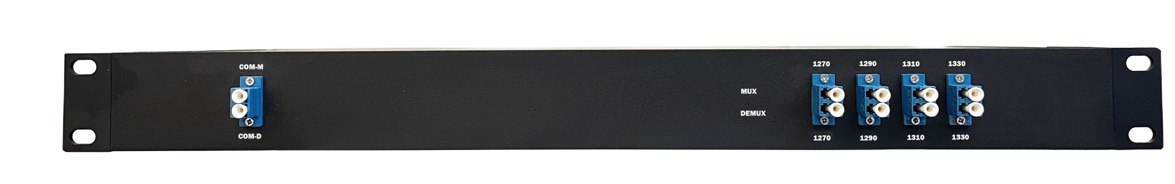

Package structure diagram:（mm）

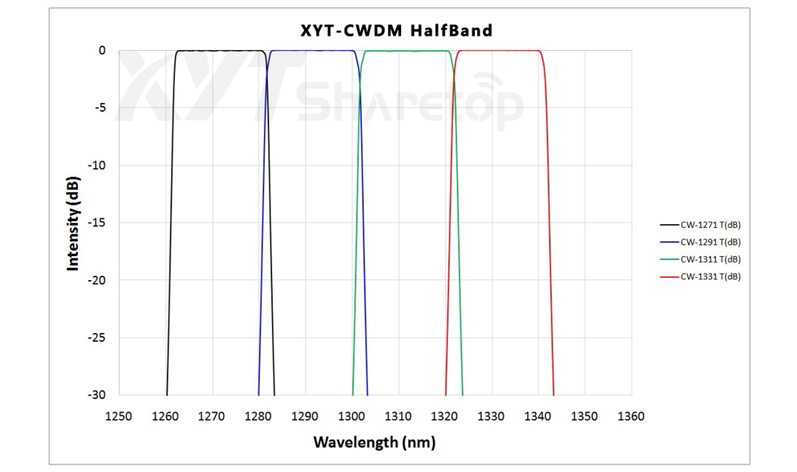

Spectrogram:
Item sequence | Channel number | Center Wavelength (nm) | Color |
1 | 27 | 1270 | Light purple |
2 | 29 | 1290 | Deep sky blue |
3 | 31 | 1310 | Yellow-green |
4 | 33 | 1330 | Ochre is yellow |
5 | 35 | 1350 | Pink |
6 | 37 | 1370 | Light brown |
7 | 39 | 1390 | White |
8 | 41 | 1410 | Silver |
9 | 43 | 1430 | Black |
10 | 45 | 1450 | Yellow-orange |
11 | 47 | 1470 | Gray |
12 | 49 | 1490 | Purple |
13 | 51 | 1510 | Blue |
14 | 53 | 1530 | Green |
15 | 55 | 1550 | Yellow |
16 | 57 | 1570 | Orange |
17 | 59 | 1590 | Red |
18 | 61 | 1610 | Brown |
Ordering Information: | |
Model | Narration |
XYT- CWDM-1U-M/D-8CH(1270~1410)-FU | Coarse wavelength divider multiplexer, 1U rack-mounted, combined + decoupled, 8-channel (1270~1410nm) connector FC/UPC. |
For special specification and parameter requirements, please contact engineers for customization | |
Ordering Information: | ||||
CWDM =CWDM | XYT-CWDM-A-B-C-D-E | |||
A = structure | 1U=19 inch 1U rack mounted | …… | SS = customizable | |
B = module type | MUX=Multiplexer | DEMUX=Demultiplexer | M/D= MUX + DEMUX | SS = customizable |
C = number of channels and wavelength | 4CH=4CH(1270~1310) | 8CH=8CH(1270~1410) | …… | SS = customizable |
D = Special channel | MON = Monitoring End | UPG = Expansion Terminal | S = Optional | |
E = type of joint | LU=LC/UPC | FA=FC/APC | FU=FC/UPC | S = Optional |

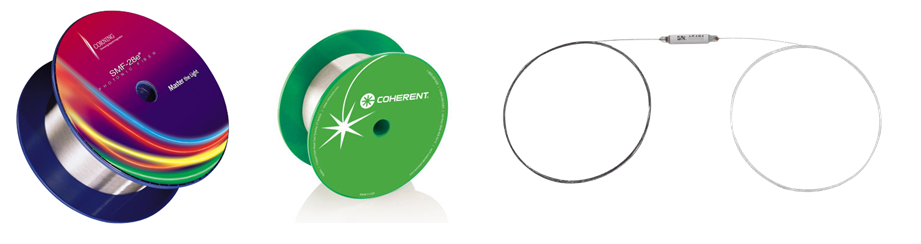

Fiber optic characteristics：
Type | SMF-28e |
Working wavelength | 1285 – 1330@ 1310 nm 1525 – 1575 @ 1550nm |
Numerical aperture NA | 0.080 ± 0.005 |
Numerical aperture of cladding (5%) | ≥ 0.46 |
Mode field diameter | 9.2 ± 0.4µm @1310 nm 10.4 ± 0.5 @ 1550 nm |
Cut off wavelength | 入cf≤ 1280 nm |
Core layer loss | ≤ 0.03 dB/km @ 1310 nm ≤ 0.02 dB/km @ 1550nm |
Envelope attenuation | ≤ 15 dB/km @ 1095 nm |
Coating diameter | 125.0 ± 0.7 µm |
core diameter | 9 µm |
Coating layer diameter | 242.0± 5 µm |
Deviation of cladding/coating layer | < 5.0 µm |
Core/cladding concentricity deviation | ≤ 0.50 µm |
Coating layer material | acrylate |
Long term bending radius | ≥ 13 mm |
Level of strength testing | ≥ 200 kpsi (1.4 GN/m²) |
The optical passive device products delivered by FiberHome undergo rigorous testing, including spectral testing, insertion loss, extinction ratio, tensile testing, isolation testing, etc. Obtained quality certifications such as ISO 9000/ROHS/CE/FC.
At present, XYTshaertop has a 100000 level dust-free workshop of 1000 square meters. Obtained the high-tech enterprise certificate and multiple invention patents issued by the Chinese government. We are committed to producing better passive component products at a good cost. XYTshaertop makes it easier for you to acquire the right technology to achieve your goals, achieve business transformation, and help you stay competitive. We can help you reduce total cost of ownership, save capital, and accelerate growth.
For more information about fiber optic products and equipment, please contact your sales representative or visit http://www.xyt-tech.com http://www.xyt-tech.cn
|
Products damaged due to human or non-use of other causes of improper,we promises one year warranty and lifetime maintenance,but the unauthorized disassembly equipment caused damage is not covered under warranty and returned within range. |
|
Under normal use,if there are product quality problems,or not work normally,we provide free repair or replacement service within one year;Within three years more than one year,we provide to collect the material cost,maintenance free. Repair warranty period of three years from the freight borne by each of the parties.After three years of warranty,the material cost,maintenance,freight(refers to the product of the two-way shipping to and from)shall be borne by the user. |
|
We promise that the product we provide can meet the performance requirements of users , and it is supplied by the user's sample request. |
