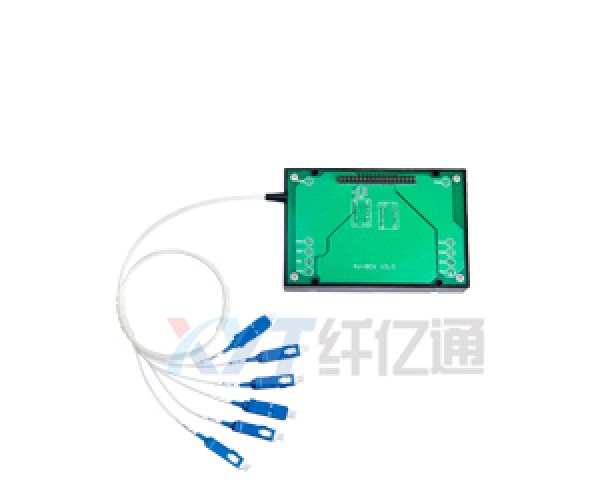

4×4 Optical Switch
- Products description -
XYT-TECH Sharetop 4×4 Optical switch is a kind of device ,with the ability of optical route switch. In optic fiber transmission system, it is used for optical route controlling, LAN, light source / detector changing, and protecting the change of Ethernet etc. In optical fiber test system, it is used for optical fiber and optical fiber device testing, network testing, open-air optical cable testing and optical fiber sensing.
- Product Features -
Low Insertion Loss
Wide Wavelength Range
Low crosstalk
High Stability, High reliability
Parallel Interface (TTL)
Epoxy-free on optical path
- Product Specification -
Ring network
Remote monitoring in optical network
Testing of fiber, optical Component
(Standard) Single stage
Parameters
| 4×4 | |||||
Wavelength Range nm | 1310 or 1490 or 1550 (SM) | 1310 & 1490 & 1550 (SM) | 850 or 1310(MM) | |||
InsertionLoss dB | Typ:1.5 | Max:2.5 | Typ:1.8 | Max:2.8 | Typ:1.8 | Max:2.8 |
PDL dB | ≤0.05 | |||||
ReturnLoss dB | SM≥50、MM≥30 | |||||
WDL dB | ≤0.25 | |||||
TDL dB | ≤0.25 | |||||
Crosstalk dB | SM≥55、MM≥35 | |||||
Repeatability dB | ≤±0.02 | |||||
Power supply v | 5.0 | |||||
Lifetime time | ≥107 | |||||
SwitchTime ms | ≤8 | |||||
Transmission Power mW | ≤500 | |||||
Operation Temperature ℃ | -20～+70 | |||||
Storage Temperature ℃ | -40～+85 | |||||
Dimension mm | (L)110×(W)95×(H)15 | |||||
Ordering Information
Mode | Wavelength | Voltage Type | Fiber Type | Fiber Diameter | Fiber Length | Connector |
S:SM M:MM | 85: 850nm 13: 1310nm 14: 1490nm 15: 1550nm 162: 1625nm 165: 1650nm 13/15:1310/1550nm
| 3: 3V 5: 5V | 5:50/125 6:62.5/125 9: 9/125
| 25:250um 90:900um 20:2.0mm 30: 3.0mm
| 05:0.5m 10:1.0m 15:1.5m
| OO:None FP: FC/PC FA: FC/APC SP: SC/PC SA: SC/APC STP: ST/PC STA: ST/APC LP: LC/PC LA: LC/APC |
|
Products damaged due to human or non-use of other causes of improper,we promises one year warranty and lifetime maintenance,but the unauthorized disassembly equipment caused damage is not covered under warranty and returned within range. |
|
Under normal use,if there are product quality problems,or not work normally,we provide free repair or replacement service within one year;Within three years more than one year,we provide to collect the material cost,maintenance free. Repair warranty period of three years from the freight borne by each of the parties.After three years of warranty,the material cost,maintenance,freight(refers to the product of the two-way shipping to and from)shall be borne by the user. |
|
We promise that the product we provide can meet the performance requirements of users , and it is supplied by the user's sample request. |
