- Products description -

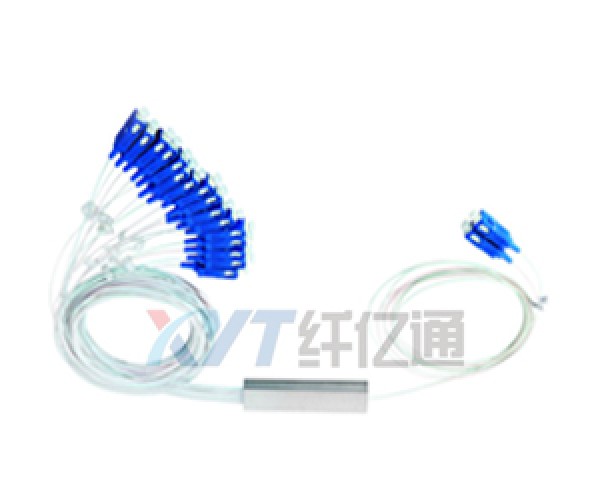

XYT-TECH Sharetop Planar lightwave circuit splitter(PLC Splitter)is a type of optical power management device that is fabricated using silica optical waveguide technology.It features small size,high reliability,wide operating wavelength range and good channel-to-channel uniformity,and is widely used in PON(EPON/GPON)networks to realize optical signal power splitting.We provides whole series of 2xN splitter products that are tailored for specific applications.All PLC Splitter products meet GR-1209-CORE and GR-1221-CORE requirements.
- Product Features -
1.Low insertion loss and low PDL
2.High channel counts
3.Exceptional reliability and stability
4.Wide operating wavelength
5.Wide operating temperature
6.Compact design
- Product Specification -
1.FTTX Systems
2.LAN,WAN and metro networks
3.Analog/Digital passive optical networks
4.CATV networks
5.Other applications in fiber optic systems
Parameters | 2×2 | 2×4 | 2×8 | 2×16 | 2×32 | 2×64 |
Operating Wavelength(nm) | 1260～1650 | |||||
Fiber Type | G657A1 or customer specified | |||||
Insertion Loss(dB)（P/S Grade） | 3.8/4.0 | 7.1/7.3 | 10.2/10.5 | 13.5/13.7 | 16.5/16.9 | 20.5/21.0 |
Loss Uniformity(dB) | 0.4 | 0.6 | 0.8 | 1.2 | 1.5 | 2 |
Polarization Dependent Loss(dB) | 0.2 | 0.2 | 0.2 | 0.25 | 0.3 | 0.35 |
Return Loss(dB)（P/S Grade） | 55/50 | 55/50 | 55/50 | 55/50 | 55/50 | 55/50 |
Directivity(dB) | 55 | 55 | 55 | 55 | 55 | 55 |
Wavelength Dependent Loss(dB) | 0.3 | 0.3 | 0.3 | 0.5 | 0.5 | 0.5 |
Temperature Stability(-40～85℃)(dB) | 0.4 | 0.4 | 0.4 | 0.5 | 0.5 | 0.5 |
Operating Temperature(℃) | -40～85 | |||||
Storage Temperature(℃) | -40～85 | |||||
Device Dimension(mm) | 40×4×4 | 40×4×4 | 40×4×4 | 50×4×4 | 50×7×4 | 60×12×4 |
Module Dimension(mm) | 100×80×10 | 100×80×10 | 100×80×10 | 120×80×18 | 140×115×18 | 140×115×18 |
Mini-Module Dimension(mm) | 50×7×4 | 50×7×4 | 50×7×4 | 60×12×4 | 80×20×6 | 100×40×6 |
Ordering information | |||||||
PLC | Port | Input Pigtall Style | Input Connector | Output Pigtll Style | Fiber Length | Output Connector | Package type |
0204=2x4 0208=2x8 0216=2x16 0232=2x32 0264=2x64 2128=2x128 | 0=bare fiber 1=900um Loose tube 2=900umJacket 3=2.0mmcable 4=3.0mmcable | 0=none 1=SC/PC 2=SC/APC 3=FC/PC 4=FC/APC 5=ST 6=LC 7=LC/APC 8=E2000 S=Special | 0=bare fiber 1=900um Loose tube 2=900um Jacket 3=2.0mmcable 4=3.0mmcable | 0=0.5m 1=1m 2=1.5m 3=2m 4=3m 5=4m S=special | 0=none 1=SC/PC 2=SC/APC 3=FC/PC 4=FC/APC 5=ST/PC 6=LC/PC 7=LC/APC 8=E2000 S=Special | A=4X4X40 B=4X7X50 C=4X12X60 D=4X7X60 E=6X20X80 F=100X80X10 G=120X80X18 H=140X115X18 I=19”1U Rack S=Special | |
|
Products damaged due to human or non-use of other causes of improper,we promises one year warranty and lifetime maintenance,but the unauthorized disassembly equipment caused damage is not covered under warranty and returned within range. |
|
Under normal use,if there are product quality problems,or not work normally,we provide free repair or replacement service within one year;Within three years more than one year,we provide to collect the material cost,maintenance free. Repair warranty period of three years from the freight borne by each of the parties.After three years of warranty,the material cost,maintenance,freight(refers to the product of the two-way shipping to and from)shall be borne by the user. |
|
We promise that the product we provide can meet the performance requirements of users , and it is supplied by the user's sample request. |
