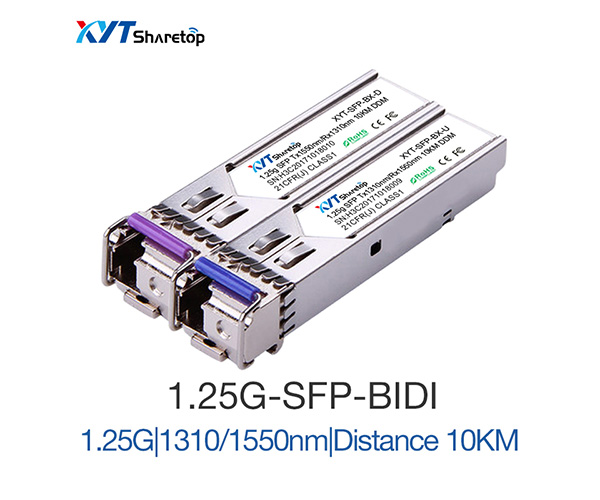

SFP BIDI DDM 1.25G 1310/1550nm(1550/1310nm)10KM Transceiver Small Form Factor Pluggable(SFP)transceivers are compatible with the Small Form Factor Pluggable Multi-Sourcing Agreement(MSA),The transceiver consists of five sections:the LD driver,the limiting amplifier,the digital diagnostic monitor,the 1310nm FP laser(the 1490nm DFB laser)and the PIN photo-detector.
The module data link up to 10KM in 9/125um single mode fiber.The optical output can be disabled by a TTL logic high-level input of Tx Disable,and the system also can disable the module via I2C.Tx Fault is provided to indicate that degradation of the laser.Loss of signal(LOS)output is provided to indicate the loss of an input optical signal of receiver or the link status with partner.The system can also get the(orLink)/Disable/Fault information via I2C register access.
- Product Features -
1．Up to 1.25Gb/s data links
2．FP laser transmitter and PIN photo-detector
3．Up to 10km on 9/125?m SMF
4．Hot-pluggable SFP footprint
5．BIDI LC/UPC type pluggable optical interface
6．Low power dissipation
7．Metal enclosure,for lower EMI
8．RoHS compliant and lead-free
9．Single+3.3V power supply
10．Support Digital Diagnostic Monitoring interface
11．Compliant with SFF-8472
12．Case operating temperature
13．Commercial:0°C to+70°C
14．Extended:-10°C to+80°C
15．Industrial:-40°C to+85°C
- Product Specification -
1．Switch to Switch Interface
2．Gigabit Ethernet
3．Switched Backplane Applications
4．Router/Server Interface
5．Other Optical Links
Table 1-Optical and Electrical Characteristics
Parameter | Symbol | Min | Typical | Max | Unit | Notes | ||
Transmitter | ||||||||
Centre Wavelength | λc | 1260 | 1310 | 1360 | nm | |||
Spectral Width(RMS) | ?λ | 4 | nm | |||||
Average Output Power | Pout | -9 | -3 | dBm | 1 | |||
Extinction Ratio | ER | 9 | dB | |||||
Optical Rise/Fall Time(20%~80%) | tr/tf | 0.26 | ns | |||||
Data Input Swing Differential | VIN | 400 | 1800 | mV | 2 | |||
Input Differential Impedance | ZIN | 90 | 100 | 110 | Ω | |||
TX Disable | Disable | 2 | Vcc | V | ||||
Enable | 0 | 0.8 | V | |||||
TX Fault | Fault | 2 | Vcc | V | ||||
Normal | 0 | 0.8 | V | |||||
Receiver | ||||||||
Centre Wavelength | λc | 1260 | 1580 | nm | ||||
Receiver Sensitivity | -23 | dBm | 3 | |||||
Receiver Overload | -3 | dBm | 3 | |||||
LOS De-Assert | LOSD | -24 | dBm | |||||
LOS Assert | LOSA | -35 | dBm | |||||
LOS Hysteresis | 1 | 4 | dB | |||||
Data Output Swing Differential | Vout | 400 | 1800 | mV | 4 | |||
LOS | High | 2 | Vcc | V | ||||
Low | 0.8 | V | ||||||
NOTE:
1.The optical power is launched into SMF.
2.PECL input,internally AC-coupled and terminated.
3.Measured with a PRBS 27-1 test pattern@1250Mbps,BER ≤1×10-12.
4.Internally AC-coupled.
Parameter
Type | Rate | Wavelength | Transmission Distance | Transmitter power | Receiver sensitivity | Interface | Operating temperature | |
BIDI SFP | 1.25G | 1310/1550nm | 3M | -3~-9 | ≤-22 | LC/SC | 0-70℃ | |
1.25G | 1310/1550nm | 10KM | -3~-9 | ≤-22 | LC/SC | 0-70℃ | ||
1.25G | 1310/1550nm | 40KM | 0~-5 | ≤-24 | LC/SC | 0-70℃ | ||
1.25G | 1490/1550nm | 80KM | 0-3 | ≤-26 | LC/SC | 0-70℃ | ||
1.25G | 1490/1550nm | 120KM | 0-3 | ≤-34 | LC/SC | 0-70℃ | ||
Ordering information
Part No. | Form Factor | Data Rate | Distance | Wavelength | Connector | DDM |
XYT-00854G-S5x(D) | SFP | 4.25G | 500m | 850nm | LC | Y |
XYT-00314G-L1xD | SFP | 4.25G | 10km | 1310nm | LC | Y |
XYT-00314G-L3xD | SFP | 4.25G | 30km | 1310nm | LC | Y |
XYT-00554G-L4XD | SFP | 4.25G | 40km | 1550nm | LC | Y |
XYT-003148-L2x(D) | SFP | 2.5G | 20km | 1310nm | LC | Y |
XYT-008548-S3x(D) | SFP | 2.5G | 300m | 850nm | LC | Y |
XYT-005548-L8x(D) | SFP | 2.5G | 80km | 1550nm | LC | Y |
XYT-003148-L4x(D) | SFP | 2.5G | 40km | 1310nm | LC | Y |
XYT-005548-12CD | SFP | 2.5G | 120km | 1550nm | LC | Y |
XYT-008524-S5x(D) | SFP | 1.25G | 550m | 850nm | LC | Y |
XYT-003124-L2x(D) | SFP | 1.25G | 20km | 1310nm | LC | Y |
XYT-005524-L8C(D) | SFP | 1.25G | 80km | 1550nm | LC | Y |
XYT-003124-L4x(D) | SFP | 1.25G | 40km | 1310nm | LC | Y |
XYT-005524-12C(D) | SFP | 1.25G | 120km | 1550nm | LC | Y |
XYT-003112-L2x(D) | SFP | 622M | 20km | 1310nm | LC | Y |
XYT-003112-L4x(D) | SFP | 622M | 40km | 1310nm | LC | Y |
XYT-008503-02C(D) | SFP | 155M | 2km | 850nm | LC | Y |
XYT-003112-L8x(D) | SFP | 622M | 80km | 1550nm | LC | Y |
XYT-005503-L8CD | SFP | 155M | 80km | 1310nm | LC | Y |
XYT-003103-L2C(D) | SFP | 155M | 20km | 1310nm | LC | Y |
XYT-003103-L4C(D) | SFP | 155M | 40km | 1310nm | LC | Y |
XYT-005503-12CD | SFP | 155M | 120km | 1550nm | LC | Y |
|
