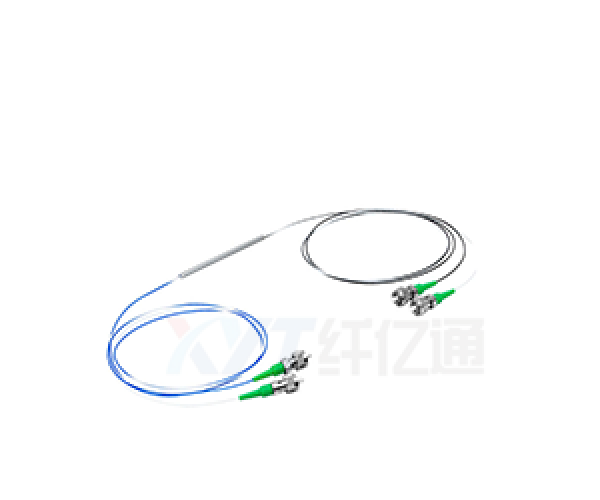

XYT-TECH Sharetop 4 ports optical circulator is a compact high performance lightwave component that transmits the incoming signal from port 1 to port 2,the 2nd signal from port 2 to port 3 and the 3 rd signal from port 3 to port 4.The component provides high isolation,low insertion loss,high extinction ratio,and excellent environment stability.
2.It is a special kind of fiber optic components,with single fiber bidirectional transmission function.This function is often combined with optical fiber grating and other reflection components used in DWDM system.Dual-way communication system,the dispersion compensation,EDFA application and OTDR measurement.
- Product Features -
1.Low insertion loss
2.Wide band high isolation
3.Low PDL
4.Compact in-line package
5.High stability and reliability
6.Epoxy free optical path
- Product Specification -
1.CATV system
2.Telecommunication network system
3.Metro/Access networks
4.Optical amplifier
5.Wavelength add/drop
6.Dispersion compensation
7.Bi-Direction communication
Parameter | P Grade | A Grade | ||
Configuration | Port1 to 2,Port2 to 3,Port3 to 4 | |||
Operation Wavelength(nm) | 1470 to 1610 | |||
Insertion Loss(dB) | Typical | 1 | 1.1 | |
Maximum | 1.2 | 1.3 | ||
Channel Peak Isolation(dB) | >50@1550nm | |||
Channel Isolation(dB) | >40(1520nm~1580nm); >32(1470nm~1610nm) | |||
Channel Cross Talk(dB) | >50 | |||
Polarization Dependent Loss(dB) | <0.20 | |||
Polarization Mode Dispersion(ps) | <0.1 | |||
Return Loss(dB) | >50 | |||
Power Handling(mW) | 300 | |||
Operating Temperature(°C) | 0~+70 | |||
Storage Temperature(°C) | -40~+85 | |||
Dimensions(mm) | 5.5 x L50 |
Above specification are for device without connector.
Ordering Information | ||||||
4ports Optical Circulator | Port | Wavlength | Grade | Fiber Type | Fiber Length | In/Out Connector |
4=4 Port | CL=C+L Band 1525~1610nm | P=P Grade A=A Grade | 1=Bare fiber 2=900um loose tube | 1=1m 2=2m | 0=None 1=FC/APC 2=FC/PC 3=SC/APC 4=SC/PC 5=ST 6=LC S=Specify | |
