- Products description -

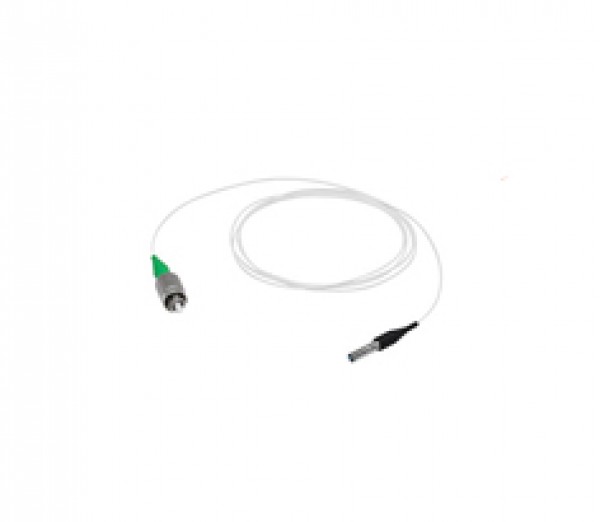

Fiber collimator is the basic element for in-line fiber optics components,it has insertion and high return loss.The unique processing and high quality AR coating also enable this collimator to handle high power.2.Sharetop can provide singlemode and multimode collimator with metal tube or glass tube,C-lens and G-lens are available for customers’ request.Collimators are used in fiber optic component,laser instrument and measurement systems.
- Product Features -
1．Low Insertion Loss
2．Low Back Reflection
3．High Environmental Stability
- Product Specification -
1．Fiberoptic Lab Use
2．Laser Beam Collimating
3．Fiber to Fiber Coupling
Parameters | |||||
Type | Single Fiber | Dual Fiber | |||
Grade | P | A | P | A | |
Wavelength(nm) | 1310,1550 | ||||
Insertion Loss(dB） | (Typ) | 0.07 | 0.15 | 0.1 | 0.2 |
(Max) | 0.15 | 0.2 | 0.2 | 0.25 | |
Return Loss（dB） | 65 | 60 | 60 | 55 | |
Beam Diameter(Max)(nm) | 0.45 | ||||
Power（mW） | 800 | ||||
Fiber Length | Corning SMF-28e | ||||
Operating Temperature（℃） | -20 to+80 | ||||
Storage Temperature(℃) | -40 to+85 | ||||
Above specification are for device without connector.
Ordering Information | ||||||||
Fiber | Type | Wavelength | Working Dist. | Fiber Type | Package | OD | Fiber length | Connector |
S=Single Fiber D=Dual Fiber | S=Single-mode M=Multi-mode | 1=850nm 2=1310nm 3=1550nm X=special | 1=5mm 2=10mm 3=15mm X=special | 1=250um 2=900um | 1=gold plated tube 2=glass plated tube | 1=1.0mm 2=1.8mm | 1=0.5m 2=1.0m 3=1.5m X=special | 0=None 1=FC/APC 2=FC/PC 3=SC/APC 4=SC/PC 5=ST/PC 6=LC/PC X=special |
|
