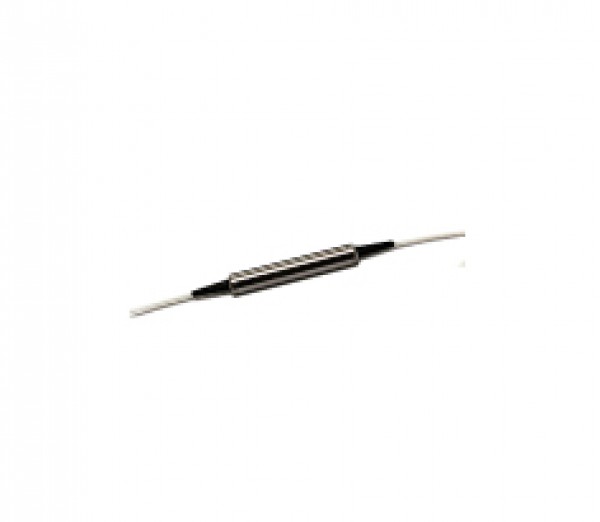

IWDM is a combination of a 980/1550 nm Filter and a 1550 nm polarization insensitive optical isolator.The WDIH is a low cost model with excellent performance including low insertion loss,high isolation,high return loss,low polarization dependent loss(PDL),and low polarization mode dispersion(PMD).This product offers integrated solution to EDFA application by combining more functions into a very compact package.All ADF’ products are Telcordia qualification tested.
- Product Features -
1．Wide Operating Wavelength Range
2．Low Insertion Loss
3．High Channel Isolation
4．Ultra Low PDL&PMD
5．High Stability and Reliability
6．Epoxy Free Optical Path
- Product Specification -
1．Fiberoptic Amplifiers
2．CATV Fiberoptic Links
3．WDM Systems
4．Fiberoptic Instruments
5．Transmitters and Fiber Lasers
6．Laboratory R&D
Parameters | 1480/1550 | 980/1550 | ||
Isolation Stage | Single Stage | Dual Stage | Single Stage | Dual Stage |
Isolation(dB) | >21 | >36 | >21 | >36 |
Isolation Loss(Signal)(dB) | <0.6 | <0.8 | <0.9 | <1.0 |
PMD | <0.25 | <0.05 | <0.25 | <0.05 |
Signal wavelength range(nm) | 1528-1565(C-band) | |||
Pump wavelength range(nm) | 1450-1490 | 960-990 | ||
Isolation Loss(Pump)(dB) | ≤0.5 | ≤0.6 | ||
Transmitted Isolation(Pump)Insertion Loss(dB) | >30 | >30 | ||
Reflected Isolator(Signal)Typ.Insertion Loss(dB) | >15 | >15 | ||
PDL(dB) | <0.10 | |||
WDL(dB) | <0.3 | |||
Return Loss(Min.)(dB) | >50 | |||
Derectivity(dB) | >55 | |||
Thermal stability(dB/°C) | <0.005 | |||
Power Handling(mW) | <500 | |||
Operating Temperature(°C) | 0~+70 | |||
Storage Temperature(°C) | -40~+85 | |||
Package Dimension(mm) | ?5.5 x L38 | |||
Fiber Type | SMF-28 | |||
Above specification are for device without connector.
Ordering Information | ||||||
Stage | Pump type | Wavelength | Pigtail type | Package | Connector | Fiber length |
S=Single stage D=Dual stage | F=Fprward pump B=Backward pump | 1598=T15/R98 1548=T15/R14 etc. | 0=Bare fiber 1=0.9mm 2=2mm 3=3mm S=Specified | 5.5x38mm | FC/PC FC/APC SC/PC SC/APC ect. | 0=0.5m 1=1m 2=2m ect. |
|
