- Products description -

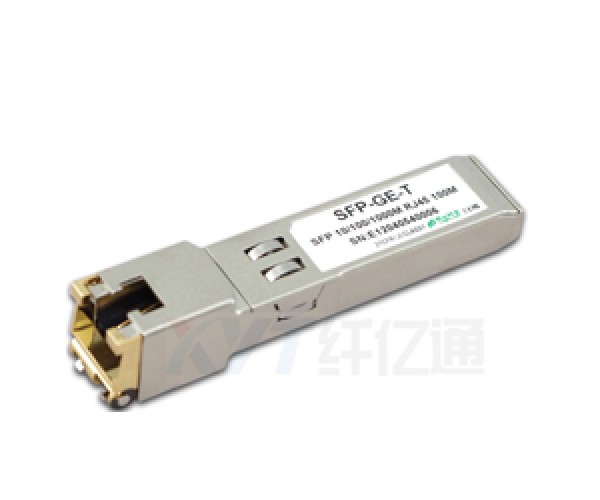

Copper SFP Transceiver Copper Small Form Pluggable(SFP)transceiver module is specifically designed for converting 100Base-FX NRZI port interface to 10/100Base-TX interface with RJ45 connector.The transceiver module is compliant with the SFP MultiSource Agreement(MSA)and IEEE802.3u.With the hot pluggability,the module offers a flexible and easy way to be installed into SFP MSA compliant ports at any time without the interruption of the host equipments operating online.The Copper SFP transceivers use an integrated RJ-45 connector with transformer and PHY IC.
- Product Features -
1．Hot-pluggable SFP footprint
2．Extended case temperature range(0°C to+70°C)
3．Fully metallic enclosure for low EMI
4．Compact RJ-45 connector assembly
5．It supports RX_LOS(Loss of Signal)function
6．Compatible with IEEE802.3u
7．Access to physical layer IC via 2-wire serial bus
8．A 10/100BASE-TX/100BASE-FX converter
- Product Specification -
1．Switch to Switch Interface
2．Gigabit Ethernet
3．Switched Backplane Applications
4．Router/Server Interface
5．Other Optical Links
Table 1-Optical and Electrical Characteristics
Pin | Signal Name | Description | Plug Seq. | Notes |
1 | VEET | Transmitter Ground | 1 | |
2 | TX FAULT | Transmitter Fault Indication | 3 | Note1 |
3 | TX DISABLE | Transmitter Disable | 3 | Note2 |
4 | MOD_DEF(2) | SDA Serial Data Signal | 3 | Note3 |
5 | MOD_DEF(1) | SCL Serial Clock Signal | 3 | Note3 |
6 | MOD_DEF(0) | TTL Low | 3 | Note3 |
7 | Rate Select | Not Connected | 3 | |
8 | LOS | Loss of Signal | 3 | Note 4 |
9 | VEER | Receiver ground | 1 | |
10 | VEER | Receiver ground | 1 | |
11 | VEER | Receiver ground | 1 | |
12 | RX- | Inv.Received Data Out | 3 | Note 5 |
13 | RX+ | Received Data Out | 3 | Note 5 |
14 | VEER | Receiver ground | 1 | |
15 | VCCR | Receiver Power Supply | 2 | |
16 | VCCT | Transmitter Power Supply | 2 | |
17 | VEET | Transmitter Ground | 1 | |
18 | TX+ | Transmit Data In | 3 | Note 6 |
19 | TX- | Inv.Transmit Data In | 3 | Note 6 |
20 | VEET | Transmitter Ground | 1 |
Parameters
Product | Transmission Rate | Wavelength | Transmission distance | Transmitter power | Receiver sensitivity | Interface |
1000base-copper | 100M | - | 100m | - | - | RJ45 |
155M | - | 100m | - | - | RJ45 | |
155M | - | 100m | - | - | RJ45 |
Ordering information
Part No. | Form Factor | Data Rate | Distance | Wavelength | Connector | DDM |
XYT-00854G-S5x(D) | SFP | 4.25G | 500m | 850nm | LC | Y |
XYT-00314G-L1xD | SFP | 4.25G | 10km | 1310nm | LC | Y |
XYT-00314G-L3xD | SFP | 4.25G | 30km | 1310nm | LC | Y |
XYT-00554G-L4XD | SFP | 4.25G | 40km | 1550nm | LC | Y |
XYT-003148-L2x(D) | SFP | 2.5G | 20km | 1310nm | LC | Y |
XYT-008548-S3x(D) | SFP | 2.5G | 300m | 850nm | LC | Y |
XYT-005548-L8x(D) | SFP | 2.5G | 80km | 1550nm | LC | Y |
XYT-003148-L4x(D) | SFP | 2.5G | 40km | 1310nm | LC | Y |
XYT-005548-12CD | SFP | 2.5G | 120km | 1550nm | LC | Y |
XYT-008524-S5x(D) | SFP | 1.25G | 550m | 850nm | LC | Y |
XYT-003124-L2x(D) | SFP | 1.25G | 20km | 1310nm | LC | Y |
XYT-005524-L8C(D) | SFP | 1.25G | 80km | 1550nm | LC | Y |
XYT-003124-L4x(D) | SFP | 1.25G | 40km | 1310nm | LC | Y |
XYT-005524-12C(D) | SFP | 1.25G | 120km | 1550nm | LC | Y |
XYT-003112-L2x(D) | SFP | 622M | 20km | 1310nm | LC | Y |
XYT-003112-L4x(D) | SFP | 622M | 40km | 1310nm | LC | Y |
XYT-008503-02C(D) | SFP | 155M | 2km | 850nm | LC | Y |
XYT-003112-L8x(D) | SFP | 622M | 80km | 1550nm | LC | Y |
XYT-005503-L8CD | SFP | 155M | 80km | 1310nm | LC | Y |
XYT-003103-L2C(D) | SFP | 155M | 20km | 1310nm | LC | Y |
XYT-003103-L4C(D) | SFP | 155M | 40km | 1310nm | LC | Y |
XYT-005503-12CD | SFP | 155M | 120km | 1550nm | LC | Y |
|
Products damaged due to human or non-use of other causes of improper,we promises one year warranty and lifetime maintenance,but the unauthorized disassembly equipment caused damage is not covered under warranty and returned within range. |
|
Under normal use,if there are product quality problems,or not work normally,we provide free repair or replacement service within one year;Within three years more than one year,we provide to collect the material cost,maintenance free. Repair warranty period of three years from the freight borne by each of the parties.After three years of warranty,the material cost,maintenance,freight(refers to the product of the two-way shipping to and from)shall be borne by the user. |
|
We promise that the product we provide can meet the performance requirements of users , and it is supplied by the user's sample request. |
