XYT-MFC-1550
【NO.】MFC-1550-26Nv04

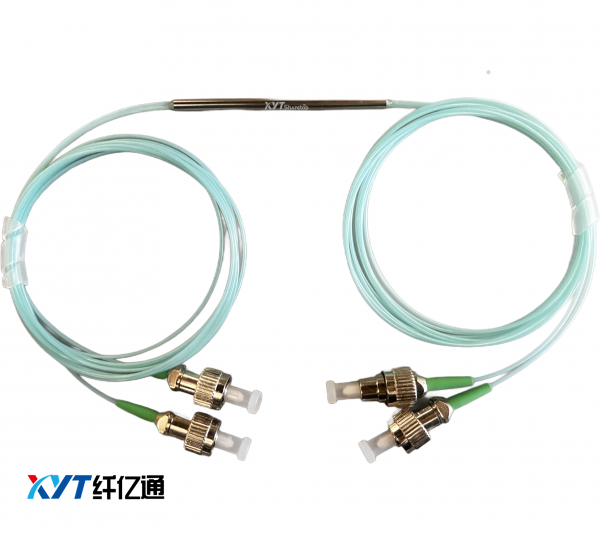

多模光纤拉锥耦合器（1550nm）
1x2或2x2 | |||
中心波长（nm） | 1550 | ||
带宽范围（nm） | ± 40 | ||
分光比/插入损耗(dB) | 定制（1:99~50:50） | P级端口1插损 | A级端口2插损 |
1:99 | 24/4.5 | 25/0.8 | |
2:98 | 22/0.6 | 22.5/0.9 | |
5:95 | 14.8/0.8 | 15/1 | |
10:90 | 11.6/1.2 | 12.2/1.6 | |
20:80 | 8/1.8 | 8.7/2.1 | |
30:70 | 6.2/2.1 | 6.5/2.4 | |
40:60 | 4.9/3 | 5.4/3.5 | |
50:50 | 3.8/3.8 | 4.3/4.3 | |
均匀性(dB) | 0.5 | 0.8 | |
附加损耗 (dB) | 0.4 | 0.7 | |
方向性(dB) | ≥35 | ||
承受功率（W） | 0.5或定制 | ||
回波损耗（dB） | ≥50 | ||
接头类型 | FC/APC 或 定制 | ||
光纤类型 | 多模光纤50/125或62.5/125 | ||
光纤长度（m） | 1米 或 定制 | ||
封装尺寸（mm） | 60 x Ø3.0 | ||
工作温度（℃） | -40~+85 | ||
储存温度（℃） | -40~+85 | ||
最大拉力（N） | ≤5 | ||
*规格为不带连接器，测试数据指标25℃。
*对于带连接器的设备，插入损耗高0.3dB，回波损耗低5dB。
*对于不同功率参数，产品采用封装尺寸不同。

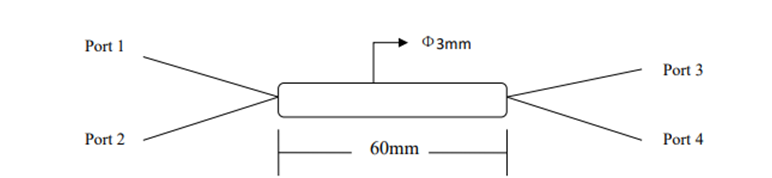

封装结构图：（mm）
订购信息： | |||||
MFC=多模光纤拉锥型耦合器 | XYT-MFC-A-B-C-D-E-F-G-H | ||||
A=结构 | 1X2=1X2 | 2X2=2X2 | 1X3=1X3 | 3X3=3X3 | SS=可定制 |
B=工作波长 | 850=850nm | 1310=1310nm | 1550=1550nm | SS=可定制 | |
C=分光比 | 1/99=1:99 | 10/90=10:90 | 50/50=50:50 | …… | SS=可定制 |
D=光纤类型 | M50=50/125 | M62=62/125 | M10=105/125 | SS=可定制 | |
E=套管类型 | 0.25=250μm | 0.9=900μm | SS=可定制 | ||
F=光纤长度 | 1M=1米 | 2M=2米 | 3M=3米 | …… | SS=可定制 |
G=接头类型 | FA=FC/APC | SA=SC/APC | SA9=SMA905 | N=不含头 | SS=可选 |
H=承受功率 | 05=0.5W | …… | SS=可定制 | ||
类型 | 50/125μm | 62/125μm | 105/125μm | |
芯直径 | 50±2.5μm | 62.5±2.5μm | 105.0±3.0 | |
芯不圆度 | ≤5.0% | ≤5.0% | ≤3.0% | |
包层直径 | 125.0±1.0μm | 125.0±1.0μm | 125.0±2.0 | |
包层不圆度 | ≤1.0% | ≤1.0% | ≤2.0% | |
涂层直径 | 245±7μm | 245±7μm | 245±7μm | |
涂层/包层同心度 | ≤10.0 | ≤10.0 | N/A | |
涂层不圆度 | ≤6.0 | ≤6.0 | N/A | |
芯层/包层同心度 | ≤1.5 | ≤1.5 | N/A | |
衰减 | 850nm@≤2.3dB/km | 850nm@≤2.7dB/km | 850nm@≤4.0km | |
1300nm@≤0.6dB/km | 1300nm@≤0.6dB/km | 1300nm@≤8.0km | ||
满注入带宽 | 850nm@≥500MHz·km | 850nm@≥200MHz·km | N/A | |
1300nm@≥500MHz·km | 1300nm@≥500Hz·km | N/A | ||
数值孔径 | 0.200±0.015 | 0.275±0.015 | 0.22±0.02 | |
零色散波长≤0.001（1458-λ0 ） | ≤0.105ps/(nm2·km） | ≤0.11 | N/A | |
≤0.000375ps/(nm2·km | ≤0.001（1458-λ0 ） | N/A | ||
|
