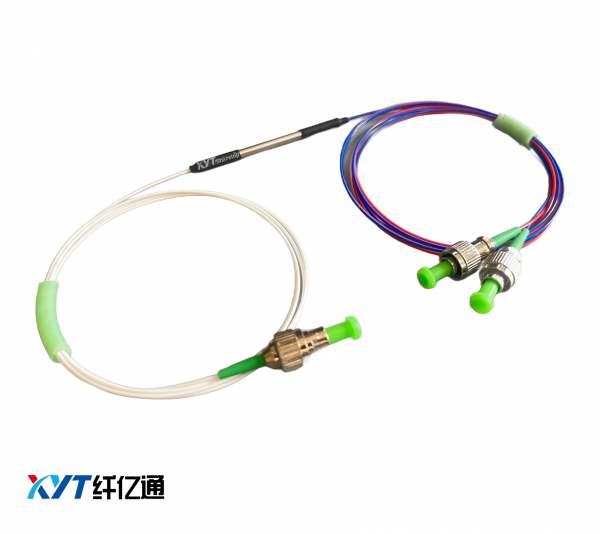

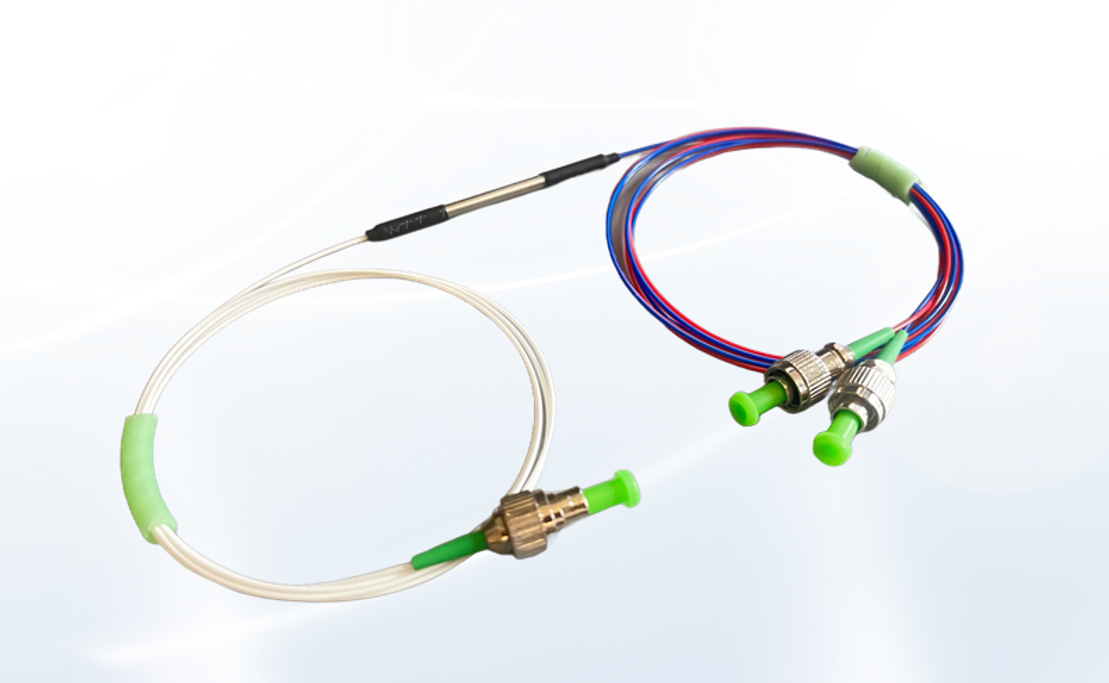

单模光纤拉锥耦合器（485nm） FBT-488-26Nv03
l 低插入损耗 l 中心波长：485nm
l 高稳定性、高可靠性 l 460-HP光纤
l 按功率比传输 l 裸纤、套管、接头类型可选
l 中心波长可选 l 承受功率可选
l 多项可定制化 l 紧凑结构
1x2或2x2 | |||
中心波长（nm） | 485 | ||
带宽范围（nm） | ±10 | ||
插入损耗(dB) | 定制（1:99~50:50） | 端口1插损 | 端口2插损 |
50:50 | 3.8 | 3.8 | |
方向性(dB) | 50 | ||
附加损耗 (dB) | ≤2 | ||
偏振相关损耗(dB) | ≤0.2 | ||
承受功率（W） | 0.5 | ||
回波损耗（dB） | 50 | ||
接头类型 | FC/APC 或 其它 | ||
光纤类型 | 460-HP | ||
光纤长度（m） | 1米 或 定制 | ||
封装尺寸（mm） | 60 x Ø3.0 | ||
工作温度（℃） | -40~+85 | ||
储存温度（℃） | -40~+85 | ||
最大拉力（N） | ≤5 | ||
分光比（%） | 参数误差（%） | 端口1插损 | 端口2插损 |
0.5/99.5 | ±0.2 | 23 | 0.2 |
1/99 | ±0.4 | 22 | 0.35 |
3/97 | ±0.7 | 17 | 0.5 |
5/95 | ±0.8 | 14.8 | 0.8 |
10/90 | ±1.2 | 11.6 | 1.2 |
20/80 | ±2 | 8.0 | 1.5 |
30/70 | ±2.2 | 5.8 | 2.0 |
40/60 | ±2.2 | 5.2 | 3.1 |
50/50 | ±3.5 | 3.8 | 3.8 |
*规格为不带连接器，测试数据指标25℃。
*对于带连接器的设备，插入损耗高0.3dB，回波损耗低5dB。
*对于不同功率参数，产品采用封装尺寸不同。

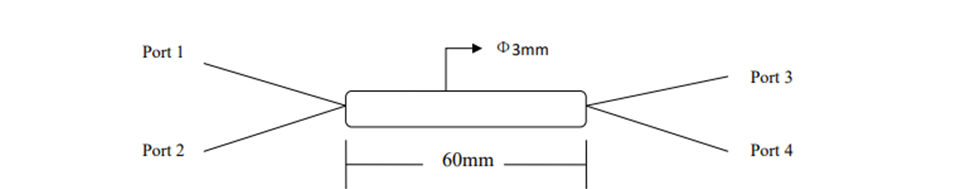

封装结构图：（mm）
订购信息： | |||||||
FBT=拉锥型耦合器 | XYT-FBT-A-B-C-D-E-F-G | ||||||
A=结构 | 1X2=1X2 | 2X2=2X2 | …… | SS=可定制 | |||
B=工作波长 | 485=485nm | SS=可定制 | |||||
C=分光比 | 1/99=1:99 | 10/90=10:90 | 50/50=50:50 | SS=可定制 | |||
D=光纤类型 | 46= 460-HP | SS=可定制 | |||||
E=套管类型 | 0.25=250μm | 0.9=900μm | …… | S=可选 | |||
F=光纤长度 | 1M=1米 | 2M=2米 | …… | SS=可定制 | |||
G=接头类型 | FA=FC/APC | SA=SC/APC | N=不含头 | S=可选 | |||
H=承受功率 | 05=0.5W | SS=可定制 | |||||

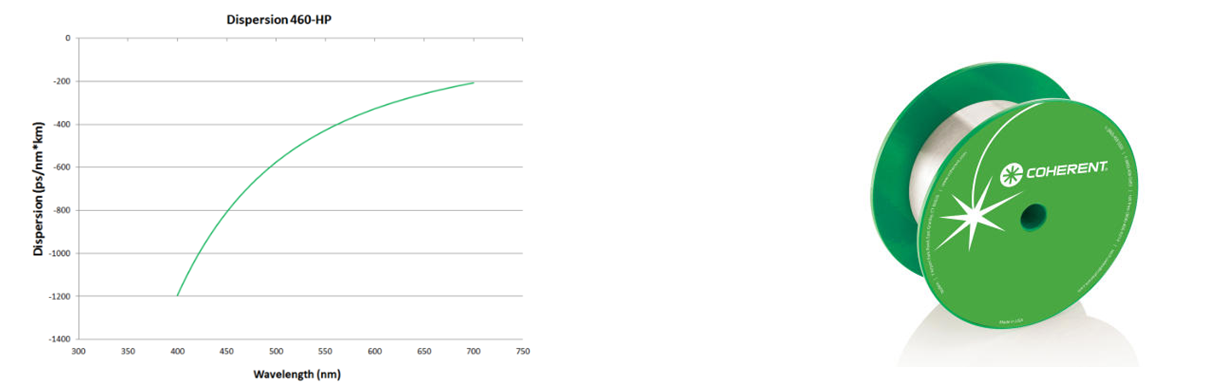

光纤特性：
类型 | 405-HP | 460-HP |
工作波长 | 400 – 550 nm | 450 – 600 nm |
数值孔径 | 0.130 | 0.130 |
模场直径（Gaussian） | 3.5 ± 0.5 µm @ 515 nm | 3.5 ± 0.5 µm @ 515 nm |
截止波长 | 370 ± 20 nm | 430 ± 20 nm |
损耗衰减 | ≤ 30.0 dB/km @ 515 nm ≤ 12.0 dB/km @ 630 nm | ≤ 12.0 dB/km @ 630 nm ≤ 30.0 dB/km @ 515 nm |
包层直径 | 125.0 ± 1.0 µm | 125.0 ± 1.0 µm |
芯径 | 2.1 µm | 2.5 µm |
涂覆层直径 | 245.0 ± 15.0 µm | 245.0 ± 15.0 µm |
包层/涂覆层偏差 | < 5.0 µm | < 5.0 µm |
纤芯/包层同心度偏差 | ≤ 0.50 µm | ≤ 0.50 µm |
涂覆层材料 | 丙烯酸酯 | 丙烯酸酯 |
工作温度 | -55 to 85 °C | -55 to 85 °C |
短期弯曲半径 | ≥ 6 mm | ≥ 6 mm |
长期弯曲半径 | ≥ 13 mm | ≥ 13 mm |
强度测试的等级 | ≥ 200 kpsi (1.4 GN/m²) | ≥ 200 kpsi (1.4 GN/m²) |
|
