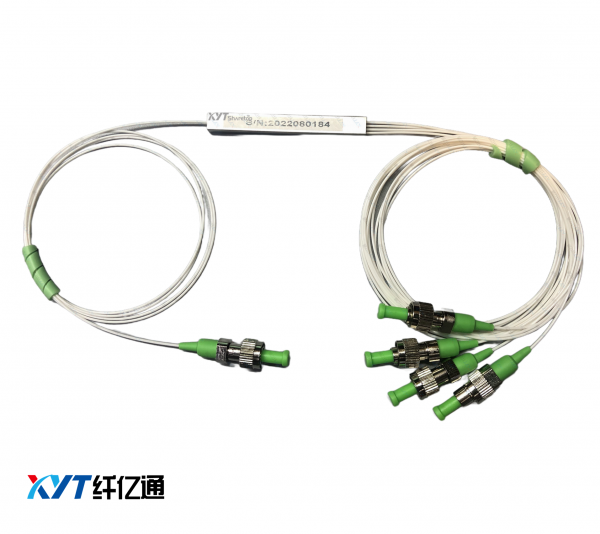

XYT-PLC-ALL
NO.】PLC-ALL-01

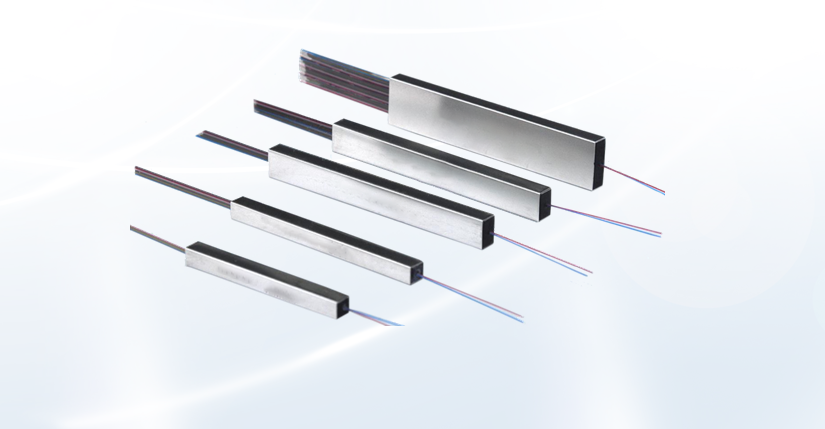

PLC平面波导分路器（1260~1650nm）
结构类型 | 1x2 | 2x2 | 1x4 | 2x4 | 1x8 | 2x8 | 1x16 | 2x16 | 1x32 | 2x32 | 1x64 |
工作波长（nm） | 1260~1650 | ||||||||||
插入损耗 (dB) | 3.8 | 4.0 | 7.1 | 7.6 | 10.2 | 11.0 | 13.5 | 14.4 | 16.5 | 17.5 | 20.5 |
均匀性(dB) | 0.4 | 0.6 | 0.6 | 1.0 | 0.8 | 1.2 | 1.2 | 1.5 | 1.5 | 2.0 | 2.0 |
偏振相关损耗(dB) | 0.2 | 0.2 | 0.2 | 0.2 | 0.2 | 0.3 | 0.25 | 0.3 | 0.3 | 0.4 | 0.35 |
方向性(dB) | 55 | 55 | 55 | 55 | 55 | 55 | 55 | 55 | 55 | 55 | 55 |
回波损耗（dB） | 55 | 55 | 55 | 55 | 55 | 55 | 55 | 55 | 55 | 55 | 55 |
偏振相关损耗（dB） | 0.3 | 0.3 | 0.3 | 0.4 | 0.3 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 |
温度稳定性（dB） | 0.4 | 0.4 | 0.4 | 0.4 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.4 |
承受功率（W） | 0.5、1W 或 定制 | ||||||||||
接头类型 | 不含头 或 定制 | ||||||||||
光纤类型 | G657.A1或 定制 | ||||||||||
光纤长度（m） | 1米 或 定制 | ||||||||||
封装尺寸（mm） | 定制 | ||||||||||
工作温度（℃） | -5~+85 | ||||||||||
储存温度（℃） | -40~+85 | ||||||||||
最大拉力（N） | ≤5 | ||||||||||
*规格为不带连接器，测试数据指标25℃。
*对于带连接器的设备，插入损耗高0.3dB，回波损耗低5dB。
*对于不同功率参数，产品采用封装尺寸不同。
订购信息： | |||||||
PLC=PLC平面波导分路器 | XYT-PLC-A-B-C-D-E-F-G-I | ||||||
A=工作波长 | ALL=1260~1650nm | SS=可定制 | |||||
B=结构 | 1X2=1X2 | 2X2=2X2 | …… | SS=可定制 | |||
C=分光比 | GPA=均分 | SS=可定制 | |||||
D=光纤类型 | G657.A1= G657.A1 | SS=可定制 | |||||
E=套管类型 | 0.25=250μm | 0.9=900μm | …… | SS=可定制 | |||
F=光纤长度 | 1M=1米 | 2M=2米 | …… | SS=可定制 | |||
G=接头类型 | FA=FC/APC | SA=SC/APC | N=不含头 | SS=定制 | |||
H=承受功率 | 1=1W | SS=可定制 | |||||

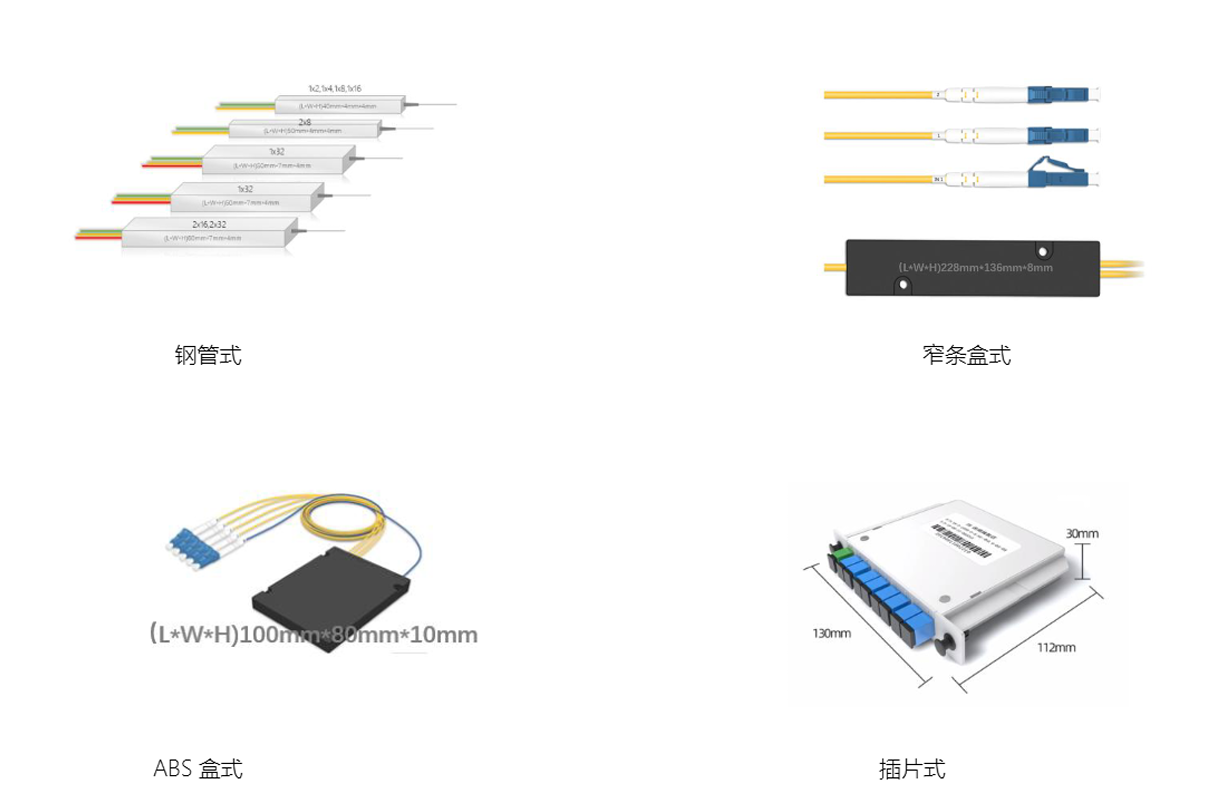

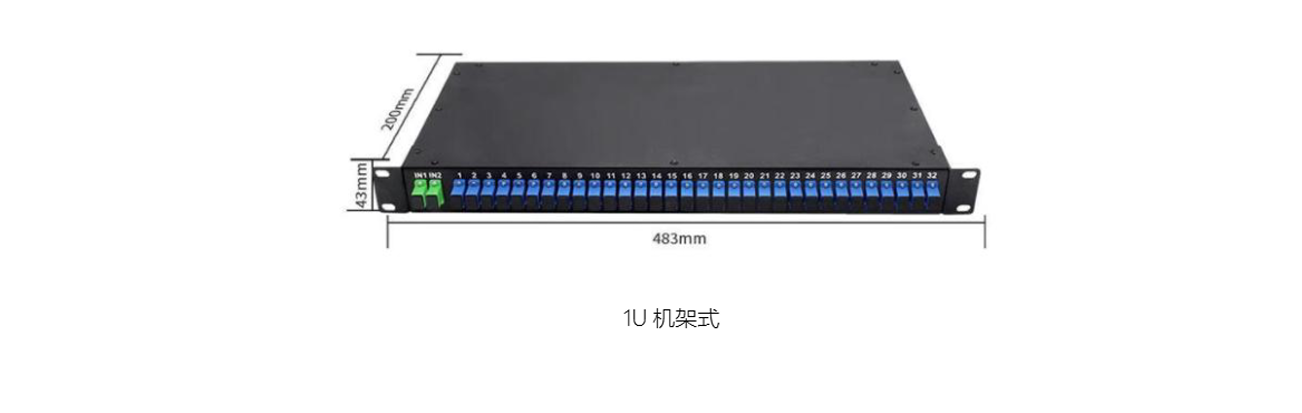

I=封装尺寸 | SP=钢管式 | ABS=ABS盒式 | 1U=1U机架式 | …… | SS=可定制 | ||
|
