XYT-MWDM-3ort-01

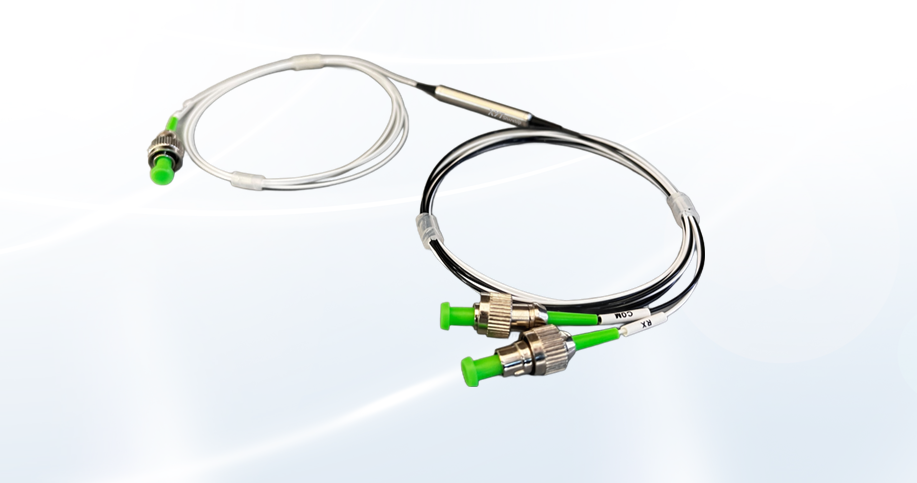

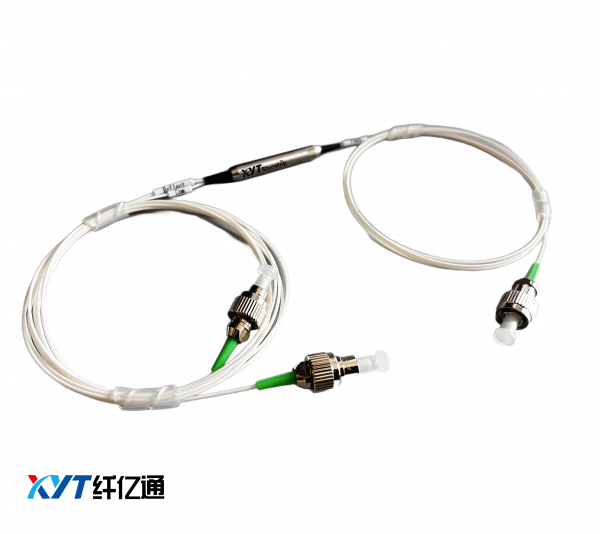

滤玻片型MWDM单模光纤波分复用器
1x2 | ||||
中心波长（nm） | 中心波长（nm） | |||
CH1 | 1267.5 | CH7 | 1327.5 | |
CH2 | 1274.5 | CH8 | 1334.5 | |
CH3 | 1287.5 | CH9 | 1347.5 | |
CH4 | 1294.5 | CH10 | 1354.5 | |
CH2 | 1307.5 | CH11 | 1367.5 | |
CH6 | 1314.5 | CH12 | 1374.5 | |
波长范围（nm） | 1260~1620 | |||
通道间隔（nm） | ITU+1±3.5 | |||
带宽范围（nm）@ -0.3dB | ±2.6 | |||
透射端口 | 插入损耗(dB) | ≤0.6 | ||
相邻隔离度(dB) | ≥25 | |||
非相邻隔离度(dB) | ≥40 | |||
反射端口 | 插入损耗(dB) | ≤0.4 | ||
隔离度(dB) | ≥13 | |||
回波损耗(dB) | ≥45 | |||
方向性(dB) | ≥45 | |||
承受功率（W） | 0.5 | |||
接头类型 | FC/APC 或 其它 | |||
光纤类型 | SMF-28e | |||
光纤长度（m） | 1米 或 定制 | |||

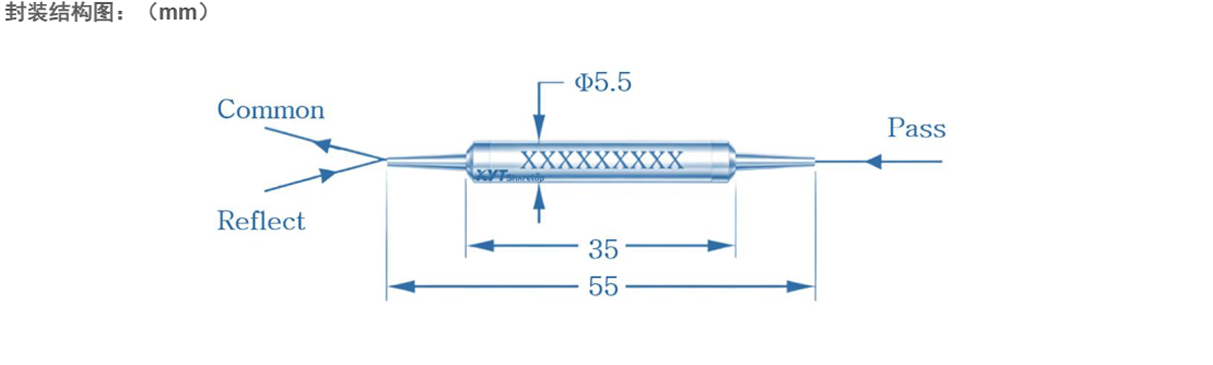

封装尺寸（mm） | Ø5.5 x 35 | |||
ABS盒式 | ||||
工作温度（℃） | -5~+70 | |||
储存温度（℃） | -40~+85 | |||
最大拉力（N） | ≤5 | |||
*规格为不带连接器，测试数据指标25℃。
*对于带连接器的设备，插入损耗高0.3dB，回波损耗低5dB。
*对于不同功率参数，产品采用封装尺寸不同。

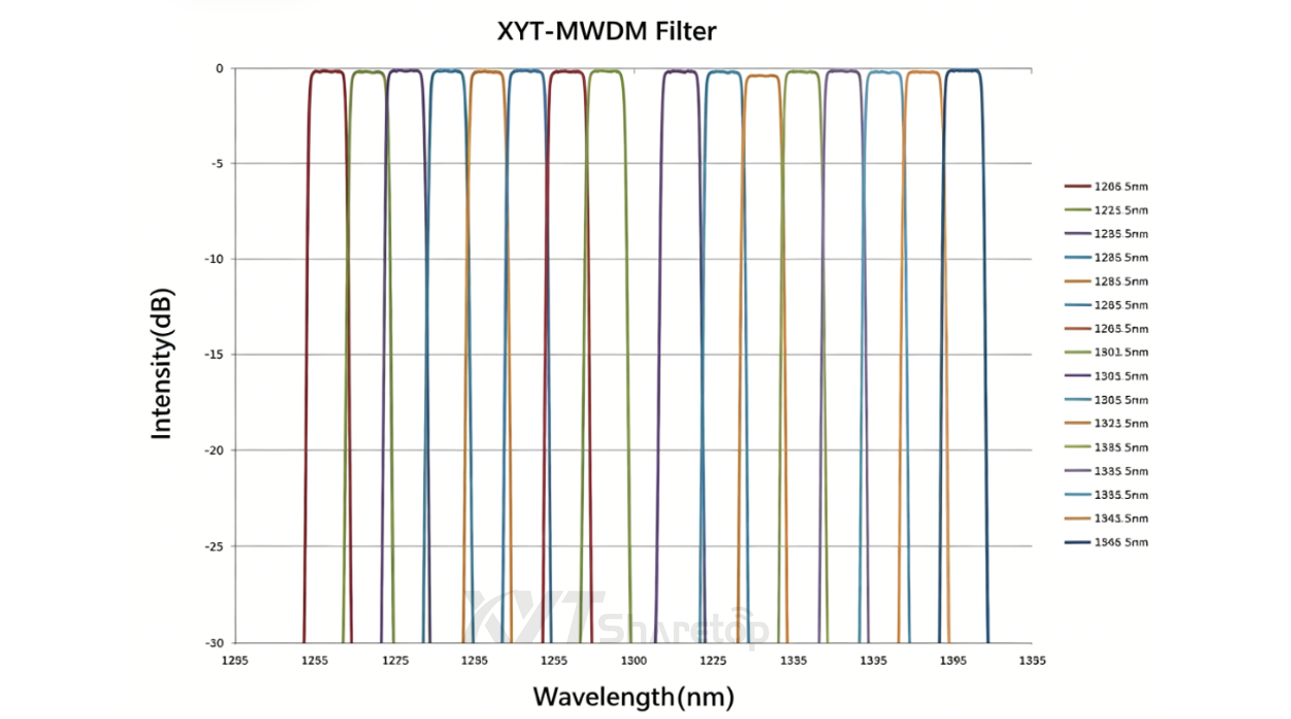

频谱图（dB）
订购信息： | |||||
MWDM=滤玻片型波分复用器 | XYT-MWDM-A-B-C-D-E-F-G | ||||
A=结构 | 1X2=1X2 | …… | SS=可定制级联 | ||
B=工作波长 | CH1=T1267.5nm | …… | CH12=T1374.5nm | S=可选 | |
C=光纤类型 | Se= SMF-28e | S=可选 | |||
D=套管类型 | 0.25=250μm | 0.9=900μm | …… | S=可选 | |
E=光纤长度 | 1M=1米 | 2M=2米 | …… | SS=可定制 | |
F=接头类型 | FA=FC/APC | SA=SC/APC | N=不含头 | S=可选 | |
G=承受功率 | 05=0.5W | S=可选 | |||
光纤特性：
类型 | SMF-28e |
工作波长 | 1285 – 1330@ 1310 nm 1525 – 1575 @ 1550nm |
数值孔径NA | 0.080 ± 0.005 |
包层数值孔径(5%) | ≥ 0.46 |
模场直径 | 9.2 ± 0.4µm @1310 nm 10.4 ± 0.5 @ 1550 nm |
截止波长 | 入cf≤ 1280 nm |
芯层损耗 | ≤ 0.03 dB/km @ 1310 nm ≤ 0.02 dB/km @ 1550nm |
包层衰减 | ≤ 15 dB/km @ 1095 nm |
包层直径 | 125.0 ± 0.7 µm |
芯径 | 9 µm |
涂覆层直径 | 242.0± 5 µm |
包层/涂覆层偏差 | < 5.0 µm |
纤芯/包层同心度偏差 | ≤ 0.50 µm |
涂覆层材料 | 丙烯酸酯 |
长期弯曲半径 | ≥ 13 mm |
强度测试的等级 | ≥ 200 kpsi (1.4 GN/m²) |
|
