XYT-PMCWDM-ABS-M/D
【NO.】PMCWDM-TFF-26Nv04

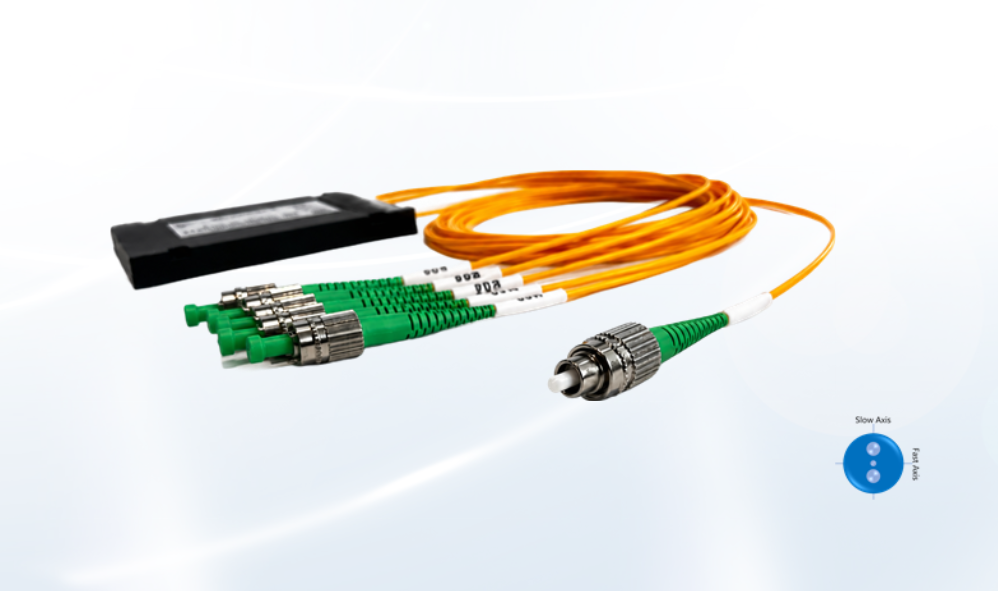

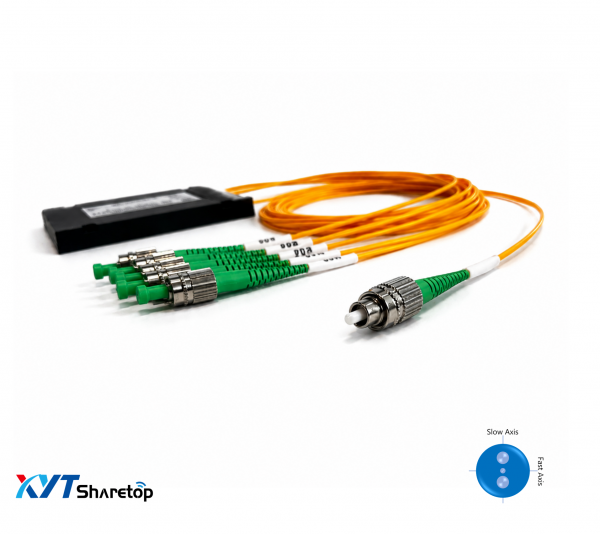

ABS box PM CWDM（1270~1610nm）
l Low insertion loss l Center wavelength: 1270~1610nm
l High stability and reliability l PM1300/PM1550 fiber
l Compact structure l Bare fiber, sleeve, and joint types are optional
lCenter wavelength optional l Acceptable power options
l Multiple customizable options

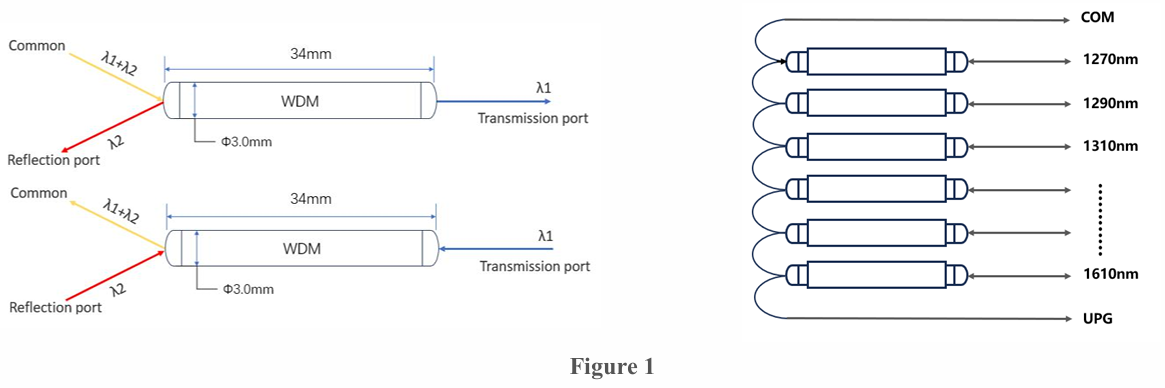

A wavelength division multiplexer is a device that can couple two or more different wavelengths of optical signals in a single core optical fiber for transmission. Conversely, it can also separate and demultiplexing two or more different wavelengths of optical signals in a single core optical fiber separately. As shown in the figure, two different beams of light are input from the common end. WDM devices allow one specific wavelength of light to be transmitted and output at the transmitting end, while the remaining wavelengths are reflected and coupled to the reflecting end for output, which is the process of light splitting. Similarly, the optical path of WDM devices is reversible.

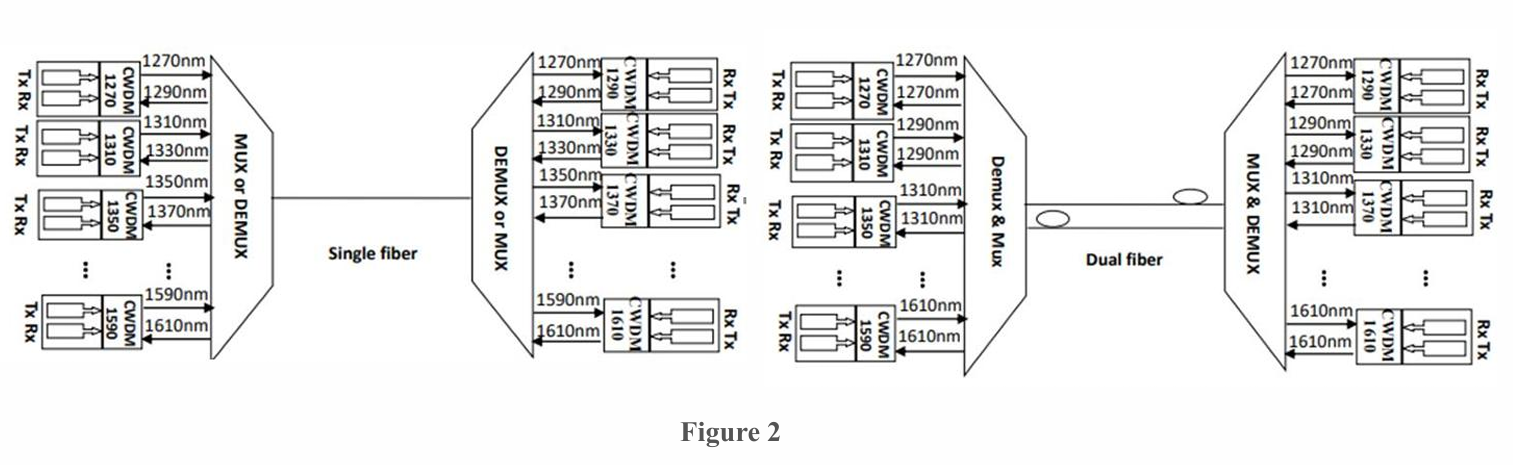

The CWDM module of the coarse wavelength division multiplexer adopts TFF (Thin Film Filter) technology, which complies with the ITU-T G.694.2 standard and has one channel every 20nm in the range of 1270-1610 nm. It can carry 2-18 CWDM wavelengths through a single fiber optic cable, and each wavelength will not affect the other, so the signal will not interfere. Each channel is usually transparent to the speed and type of data, so any combination of transmission service types can be transmitted simultaneously through a single fiber or a pair of fibers.
Insertion loss calculation: the ratio of optical power between input and output ports
Structural type | 2CH~18CH | |||
Center wavelength (nm) | ITU or ITU+1 | |||
Wavelength range (nm) | 1260~1460 or 1460~1620 or 1260~1620 | |||
Channel spacing (nm) | 20 | |||
Bandwidth range (nm) | ±6.5 | |||
Insertion loss (dB) | 4CH | 8CH | 16CH | 18CH |
≤1.6 | ≤2.5 | ≤4.2 | ≤5.3 | |
Isolation between adjacent channels (dB) | ＞30 | |||
Non adjacent channel isolation (dB) | ＞45 | |||
Minimum Return Loss (dB) | 50 | |||
Minimum extinction ratio (dB) | 20 | |||
Maximum wavelength thermal stability (nm/℃) | 0.003 | |||
Insertion loss temperature sensitivity (dB/℃) | 0.005 | |||
Enduring power (W) | 0.5 | |||
Polarization Mode Dispersion | ＜0.05 | |||
UPG isolation (dB) | 12 | |||
Connector Type | FC/APC or other | |||
Fiber Type | PM1310, PM1550 or other | |||
Fiber length (m) | 1M or customized | |||
Package size (mm) | ABS box type | |||
Working temperature (℃) | -5~+70 | |||
Storage temperature (℃) | -40~+85 | |||
Maximum tensile force (N) | ≤5 | |||
*The specification is without a connector, and the test data indicator is 25 ℃.
*For devices with connectors, IL is 0.3dB high, RL is 5dB low, and ER is 2dB low. Align the key key with the slow axis.
*For different power parameters, the product adopts different packaging sizes.

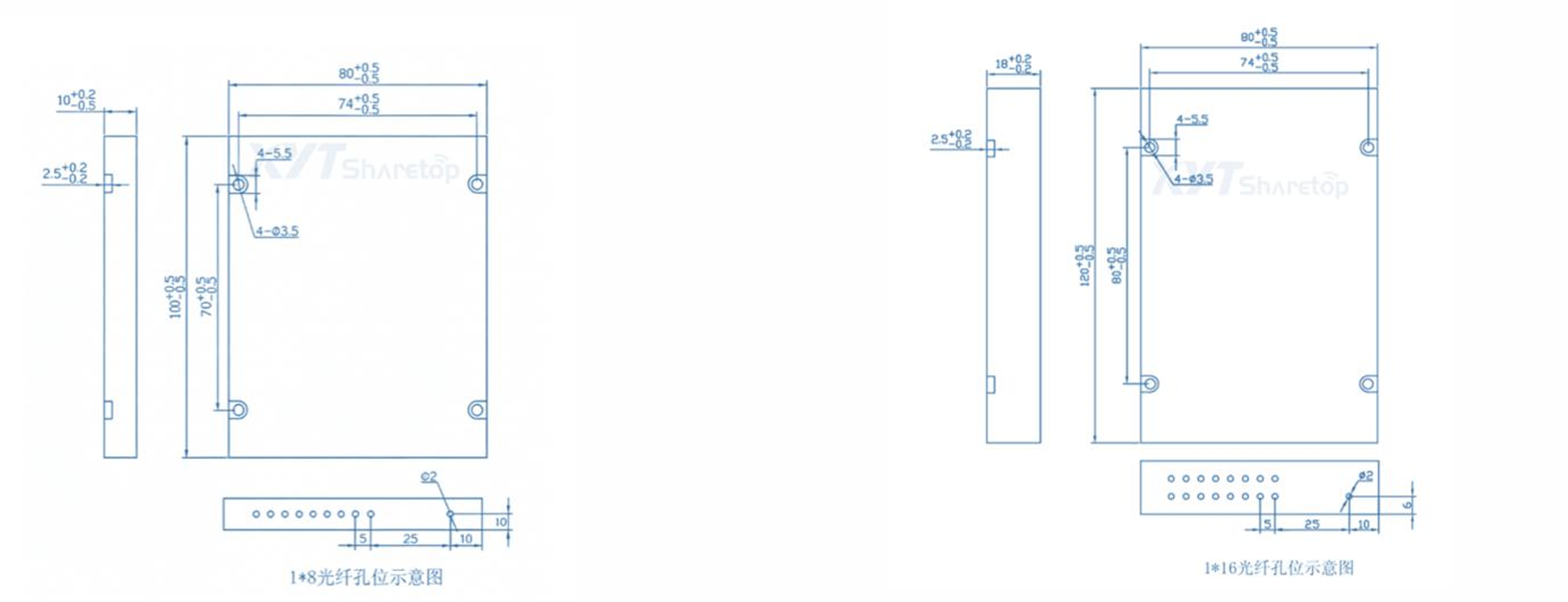

Packaging structure diagram (mm):

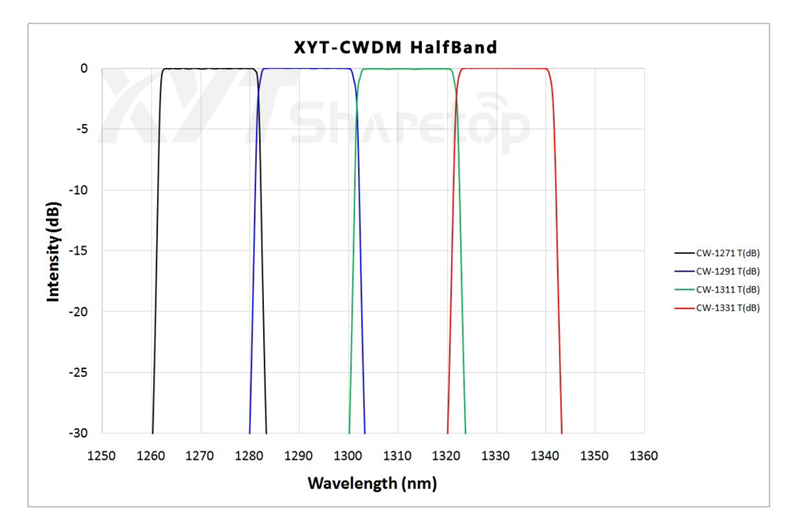

Spectrum diagram (dB):
Item sequence | Channel number | Center wavelength (nm) | color |
1 | 27 | 1270 | Lavender |
2 | 29 | 1290 | Deep Sky Blue |
3 | 31 | 1310 | yellow-green |
4 | 33 | 1330 | Ochre yellow |
5 | 35 | 1350 | pink |
6 | 37 | 1370 | light brown |
7 | 39 | 1390 | White |
8 | 41 | 1410 | silvery |
9 | 43 | 1430 | 黑色black |
10 | 45 | 1450 | yellow-orange |
11 | 47 | 1470 | grey |
12 | 49 | 1490 | Purple |
13 | 51 | 1510 | 蓝色blue |
14 | 53 | 1530 | green |
15 | 55 | 1550 | yellow |
16 | 57 | 1570 | Orange |
17 | 59 | 1590 | red |
18 | 61 | 1610 | brown |
Ordering Notice: | |
Model | Description |
XYT- PMCWDM-ABS-M/D-4CH(1490~1550)-P15-2.0-1M-FA | Polarization maintaining coarse wavelength division multiplexer module, ABS box type, Multiplexing+Demultiplexing, customized 4-channel (1490-1550nm) PM1550 optical fiber, 2mm sleeve, 1-meter fiber length, FC/APC connector. |
Special requirements for specifications and parameters, contact the engineer for customization | |
Ordering information: | |||||
PMCWDM=polarization maintaining coarse wavelength division multiplexer module | XYT-PMCWDM-A-B-C-D-E-F-G | ||||
A=Structure | ABS=ABS Box | …… | SS=Customizable | ||
B=Module type | MUX=Multiplexer | DEMUX=Demultiplexer | M/D= MUX + DEMUX | S=optional | |
C=number of channels and wavelength | 4CH=4CH(1270~1310) | 8CH=8CH(1270~1410) | …… | SS=Customizable | |
D=Fiber optic type | P13= PM1310 | P15= PM1550 | S=optional | ||
E=Type of casing | 09=900μm | 2.0=2.0mm | 3.0=3.0mm | S=optional | |
F=fiber length | 1M=1 meter | 2M=2 meters | …… | S=optional | |
G=connector type | FA=FC/APC | SA=SC/APC | …… | N= None | S=optional |

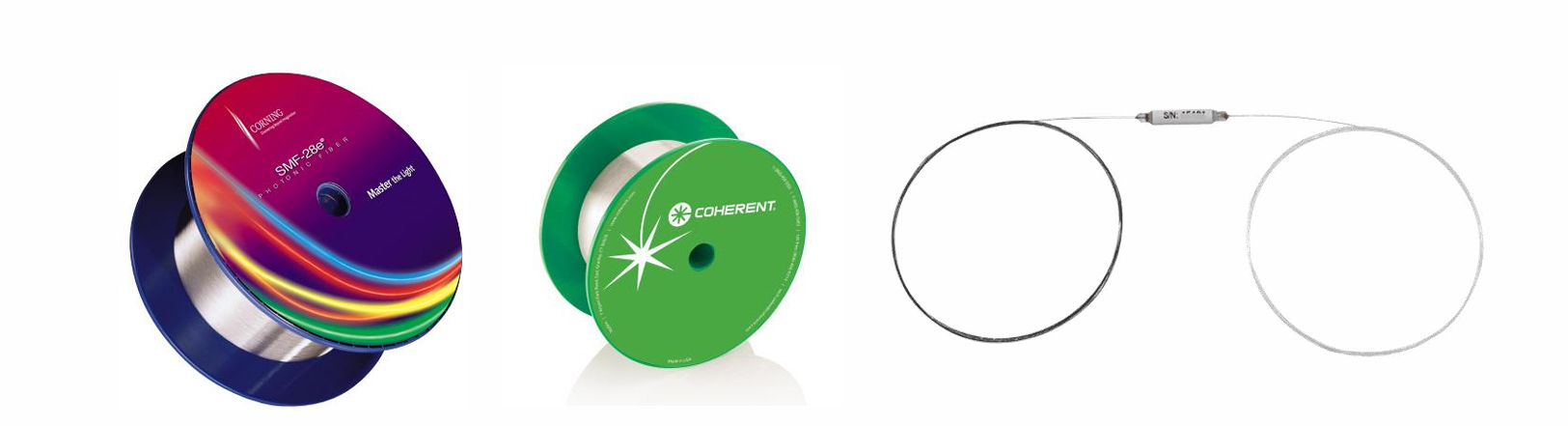

Fiber optic characteristics:
Type | PM1300-XP | PM1550-XP |
Operating Wavelength | 1270 – 1625 nm | 1440 – 1625 nm |
numerical aperture | 0.120 | 0.125 |
Mode field diameter (Gaussian) | 9.3 ± 0.5 µm @ 1300 nm | 10.1 ± 0.4 µm @ 1550 nm |
cutoff wavelength | 1210 ± 60 nm | 1380 ± 60 nm |
Loss attenuation | ≤ 1.0 dB/km @ 1300 nm | ≤ 1.0 dB/km @ 1550 nm |
Beat frequency length (nominal) | ≤ 4 mm @ 1300 nm | ≤ 5.0 mm @ 1550 nm |
Normalized Crosstalk | ≤ - 40.0 dB at 4 m @ 1300 nm | ≤ - 40.0 dB at 4 m @ 1550 nm |
≤ - 30.0 dB at 100 m @ 1300 nm | ≤ - 30.0 dB at 100 m @ 1550 nm | |
Cladding Diameter | 125.0 ± 1.0 µm | 125.0 ± 1.0 µm |
Core diameter | 8.0 µm | 8.5 µm |
Coating layer diameter | 245.0 ± 15.0 µm | 245.0 ± 15.0 µm |
Deviation of cladding/coating layer | < 5.0 µm | < 5.0 µm |
Core/cladding concentricity deviation | ≤ 0.50 µm | ≤ 0.50 µm |
Coating layer material | Acrylate | Acrylate |
Operating temperature | -40 to 85 °C | -40 to 85 °C |
Level of strength testing | ≥ 200 kpsi (1.4 GN/m² | ≥ 200 kpsi (1.4 GN/m² |

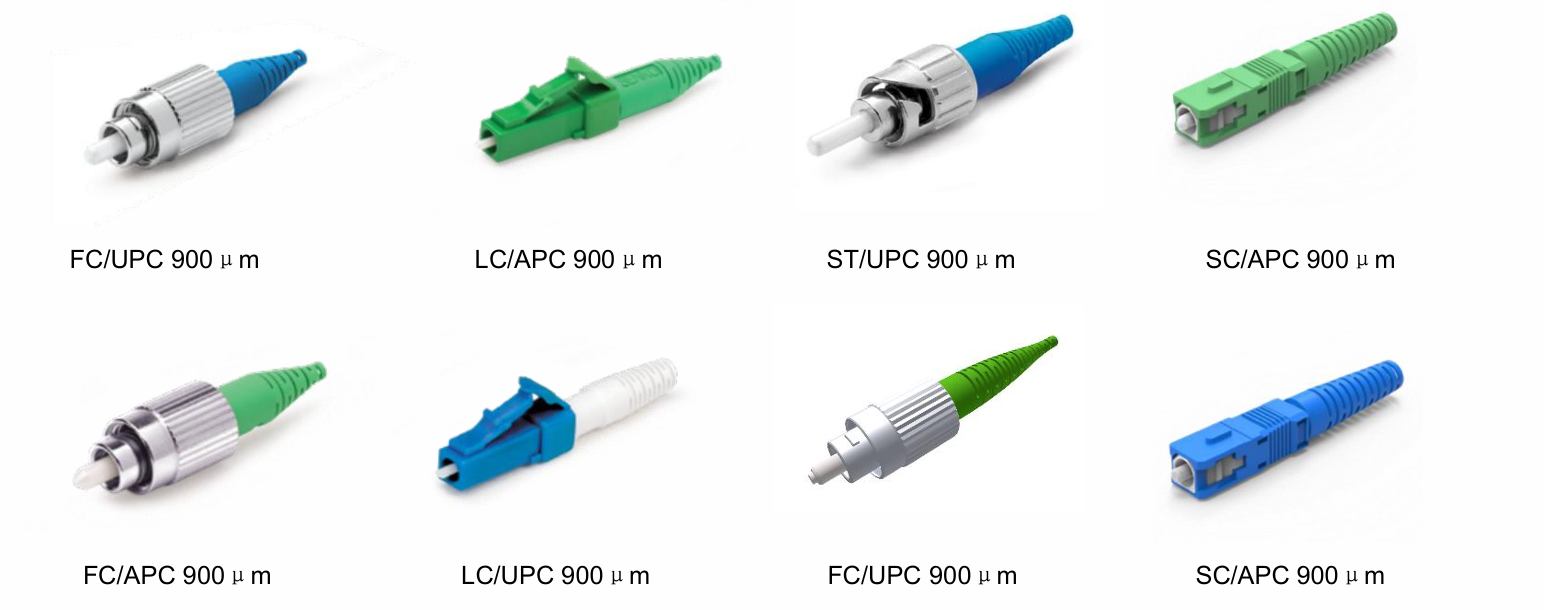

Fiber optic connector:
Physical character：
Type | Instructions | Notes |
durability test | Typical insertion loss variation<0.1 dB | The typical value change of optical signal loss after 500 insertions and removals of the connector is less than 0.1 dB |
Number of fiber cores | Single work (1-core fiber optic) | The connector is a single core structure, suitable for independent connection of a single optical fiber |
Applicable cable type | 900 µ m to 3 mm | The connector is compatible with optical fibers or cables with an outer diameter between 900 microns and 3 millimeters |
Insert material | Zirconia (ZrO ₂) | The connector plug is made of zirconia ceramic material, which has high wear resistance and stability |
Optical characteristics：
Parameter indicators | Single mode | Multi mode | |||
Low loss UPC | Standard UPC | Low loss APC | Standard APC | Standard MM | |
Typical insertion loss (dB) | 0.05 | 0.08 | 0.07 | 0.1 | 0.1 |
Maximum insertion loss (dB) | 0.15 | 0.2 | 0.15 | 0.25 | 0.2 |
Typical Return Loss (dB) | ≥55 | ≥65 | ≥25 | ||
Insert diameter (µ m) | 125 µm | 127µm | |||
Working temperature (℃) | 40°C to +75°C | ||||
