- Products description -
With the continuous development of high-definition photography and 4K ultra-high definition video transmission, high-definition video optical transmission has become particularly important. In addition, in recent years, due to the impact of the epidemic, many of people's lives are based on the Internet, such as students' online classes and defense at home, hospitals' implementation of telemedicine, fans' online watching sports events, fans' watching online concerts, etc., which have greatly promoted the development of high-definition video transmission. To realize the transmission of these high-definition videos, SDI optical module is required.
SDI optical module is different from our common SFP ordinary digital optical module in many aspects except that the package is the same: SDI optical module is dedicated to HD video transmission, and its video data stream encoding method is different from the telecommunications data. In addition to the different rates, it also needs to achieve a "sick code test" of the video standard.

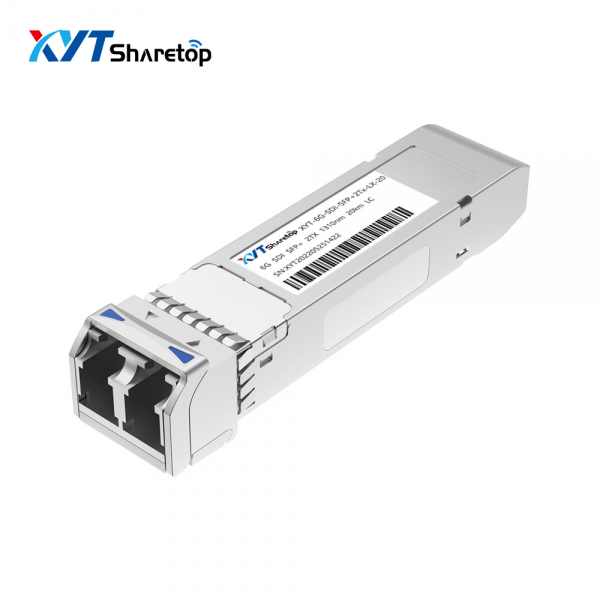

SDI optical modules launched by xianyitong technology include 3g-sdi, 6g-sdi and 12g-sdi according to different speeds. This model is a 6g-sdi dual transmitter module, which is compatible with sd-sdi, HD-SDI, 3g-sdi and 6g-sdi. The transmission distances are 2km, 20km and 40km. The product features are as follows:
- Product Features -
1. adopt hot pluggable sfp+ package;
2. no receiver;
3. conform to SMPTE St 297/2081 standard;
4. support the video sick mode of sd-sdi, HD-SDI, 3g-sdi and 6g-sdi;
5. the maximum speed is up to 5.94gbps;
6. the maximum power consumption is less than 1.7w;
7. metal shell to reduce EMI;
8. double LC optical port;
9. commercial grade operating temperature ranges from 0 to 70 ℃;
10. power supply voltage: 3.3V;
11. comply with ROHS environmental protection standard (lead-free);
- Product Specification -
1. HD video transmission;
2. optical fiber extender;
3. high definition photographic transmission;
|
