- Products description -

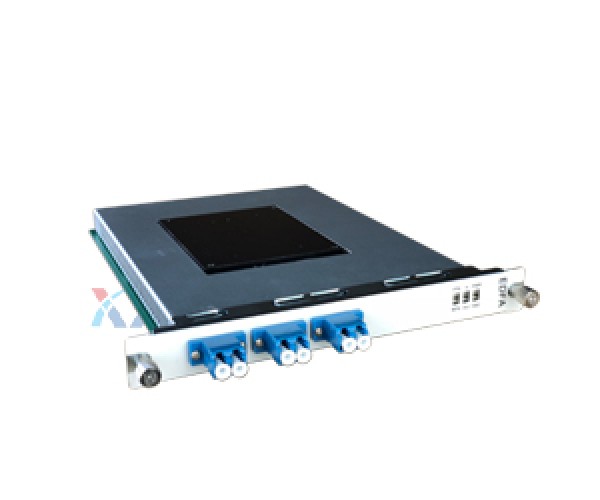

EDFA business board is a series of erbium-doped optical amplifier amplifiers introduced by our company. It can directly regenerate multi-wavelength optical signals without optical-electrical-optical conversion, thus prolonging the transmission distance of signals and supporting C / DWDM multiplexing / solution The multiplexer can realize wavelength division multiplexing transmission, which is especially suitable for long-distance trunk network, metropolitan area network, access network and various SDH / PDH transmission systems.
- Products Features -
Support C-band DWDM system optical amplification
Support power amplification, line amplification (two optical amplification), pre-amplifier.
Support the maximum saturated output power 21dBm, the minimum input power -32dBm
Support network management functions, support for Telnet management, Web management and SNMP management
Can be monitored: pump drive current, pump output power, pump switch, pump temperature, output optical power, module temperature;
Pump switch can be set
Support light monitoring port (MON)
Operating wavelength | 16 | 1546 | 1561 | nm | ||
32 | 1535 | 1562 | ||||
40 | 1528 | 1565 | ||||
Input power | Booster Amplifier | -15 | 7 | dBm | ||
Line Amplifier | -30 | 0 | ||||
Pre-Amplifier | -32 | -7 | ||||
Output Power | 21 | dBm | ||||
Gain | 14 | 30 | dB | |||
Noise index | Booster Amplifier | 7.5 | dB | |||
Line Amplifier | 7 | |||||
Pre-Amplifier | 7 | |||||
Gain flatness | 1.0 | dB | ||||
Input/output isolation | 30 | dB | ||||
Output pump leakage | -30 | dBm | ||||
Input/output return loss | 45 | dB | ||||
Polarization loss | 0.5 | dB | ||||
Noise figure | 5.0 | dB | ||||
Polarization mode dispersion | 0.5 | ps | ||||
|
Products damaged due to human or non-use of other causes of improper,we promises one year warranty and lifetime maintenance,but the unauthorized disassembly equipment caused damage is not covered under warranty and returned within range. |
|
Under normal use,if there are product quality problems,or not work normally,we provide free repair or replacement service within one year;Within three years more than one year,we provide to collect the material cost,maintenance free. Repair warranty period of three years from the freight borne by each of the parties.After three years of warranty,the material cost,maintenance,freight(refers to the product of the two-way shipping to and from)shall be borne by the user. |
|
We promise that the product we provide can meet the performance requirements of users , and it is supplied by the user's sample request. |
