- Products description -
With the rapid development of optical fiber network, the amount of data carried by the data center is increasing day by day. There are more and more high-speed connections between equipment in the data center and the same machine room and the same cabinet or between different cabinets in the same machine room.
The active optical cable (AOC) and direct connected copper cable (DAC) launched by xianyitong technology can quickly realize the short-distance interconnection within the data center, which is the mainstream solution for the data center to realize the rapid and high-speed interconnection at present.

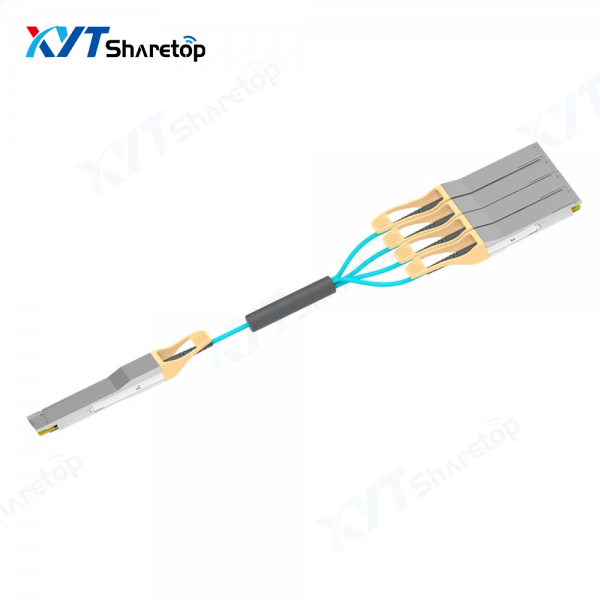

Common AOC speeds of active optical cables include 10g, 25g, 40g, 100g, 200g, 400g, etc. This model is xyt-400g-qsfp56-dd-4x 100g-qsfp56-aoc, which is used for the 400g to 4-way 100g Ethernet branch link in the data center. The interconnection distance up to 70m (OM3) or 100 (OM4) can be realized through multimode optical fiber (MMF). The product features are as follows:
- Product Features -
1. adopt hot pluggable qsfp-dd package;
2.8-channel full duplex active optical cable (including one 400g qsfp56-dd module and four 100g qsfp56 modules);
3.8 channel 850nm VCSEL laser array and PIN photodetector array;
4. built in CDR circuit (DSP) in receiving and transmitting channels;
5. comply with qsfp-dd MSA, qsfp56 MSA and IEEE 802.3cd 200gbase-sr4 Ethernet standards;
6. the maximum speed is up to 425gbps (8-way 50g pam4);
7. interconnection up to 70m (OM3) or 100 (OM4) can be realized through multimode optical fiber (cable length can be customized);
8. the maximum power consumption of 400g qsfp56-dd module is less than 9W;
9. the maximum power consumption of each 100g qsfp56 module is less than 4.5w;
10. built in digital diagnosis function;
11. commercial grade operating temperature range from 0 to 70 ℃;
12. power supply voltage: 3.3V;
13. comply with ROHS environmental protection standard (lead-free);
- Product Specification -
1. data center interconnection;
2. high performance computer;
3. mass storage;
4. Ethernet link;
|
