- Products description -
With the rapid development of optical fiber network, the amount of data carried by the data center is increasing day by day. There are more and more high-speed connections between equipment in the data center and the same machine room and the same cabinet or between different cabinets in the same machine room.

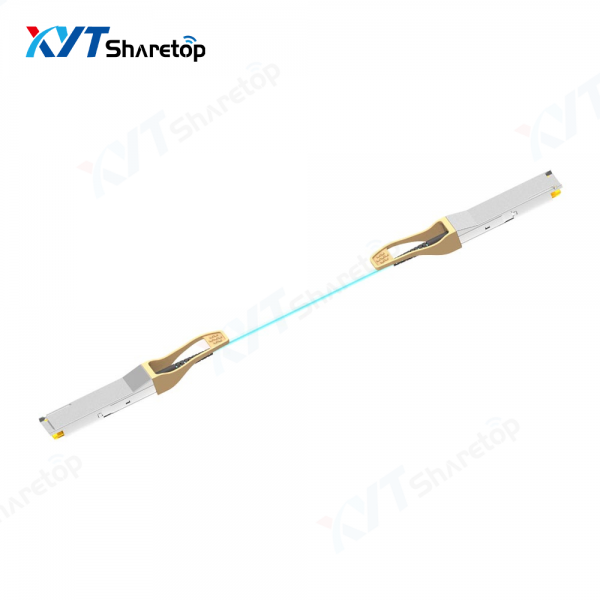

Common AOC speeds of active optical cables include 10g, 25g, 40g, 100g, 200g, 400g, etc. This model is a 200g qsfp56 AOC, which is used for the 200gbase-sr4 Ethernet link in the data center. The interconnection distance up to 70m (OM3) or 100 (om4/om5) can be realized through multimode fiber (MMF). The product features are as follows:
Common AOC speeds of active optical cables include 10g, 25g, 40g, 100g, 200g, 400g, etc. This model is xyt-200g-qsfp28-dd-4x 50g-qsfp28-aoc, which is used for the data center 200g to 4-way 50g Ethernet branch link. The interconnection distance up to 70m (OM3) or 100 (OM4) can be realized through multimode fiber (MMF). The product features are as follows:
- Product Features -
1. adopt hot pluggable qsfp56 package;
2.4-channel full duplex active optical cable (one 200g qsfp56 module at both ends);
3.4 channel 850nm VCSEL laser array and PIN photodetector array;
4. built in CDR circuit (DSP) in receiving and transmitting channels;
5. comply with qsfp56 MSA, CMIS and IEEE 802.3cd 200gbase-sr4 Ethernet standards;
6. the maximum speed is up to 212.5gbps (4-way 50g pam4);
7. it can support 103.125gbps (4-way 25g NRZ) as required;
8. the interconnection with a distance of up to 70m (OM3) or 100 (om4/om5) can be realized through multimode optical fiber (the cable length can be customized);
9. the maximum power consumption of each qsfp56 module is less than 5W;
10.200gaui-4 electrical interface;
11. built in digital diagnosis function;
12. commercial grade operating temperature range from 0 to 70 ℃;
13. power supply voltage: 3.3V;
14. comply with ROHS environmental protection standard (lead-free);
- Product Specification -
1. data center interconnection;
2. high performance computer;
3. mass storage;
4. Ethernet link;
|
