- Products description -
With the rapid development of optical fiber network, the amount of data carried by the data center is increasing day by day. There are more and more high-speed connections between equipment in the data center and the same machine room and the same cabinet or between different cabinets in the same machine room.
The active optical cable (AOC) and direct connected copper cable (DAC) launched by xianyitong technology can quickly realize the short-distance interconnection within the data center, which is the mainstream solution for the data center to realize the rapid and high-speed interconnection at present.

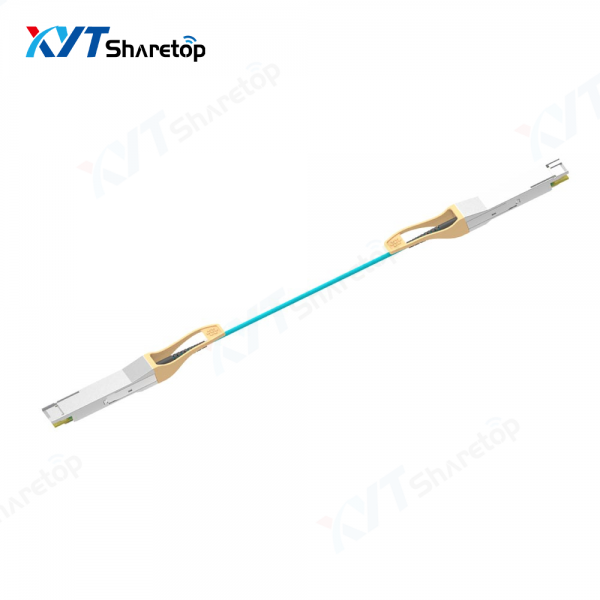

Common AOC speeds of active optical cables include 10g, 25g, 40g, 100g, 200g, 400g, etc. This model is a 200g qsfp28-dd AOC, which is used for the 200g (2x100gbase-sr4) ethernet link in the data center. The interconnection distance up to 70m (OM3) or 100 (OM4) can be realized through multimode fiber (MMF). The product features are as follows:
- Product Features -
1. adopt hot pluggable qsfp-dd and qsfp28 packages;
2.8-channel full duplex active optical cable (including one 200g qsfp28-dd module and two 100g qsfp28 modules);
3.8 channel 850nm VCSEL laser array and PIN photodetector array;
4. built in CDR circuit in receiving and transmitting channels;
5. comply with qsfp-dd MSA, qsfp28 MSA and IEEE 802.3bm 100gbase-sr4 Ethernet standards;
6. the maximum speed is 206.25gbps (8-way 25g NRZ);
7. interconnection up to 70m (OM3) or 100 (OM4) can be realized through multimode optical fiber (cable length can be customized);
8. The maximum power consumption of the 200g qsfp28-dd module is less than 4W;
9. the maximum power consumption of each 100g qsfp28 module is less than 2.5W;
10. built in digital diagnosis function;
11. commercial grade operating temperature range from 0 to 70 ℃;
12. power supply voltage: 3.3V;
13. comply with ROHS environmental protection standard (lead-free);
- Product Specification -
1. data center interconnection;
2. high performance computer;
3. mass storage;
4. Ethernet link;
|
Products damaged due to human or non-use of other causes of improper,we promises one year warranty and lifetime maintenance,but the unauthorized disassembly equipment caused damage is not covered under warranty and returned within range. |
|
Under normal use,if there are product quality problems,or not work normally,we provide free repair or replacement service within one year;Within three years more than one year,we provide to collect the material cost,maintenance free. Repair warranty period of three years from the freight borne by each of the parties.After three years of warranty,the material cost,maintenance,freight(refers to the product of the two-way shipping to and from)shall be borne by the user. |
|
We promise that the product we provide can meet the performance requirements of users , and it is supplied by the user's sample request. |
