- Products description -

With the development of optical networks, especially after the emergence of 5g networks, the amount of data transmission has increased significantly. 100g optical modules have been widely used in various optical networks to quickly improve the transmission capacity and rate of optical networks.

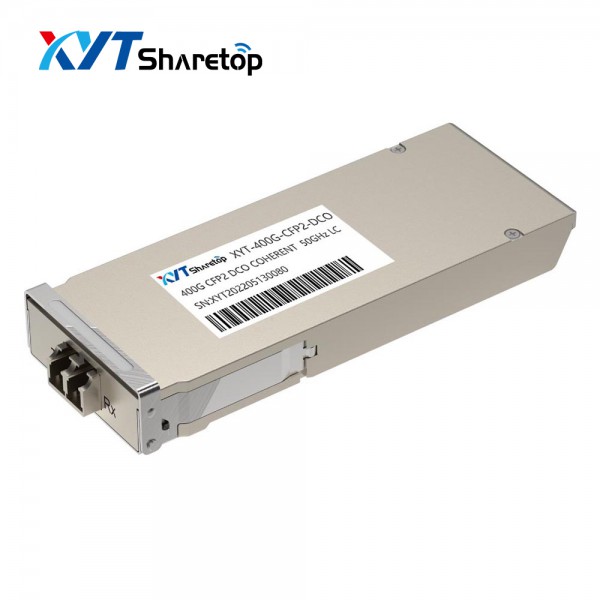

The 100g / 200g / 400g coherent optical module launched by xianyitong technology adopts imported chips with stable performance. The packaging forms include CFP and cfp2. It can realize the rapid capacity expansion and high-speed transmission of backbone lines. This model is xyt-400g-cfp2-dco, 400g, cfp2 package. The product features are as follows:

- Product Features -

1. Adopt hot pluggable CFP2 package;

2. Support C band, 50GHz grid, 191.15-196.1ghz;

3. Single wave rate supports 100gbps;

4. Support SMF transmission up to 1200 km;

5. Built in FEC adjustment;

6. Maximum power consumption ≤ 28w;

7. Duplex LC interface;

8. The working temperature range is from 0 to 70 ℃;

9. Power supply voltage: 3.3V;

10. Comply with ROHS environmental protection standard (lead-free);

- Product Specification -

1. Carrier backbone network transmission;

2. Backbone line of data center;

3. Large capacity transmission of various types of backbone networks and metropolitan area networks;

4. Various types of long-distance backbone networks;

5. OTN transmission system;

6. DWDM transmission system;

Specification

Sale service

	Products damaged due to human or non-use of other causes of improper,we promises one year warranty and lifetime maintenance,but the unauthorized disassembly equipment caused damage is not covered under warranty and returned within range.
	Under normal use,if there are product quality problems,or not work normally,we provide free repair or replacement service within one year;Within three years more than one year,we provide to collect the material cost,maintenance free. Repair warranty period of three years from the freight borne by each of the parties.After three years of warranty,the material cost,maintenance,freight(refers to the product of the two-way shipping to and from)shall be borne by the user.
	We promise that the product we provide can meet the performance requirements of users , and it is supplied by the user's sample request.
