- Products description -

With the development of optical networks, especially after the emergence of 5g networks, the amount of data transmission has increased significantly. 100g optical modules have been widely used in various optical networks to quickly improve the transmission capacity and rate of optical networks.

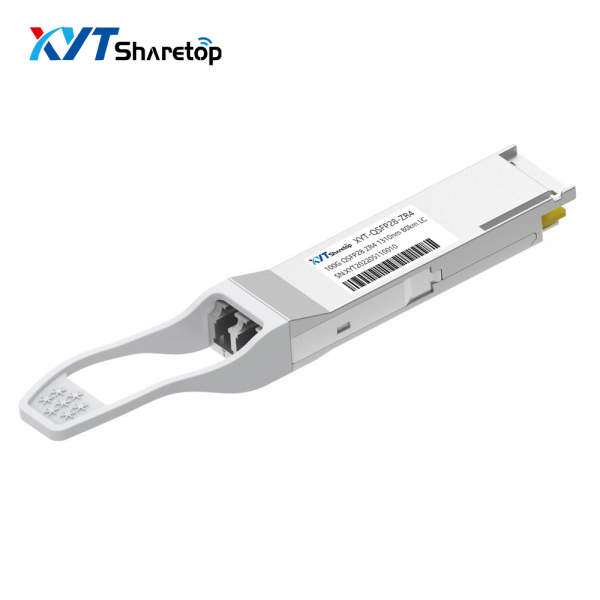

The 100g qsfp28 Zr4 module launched by xianyitong technology adopts 4-way 28g NRZ wavelength division multiplexing technology (lwdm4), which is duplex LC and is widely used in 100g Zr4 Ethernet link. When the FEC is turned on, the transmission distance through a pair of single-mode optical fibers can be up to 80km.

- Product Features -

1. Adopt hot pluggable qsfp28 package;

2.4 channel full duplex transceiver integrated module;

3.4-channel refrigeration EML lwdm Tosa and pin Rosa (built-in SOA semiconductor optical amplifier);

4. Comply with qsfp28 MSA and 100g Zr4 Ethernet standards;

5. The maximum speed is up to 103.125gbps (4x28g NRZ);

6. The transmission distance through single-mode optical fiber can be up to 80km;

7. The maximum power consumption is less than 6W;

8. Double LC optical port;

9. Built in digital diagnosis function;

10. Commercial grade operating temperature range from 0 to 70 ℃;

11. Power supply voltage: 3.3V;

12. Comply with ROHS environmental protection standard (lead-free);

- Product Specification -

1. High bandwidth interconnection of data center;

2. 100g Zr4 Ethernet link;

3.100g ultra long distance transmission.

Specification

Sale service

	Products damaged due to human or non-use of other causes of improper,we promises one year warranty and lifetime maintenance,but the unauthorized disassembly equipment caused damage is not covered under warranty and returned within range.
	Under normal use,if there are product quality problems,or not work normally,we provide free repair or replacement service within one year;Within three years more than one year,we provide to collect the material cost,maintenance free. Repair warranty period of three years from the freight borne by each of the parties.After three years of warranty,the material cost,maintenance,freight(refers to the product of the two-way shipping to and from)shall be borne by the user.
	We promise that the product we provide can meet the performance requirements of users , and it is supplied by the user's sample request.
