- Products description -

With the development of optical networks, especially after the emergence of 5g networks, the amount of data transmission has increased significantly. 40g optical modules have been widely used in various optical networks to quickly improve the transmission capacity and rate of optical networks.

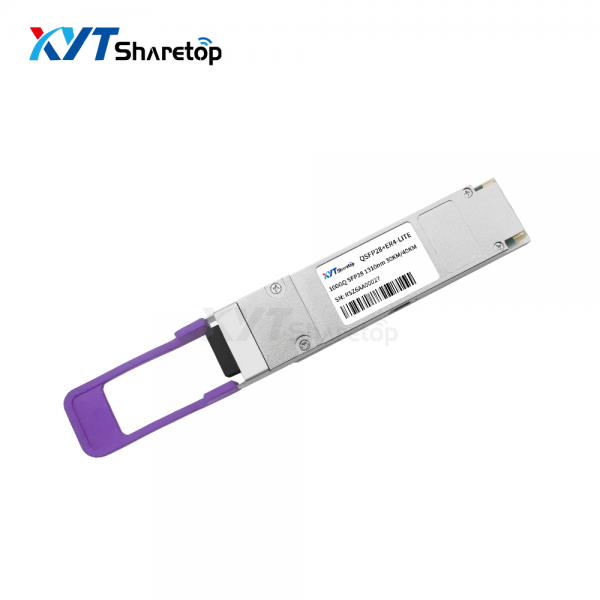

The 100g qsfp28 Er4 Lite module launched by xianyitong technology adopts 4-way 25g NRZ wavelength division multiplexing technology (lwdm4), and the interface is duplex LC. It is widely used in 100gbase-er4 Lite Ethernet and OTN otu4 links. The transmission distance through single-mode optical fiber can be up to 30km (do not turn on FEC) or 40km (turn on FEC).

- Product Features -

1. Adopt hot pluggable qsfp28 package;

2.4 channel full duplex transceiver integrated module;

3.4-channel uncooled CWDM DFB laser and pin Rosa;

4. Comply with qsfp28 MSA and cwdm4 MSA standards;

5. Compatible with Infiniband EDR standard;

6. The maximum speed is up to 103.125gbps;

7. The transmission distance through single-mode optical fiber can be up to 2km or 10km (FEC needs to be turned on);

8. The maximum power consumption is less than 3.5W;

9. Double LC optical port;

10. Operating temperature range from 0 to 70 ° C or - 40 to + 85 ° C;

11. Power supply voltage: 3.3V;

12. Comply with ROHS environmental protection standard (lead-free);

- Product Specification -

1. High bandwidth interconnection of data center;

2. 100gbase-er4 Lite Ethernet;

3. OTN otu4 link;

4.100g long-distance transmission;

Specification

Sale service

	Products damaged due to human or non-use of other causes of improper,we promises one year warranty and lifetime maintenance,but the unauthorized disassembly equipment caused damage is not covered under warranty and returned within range.
	Under normal use,if there are product quality problems,or not work normally,we provide free repair or replacement service within one year;Within three years more than one year,we provide to collect the material cost,maintenance free. Repair warranty period of three years from the freight borne by each of the parties.After three years of warranty,the material cost,maintenance,freight(refers to the product of the two-way shipping to and from)shall be borne by the user.
	We promise that the product we provide can meet the performance requirements of users , and it is supplied by the user's sample request.
