Product description:

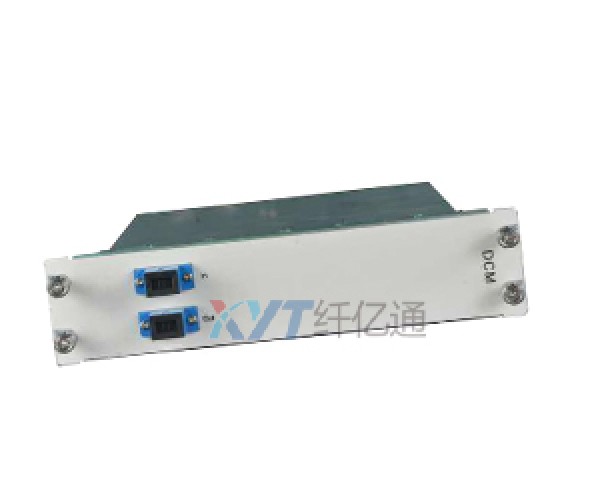

The DCM dispersion
Parameters | Index | Unit | ||||
DCM@1545nm | 20 | 40 | 60 | 80 | 100 | Km |
-340±20 | -670±20 | -1000±20 | -1340±20 | -1680±20 | Ps/nm | |
Relative dispersion slope@1545nm | 0.0036±20%（Universal），0.0036±10%（Advanced） | nm-1 | ||||
Insertion loss @1525-1565nm | ≤3 | ≤4.8 | ≤6 | ≤7.6 | ≤8.8 | dB |
Insertion loss @1525-1565nm | ≤2.8 | ≤4.4 | ≤5.8 | ≤7.2 | ≤8.4 | dB |
Polarization mode dispersion | ≤0.7 | ≤0.8 | ≤0.9 | ≤1.0 | ≤1.1 | ps |
Polarization mode dispersion (typical) | 0.2 | 0.3 | 0.4 | 0.5 | 0.6 | ps |
Polarization-dependent loss | ≤0.1 | ≤0.1 | ≤0.1 | ≤0.1 | ≤0.1 | dB |
Brillouin scattering threshold | Minimum 6 | dBm | ||||
Nonlinear system（n2/Aeff） | Maximum1.4*10-9 | W-1 | ||||
Effective area（Aeff） | Minimum 20 | um2 | ||||
|
Products damaged due to human or non-use of other causes of improper,we promises one year warranty and lifetime maintenance,but the unauthorized disassembly equipment caused damage is not covered under warranty and returned within range. |
|
Under normal use,if there are product quality problems,or not work normally,we provide free repair or replacement service within one year;Within three years more than one year,we provide to collect the material cost,maintenance free. Repair warranty period of three years from the freight borne by each of the parties.After three years of warranty,the material cost,maintenance,freight(refers to the product of the two-way shipping to and from)shall be borne by the user. |
|
We promise that the product we provide can meet the performance requirements of users , and it is supplied by the user's sample request. |
