- Products description -

With the development of optical networks, especially after the emergence of 5g networks, the amount of data transmission has increased significantly. 100g optical modules have been widely used in various optical networks to quickly improve the transmission capacity and rate of optical networks.

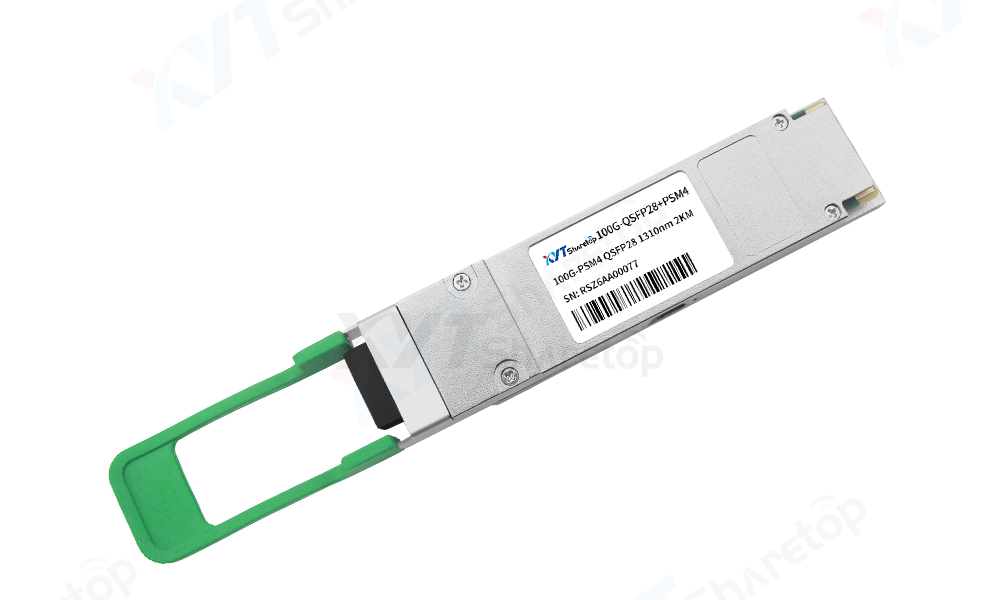

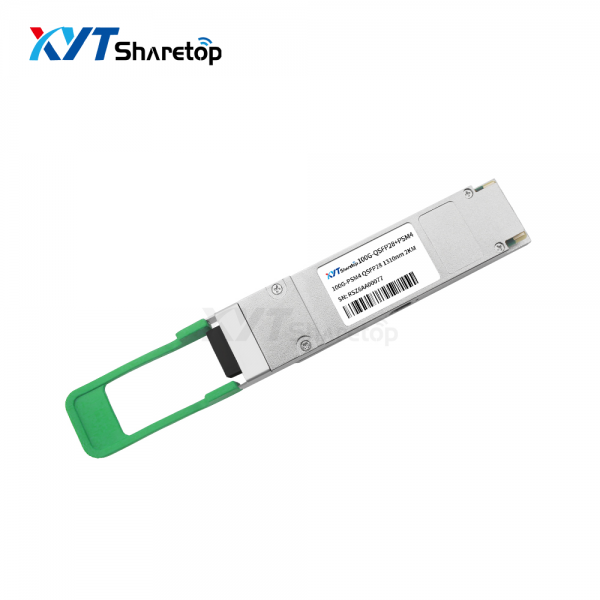

The 100g qsfp28 psm4 module launched by xianyitong technology adopts 4-way 25g NRZ single-mode parallel technology. The interface is single-mode MPO / MPT and occupies at least 8-core single-mode optical fiber. It is widely used in 100g psm4 Ethernet and Infiniband 4x EDR links. The transmission distance through single-mode optical fiber can be up to 2km or 10km. Considering the cost of optical cable, the commonly used model is 2km.

- Product Features -

1. Adopt hot pluggable qsfp28 package;

2.4 channel full duplex transceiver integrated module;

3.4 channel 1310nm DFB laser array and PIN photodetector array;

4. Built in CDR circuit in receiving and transmitting channels;

5. Support CDR bypass;

6. Comply with qsfp28 MSA and 100g psm4 MSA standards;

7. Compatible with Infiniband DDR / EDR standard;

8. The maximum speed is up to 103.125gbps;

9. The transmission distance through G.652 single-mode optical fiber can be up to 2km or 10km;

10. Power consumption is less than 3.5W;

11. Mpo12 optical port;

12. The working temperature range is from 0 to 70 ℃, and the industrial temperature is - 40 to 85 ℃;

13. Power supply voltage: 3.3V;

14. Comply with ROHS environmental protection standard (lead-free);

- Product Specification -

1. High bandwidth interconnection of data center;

2. 100ge Ethernet;

3.100g short distance transmission;

Specification

Sale service

	Products damaged due to human or non-use of other causes of improper,we promises one year warranty and lifetime maintenance,but the unauthorized disassembly equipment caused damage is not covered under warranty and returned within range.
	Under normal use,if there are product quality problems,or not work normally,we provide free repair or replacement service within one year;Within three years more than one year,we provide to collect the material cost,maintenance free. Repair warranty period of three years from the freight borne by each of the parties.After three years of warranty,the material cost,maintenance,freight(refers to the product of the two-way shipping to and from)shall be borne by the user.
	We promise that the product we provide can meet the performance requirements of users , and it is supplied by the user's sample request.
