- Products description -
With the development of optical networks, especially after the emergence of 5G networks, the amount of data transmission has increased significantly. 100G optical modules are gradually widely used in various optical networks to rapidly increase the transmission capacity and speed of optical networks.

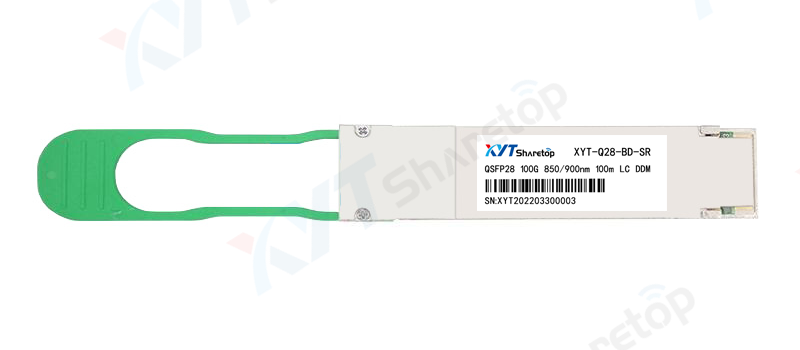

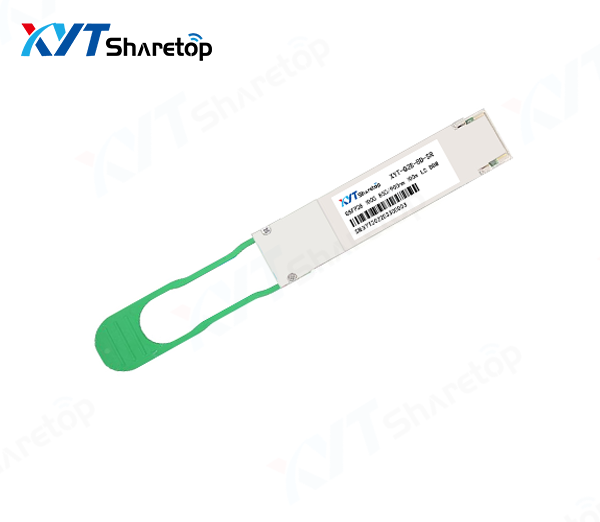

The XYT-Q28-BD-SR launched by SHARETOP is a multi-mode optical module for 100Gb Ethernet, which is a high-performance module for short-distance data communication and interconnection applications. It integrates four electrical signals at 25 Gb/s in each direction into two 50 Gb/s optical signal channels, providing an aggregate bandwidth of 100 Gb/s, operating at 850 nm and 900 nm nominal wavelengths , support hot swap. The module adopts the proven integrated circuit and VCSEL technology, which can effectively guarantee the long life and high performance of the optical module.
- Product Features -
1.Compliant to 100GbE electrical specification 802.3bm (Annex 83E CAUI-4) with No Host FEC；
2.100G link distances up to 70m OM3, 100m OM4 per TIA informative guidance proposal V2, and 150mOM5 per TIA-492AAAE specification.
3.40G link distances up to 75m OM3, 110m OM4 per TIA informative guidance proposal V2, and 160mOM5 per TIA-492AAAE specification.
4.QSFP28 MSA specification-compliant, including new functions per SFF-8636;
5.Class 1 eye safety;
6. Pull tab: ease of transceiver insertion andextraction;
7. +10°C to +70°C case temperature operating range;
8. Dual wavelength VCSEL bi-directional optical interface, PAM4 2 × 50-Gb/s 850 nm/900 nm ;
9.Proven high reliability 850-nm and 900-nm technology: VCSEL transmitter and PINdetector ;
10.Hot pluggable QSFP28 transceiver for ease of installation and servicing ;
11.Two-wire serial (TWS) interface with digital monitoring and maskable interrupts for expanded functionality.

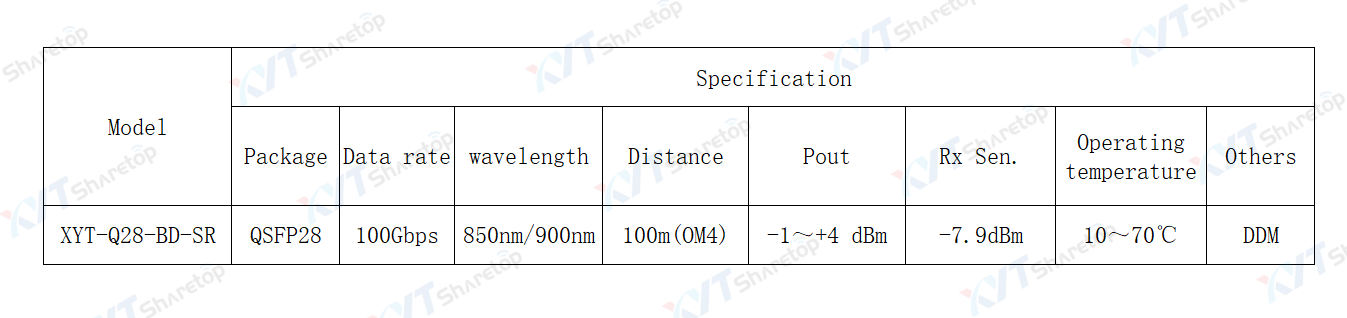

- Product Specification -
1.100-Gigabit Ethernet interconnects;
2.Datacom/telecom switch and router connections;
3.Data aggregation and backplane applications;
4.Proprietary protocol and density applications.
|
Products damaged due to human or non-use of other causes of improper,we promises one year warranty and lifetime maintenance,but the unauthorized disassembly equipment caused damage is not covered under warranty and returned within range. |
|
Under normal use,if there are product quality problems,or not work normally,we provide free repair or replacement service within one year;Within three years more than one year,we provide to collect the material cost,maintenance free. Repair warranty period of three years from the freight borne by each of the parties.After three years of warranty,the material cost,maintenance,freight(refers to the product of the two-way shipping to and from)shall be borne by the user. |
|
We promise that the product we provide can meet the performance requirements of users , and it is supplied by the user's sample request. |
