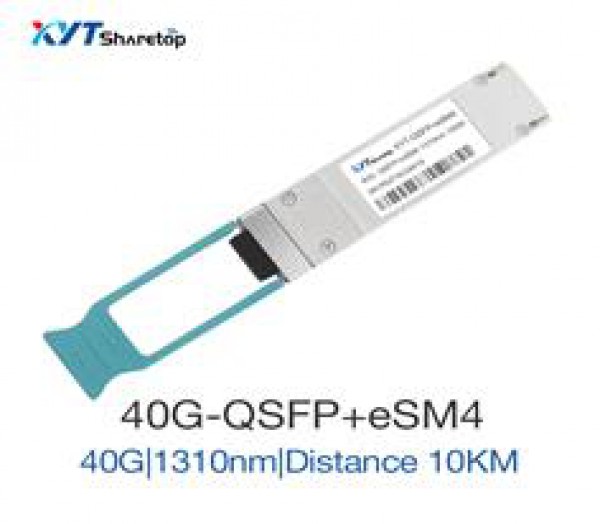

QSFP+ 40G eSM4 PSM 10Km-QSFP+40G-OpticTransceiverModule--Sharetop Technology Co.Limited

- Products description -

QSFP PSM IR4 are a high performance,low power consumption,long reach interconnect solution supporting 40G Ethernet,fiber channel and PCIe.It is compliant with the QSFP MSA and 40GbE PSM4.QSFP PSM IR4 is an assembly of 4 full-duplex lanes,where each lane is capable of transmitting data at rates up to 10Gb/s,providing an aggregated rate of 40Gb/s.

- Product Features -

1．Full duplex 4 channel 1310nm parallel module
2．Transmission data rate up to 11.3Gbit/s per channel
3．SFF-8436 QSFP+compliant
4．Hot pluggable electrical interface
5．Differential AC-coupled high speed data interface
6．4 channels 1310nm FP array
7．4 channels PIN photo detector array
8．Maximum link length of 2km on G652 single mode fiber(SMF)
9．Maximum power consumption 3.5W
10．Housing isolated from connector ground
11．Operating case temperature 0°C to+70°C
12．3.3V power supply voltage
13．RoHS 6 compliant

- Product Specification -

1．Infiniband Connectivity SDR/DDR/QDR.
2．10/40 Gigabit Ethernet.
3．2/4/8 Gbps Fiber Channel.
4．Data Centers and Storage Arrays.

Specification

Table 1-Optical and Electrical Characteristics

Parameter	Symbol	Min	Typical	Max	Unit
Storage Ambient Temperature		-40		+85	°C
Operating Case Temperature	Tc	0		+70	°C
Power Supply Voltage	VCC3	3.14	3.3	3.47	V
Power Dissipation	PD			1.5	W

Systems

Performance

10.3125 Gpbs(per channel)line speed,full duplex

Bit error rate:better than 10E-12

Media

Hot-pluggable,industry-standard Small Form-Factor

Pluggable(QSFP+)copper cable,available up to 10m

Operating parameters

Supply voltage:3.3V

Power consumption(per end):max 1.5W

Ordering information

Part Number	Product Description
XTY-C192-XXC	SFP+Direct Attach(10GSFP+Cu),1m,3m,5m,7m 10m 0?C ~+70?C

Sale service

	Products damaged due to human or non-use of other causes of improper,we promises one year warranty and lifetime maintenance,but the unauthorized disassembly equipment caused damage is not covered under warranty and returned within range.
	Under normal use,if there are product quality problems,or not work normally,we provide free repair or replacement service within one year;Within three years more than one year,we provide to collect the material cost,maintenance free. Repair warranty period of three years from the freight borne by each of the parties.After three years of warranty,the material cost,maintenance,freight(refers to the product of the two-way shipping to and from)shall be borne by the user.
	We promise that the product we provide can meet the performance requirements of users , and it is supplied by the user's sample request.
