- Products description -

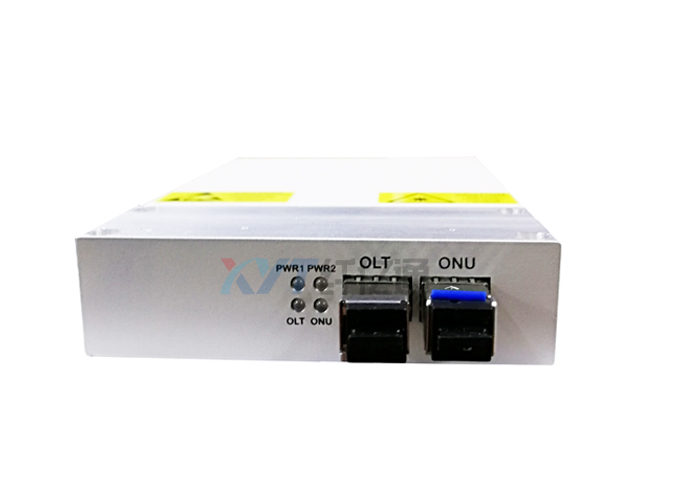

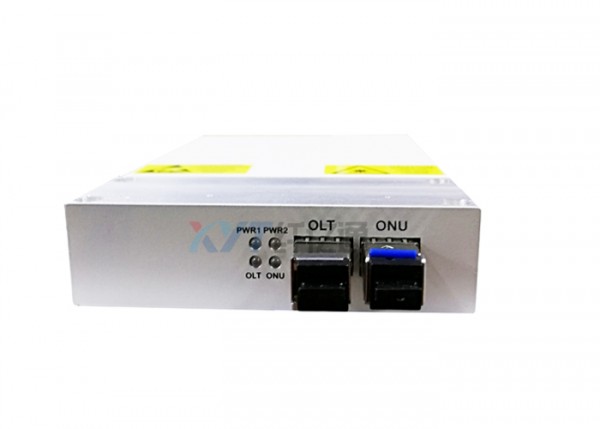

The PON amplifier is developed independently by Sharetop. It complies with the ITU-T G.984.X and IEEE802.3ah standards , it combine the PON technology and photoelectric conversion technology to achieve the extension of the PON signal. The maximum transmission is GPON / 60KM, EPON / 40KM coverage. It is fully compatible with the market-leading OLT / ONU equipment. It is suitable for PON coverage scenarios where need extended distance and the link loss is large,no configuration is required. completely transparent transmission , can rapid provisioning , improve the coverage efficiency of FTTH services.
- Product Features -
Support IEEE802.3ah, ITU-T G.984.X and national standard (YD / T 1475-2006)
Protocol transparent, low latency, good compatibility, fully compatible with the market mainstream OLT / ONU devices
Compatible G / EPON service, the maximum distance EPON / 40KM, GPON / 60KM
The product has 3R function, supports multi-level PON service amplification, PON module supports hot pluggable
Can effectively improve the utilization of the OLT port, which can improve the maximum EPON splitting from 1:32 to 1:64, and the maximum splitting of GPON from 1:64 to 1: 128
Technical Parameters:
item | Technical Parameters | |||
Support protocol | GPON (ITU-T G984.X) 、EPON (IEEE 802.3 ah) | |||
Uplink rate | 1.244G burst signal | |||
Downlink rate | 2.488G continuous signal（GPON）、1.244Gcontinuous signal（EPON） | |||
Compatibility | Compatible with different manufacturers OLT and ONU equipment, Support service transparent transmission | |||
OLT side receive sensitivity | -30~-3 dBm | |||
ONU side receive sensitivity | -28~-8 dBm (burst signal) | |||
OLT side transmitter optical power | +4~+7dBm | |||
ONU side transmitter optical power | 0~+4dBm | |||
working environment | Commercial grade | -10℃~+60℃ | Industrial grade | -40℃~+85℃ |
Working humidity | 5%~95% | |||
Power consumption | < 15W | |||
MTBF | 128053 hour | |||
|
