- Products description -

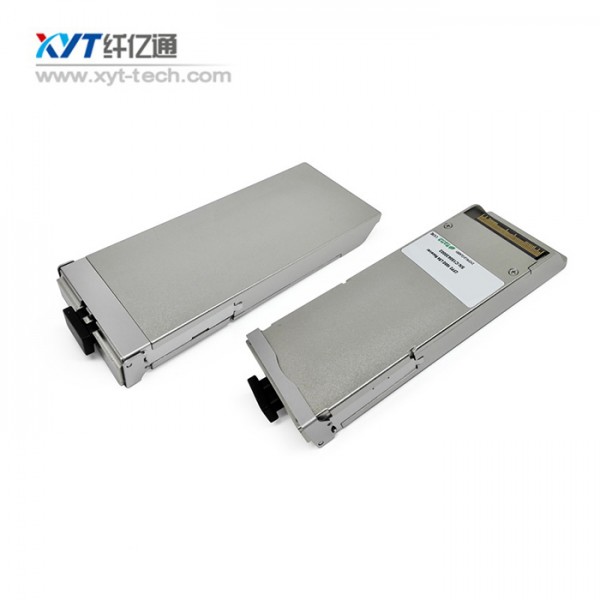

Sharetop’s 100G_CFP2 SR10, the 100GE SR10 CFP2 (ALT1) transceiver modules are designed for use in 100 Gigabit Ethernet links and 10x11.2G OTN client interfaces over multimode fiber. They are compliant with the CFP2 MSA and with IEEE 802.3ba 100GBASE-SR10. Digital diagnostics functions are available via the MDIO interface.
- Product Features -
Supports 103.1Gb/s to 112Gb/s bit rates
MPO 24 receptacle optical interface
CPPI electrical interface
Uncooled 10x10Gb/s 850nm transmitter
10 parallel electrical serial interface
Applicable for 100m with OM3 MMF and 150m with OM4 MMF
Low power consumption <4W
Digital Diagnostic Monitor Interfacel
MDIO Communication Interface
Compliant with 100GBASE-SR10
Operating case temperature
Commerical:0 to 70 °C
- Product Specification -
100GBASE-SR10 Ethernet
10x11.2Gb/s Multimode OTN
10x 10GE-SRLite Ethernet
Standards
Compliant with IEEE 802.3ba
Compliant with CFP2 MSA hardware specifications
Compliant with CFP2 MSA management specifications
Optical Characteristics (TOP = 0 to 70 °C, VCC = 3.13 to 3.47 V)
Parameter | Symbol | Min. | Typ | Max. | Unit | Note |
Transmitter (per Lane) | ||||||
Data Rate Per Lane | DRPL | 10.3125 | 11.1810 | Gb/s | 1 | |
Center wavelength | λ | 840 | 850 | 860 | nm | |
RMS Spectral Width | Δλ | 0.65 | nm | |||
Average Power per Lane | PAVEp | -8 | 1 | dBm | ||
Transmit OMA per Lane | POMA | -6 | 3.0 | dBm | 2 | |
Average launch Power of OFF | DP | -30 | dB | |||
Peak Power per Lane | PP | 4.0 | dBm | |||
TDP per Lane | TDP | 4 | dBm | |||
Extinction Ratio | ER | 3.0 | dB | |||
Return Loss Tolerance | 12 | dB | ||||
Relative Intensity Noise | RIN | -128 | dB/Hz | 3 | ||
Transmitter eye mask definition {X1, X2, X3, Y1, Y2, Y3} | 0.23, 0.34, 0.43, 0.27, 0.35, 0.4 | |||||
Receiver (per Lane) | ||||||
Center wavelength | λ | 840 | 850 | 860 | nm | |
Receiver Sensitivity per Lane | -9.9 | dBm | 4 | |||
Receiver Sensitivity (OMA) per Lane | PSEN2 | -5.4 | dBm | |||
Peak Power, per lane
| PPx | 4 | dBm | |||
Overload,perlane | PAVE | 1 | dBm | |||
Receiver Reflectance
| Rrx | -12 | dB | |||
Dispersion penalty , per lane
| TDP | 1.9 | dB | |||
Stressed eye J2 jitter, per Lane
| JE2P | 0.35 | UI | |||
Stressed eye J9 jitter, per Lane
| JE9P | 0.47 | UI | |||
Jitter tolerance [OMA], per lane
| JTP | -5.4 | dBm | |||
LOS De-Assert
| Pa | -11 | dBm | |||
LOS Assert
| Pd | -25 | dBm | |||
LOS Hysteresis
| Pd-Pa | 0.5 | dB | |||
Notes:
1. Transmitter consists of 10 lasers operating at a maximum rate of 11.1810 Gb/s each.
2. Even if TDP is <0.9dB, the OMA min must exceed this value.
3. RIN is scaled by 10*log (10/4) to maintain SNR outside of transmitter.
4. Measured using DUT Tx and DUT Rx; no golden transmitters shall be used.
Ordering Information
Part Number | Description |
XYT--100G_CFP2 SR10 | CFP2 100G SR10 850nm100m 0~70℃ |
|
Products damaged due to human or non-use of other causes of improper,we promises one year warranty and lifetime maintenance,but the unauthorized disassembly equipment caused damage is not covered under warranty and returned within range. |
|
Under normal use,if there are product quality problems,or not work normally,we provide free repair or replacement service within one year;Within three years more than one year,we provide to collect the material cost,maintenance free. Repair warranty period of three years from the freight borne by each of the parties.After three years of warranty,the material cost,maintenance,freight(refers to the product of the two-way shipping to and from)shall be borne by the user. |
|
We promise that the product we provide can meet the performance requirements of users , and it is supplied by the user's sample request. |
