- Products description -

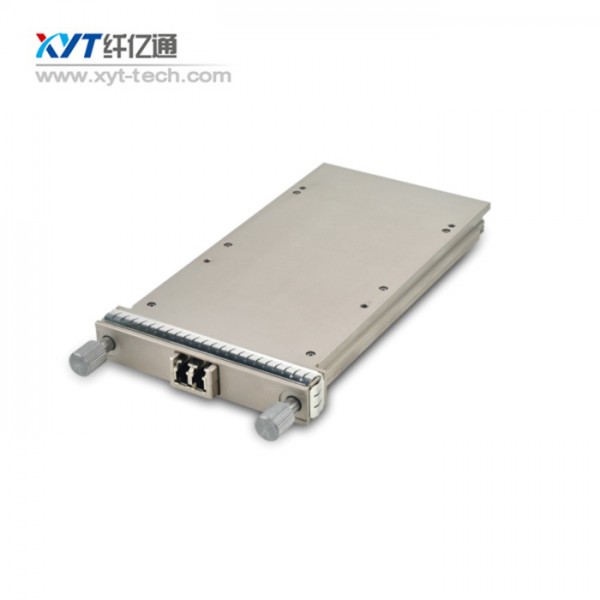

Sharetop 100G_CFP LR4, 100G CFP2 ER4 optical transceiver integrates the transmit and receive path onto one module. On the transmit side, four lanes of serial data streams are recovered, retimed,and passed on to four laser drivers, which control four electric-absorption modulated lasers (EMLs) with 1296, 1300, 1305, and 1309 nm center wavelengths. The optical signals are then multiplexed into a single-mode fiber through an industry-standard LC connector.On the receive side, 4 lanes of optical data streams are optically demultiplexed by an integrated optical demultiplexer. Each data steam is recovered by a PIN photodetector and transimpedance amplifier, retimed, and passed on to an output driver. This module features a hot-pluggable electrical interface, low power consumption, and MDIO management interface.
- Product Features -
Supports 103.1Gbps to 112Gbps bit rates
Duplex LC connector
Hot pluggable
4x28Gb/s DFB-based LAN-WDM transmitter
10x10G MLD electrical interface
Applicable for 30km SMF connection
Low power consumption, < 18W
Digital Diagnostic Monitor Interfacel
MDIO Communication Interface
Compliant with 100GBASE-LR4 and OTU4
Operating case temperature Commerical:0 to 70 °C
- Product Specification -
OTN OTU4
100GBASE-ER4 100G Ethernet
Other Optical link
Optical Characteristics (Top=0~70℃, Vcc=3.2~3.4V)
(Tested under recommended operating conditions,unless otherwise noted)
Parameter | Symbol | Unit | Min | Typ | Max | Notes | |||||
Transmitter | |||||||||||
Signaling rate, each lane | GBd | 25.78125 ±100 ppm | 100GBase-LR4,1 | ||||||||
27.9525 ±20 ppm | OTU4,1 | ||||||||||
Four Lane Wavelength Range | λ1 | nm | 1294.53 | 1295.56 | 1296.59 | ||||||
λ2 | 1299.02 | 1300.05 | 1301.09 | ||||||||
λ3 | 1303.54 | 1304.58 | 1305.63 | ||||||||
λ4 | 1308.09 | 1309.14 | 1310.19 | ||||||||
Pout | dBm | 10.5 | 100GBase-LR4 | ||||||||
10 | OTU4 | ||||||||||
Average launch power, each lane | Pavg | dBm | -4.3 | 4.5 | 100GBase-LR4,2 | ||||||
-6 | 4 | OTU4,2 | |||||||||
Optical modulation amplitude, each lane (OMA)2 | OMA | dBm | -1.3 | 4.5 | |||||||
Difference in launch power between any two lanes (OMA) | dB | 5 | |||||||||
Extinction ratio | ER | dB | 4 | 100GBase-LR4 | |||||||
4 | 6.5 | OTU4 | |||||||||
Side-mode suppression ratio | SMSR | dB | 30 | ||||||||
Transmitter and dispersion penalty, each lane | TDP | dB | 2.2 | ||||||||
Optical return loss tolerance | dB | 20 | |||||||||
Transmitter reflectance3 | dB | –12 | |||||||||
Transmitter eye mask {X1, X2, X3, Y1, Y2, Y3} | {0.25, 0.4, 0.45, 0.25, 0.28, 0.4} | 100GBase-LR4 | |||||||||
Optical Receiver Characteristics | |||||||||||
Receive Rate for Each Lane | Gbps | 25.78125 | 27.9525 | 3 | |||||||
Overload Input Optical Power | Pmax | dBm | 5.5 | ||||||||
Average Receive Power for Each Lane | Pin | dBm | -20.9 | 4.5 | 4 | ||||||
Receiver Sensitivity(OMA)per lane | Psens1 | dBm | -17.9 | ||||||||
Stressed Sensitivity(OMA) per lane | Psens2 | dBm | -15.9 | ||||||||
Return Loss | RL | dB | -26 | ||||||||
Receiver Electrical 3dB upper cutoff frequency, per lane | GHz | 31 | |||||||||
Los De-Assert | Pd | dBm | -19 | ||||||||
Los Assert | Pa | dBm | -21 | ||||||||
Loss Hysteresis | Pd-Pa | dBm | 1 | ||||||||
Notes:
1. Transmitter consists of 4 lasers operating at 25.78Gb/s each for 100GBASE-LR, 27.95Gb/s each for OTU4
2. Minimum value is informative.
3. Receiver consists of 4 photodetectors operating at 25.78Gb/s each each for 100GBASE-LR, 27.95Gb/s each for OTU4
4. Minimum value is informative, equals min TxOMA with infinite ER and max channel insertion loss.
Ordering Information
Part Number | Description |
XYT-100G_CFP LR4 | 100G CFP ER4 30Km 0~70℃ |
|
