- Products description -

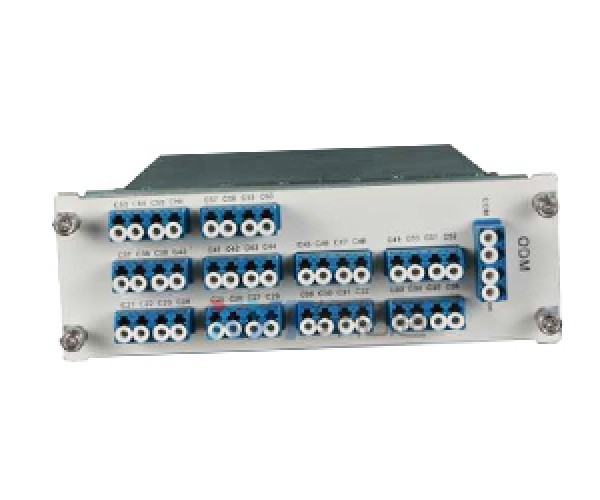

ODM multiplexing / demultiplexing board is the coarse wavelength / dense wavelength division multiplexer launched by our company. It is used for multiplexing and demultiplexing the CWDM or DWDM channels, which greatly saves customers' fiber resources. It can flexibly change the network configuration according to customer requirements. The frequency interval is 100GHz The DWDM system supports smooth upgrade to 48 waves and the frequency interval is 50GHz. The DWDM system supports smooth upgrade to 96 waves with higher spectrum utilization and saves bandwidth resources.
- Product Features -
Support CWDM / DWDM system, CATV, PON,etc.
Pure passive components
Support wavelength customization
Support upgrade the channel
Low insertion loss
High channel isolation
High reliability and stability
Single slot card supports up to 18 single or double 8 wave (including the upgrade port) of the combined wave sub-wave passive. For more dense channel wave system (such as 40 wave / 48 wave), you need to use double slot card.
Parameters DWDM MUX/DEMUX | Specification | Unit |
Channel wavelength | DWDM ITU channel | nm |
Extended wavelength | Other channels except pass channel | nm |
Channel spacing | 0.8 | nm |
Channel bandwidth | λc +/- 0.1 (minimum) | nm |
Insertion loss | ≤ 0.6 N (N Channel) | dB |
Channel uniformity | 2 | dB |
Isolation | ≥30 | dB |
Polarization dependent loss | < 0.15 | dB |
Polarization mode dispersion | < 0.1 | ps |
Connector | LC |
|
Products damaged due to human or non-use of other causes of improper,we promises one year warranty and lifetime maintenance,but the unauthorized disassembly equipment caused damage is not covered under warranty and returned within range. |
|
Under normal use,if there are product quality problems,or not work normally,we provide free repair or replacement service within one year;Within three years more than one year,we provide to collect the material cost,maintenance free. Repair warranty period of three years from the freight borne by each of the parties.After three years of warranty,the material cost,maintenance,freight(refers to the product of the two-way shipping to and from)shall be borne by the user. |
|
We promise that the product we provide can meet the performance requirements of users , and it is supplied by the user's sample request. |
