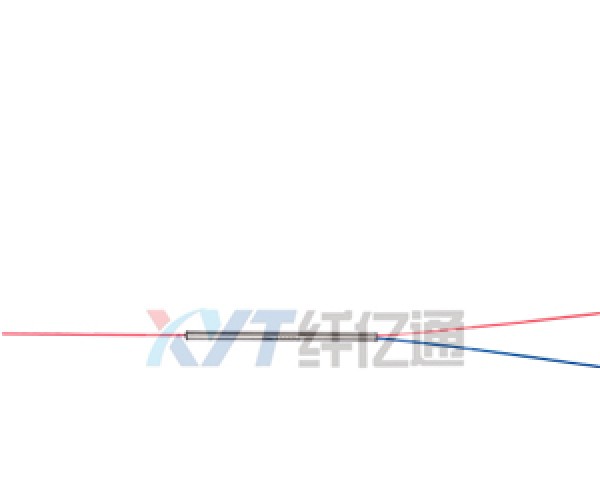

XYT-TECH Sharetop High Power Optical Coupler
- Product Features -
Low excess loss &low IL & low PDL
High Power
High stability and reliability
- Product Specification -
Fiber Amplifier
Fiber laser
Optical Lab
High Power Optical Coupler Specifications
Parameter | Value | |
Operating wavelength (nm) | 1550 or 1064 | |
Operating bandwidth (nm) | ±15 | |
Excess loss (dB) | ≤0.06 | |
Insertion loss (dB) | 50/50 | ≤3.4 |
40/60 | ≤4.4/2.6 | |
30/70 | ≤5.7/1.9 | |
20/80 | ≤7.6/1.25 | |
10/90 | ≤11.0/0.65 | |
5/95 | ≤14.2/0.4 | |
2/98 | ≤18.5/0.25 | |
1/99 | ≤21.5/0.2 | |
PDL (dB) | ≤0.1 | |
Handing Power (CW) (W) | 10,20W | |
Directivity (dB) | ≥55 | |
Operating temperature (℃) | 40 ~ +85 | |
Package Information
Configuration | 1x2 or 2x2 |
Fiber length | 1m, others on request |
Fiber Type | SMF-28e or HI1060FLEX |
Pigtail type | 250um bare fiber |
Dimensions(mm) | 70x12x8 |
Ordering Information
Type | Port | Wavelength(nm) | Coupling Ratio | Pigtail Type | Fiber Type | Length | Package | Power |
S= Single mode standard coupler | 1x2 2x2 | 1064 1550 | 1/99 2/98 3/97 …… 50/50 | 0=250um bare fiber | 0=HI1060F LEX 1=SMF-28 e | 1= 1m | 3x54 70x12x8 …. | 10W 20W |
|
